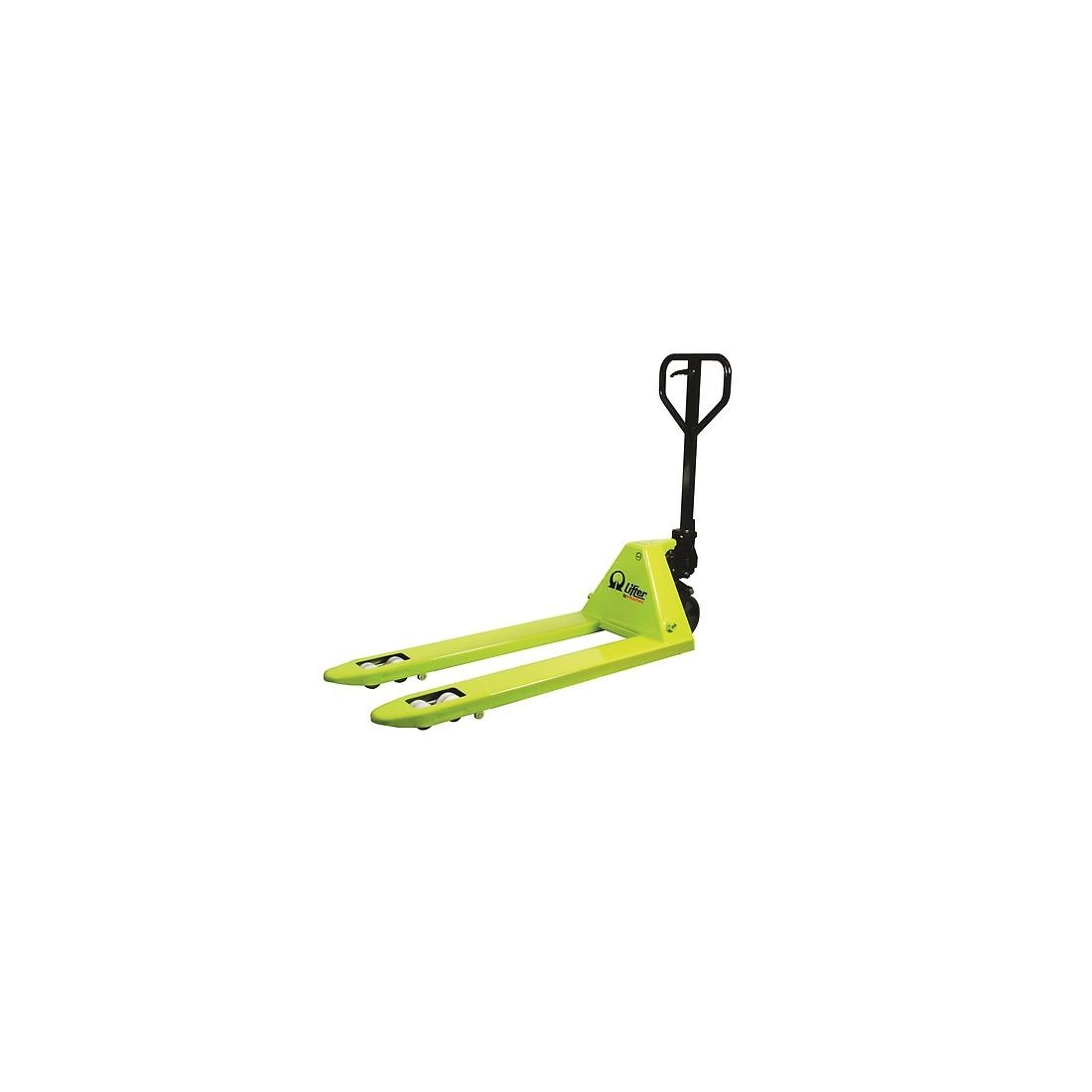

PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x685 SINGLE ROLLER

Name: PRAMAC LIFTER HAND PALLET TRUCK GS25S2 1220x685 SINGLE ROLLER
Brand: LIFTER
SKU: TEB65AVY100
Price: 500 EUR
Availability: InStock

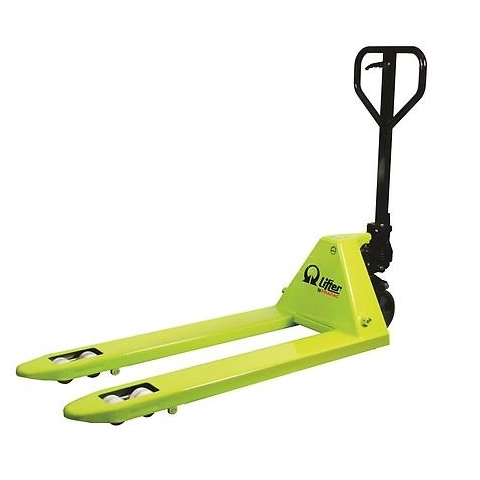

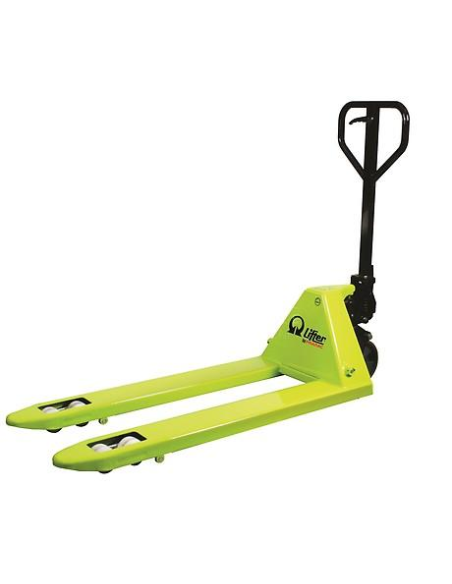

PRAMAC GS25S2 - Hand pallet truck with a start and exit roller and with a load capacity up to 2500 Kg

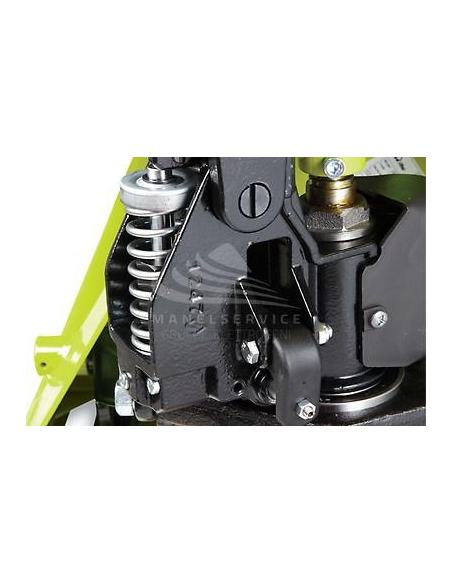

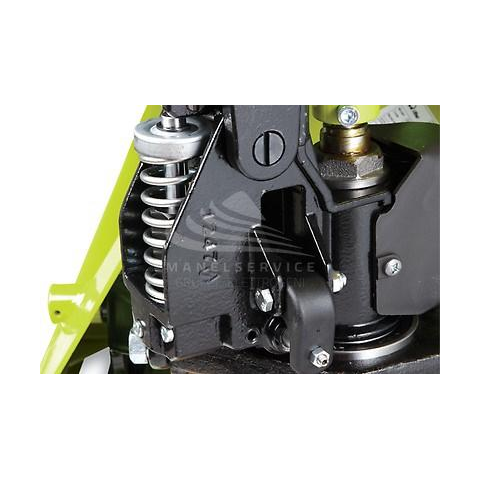

PRAMAC GS25S2 - The maximum pressure valve automatically stops the forks when is exceeded maximum load capacity

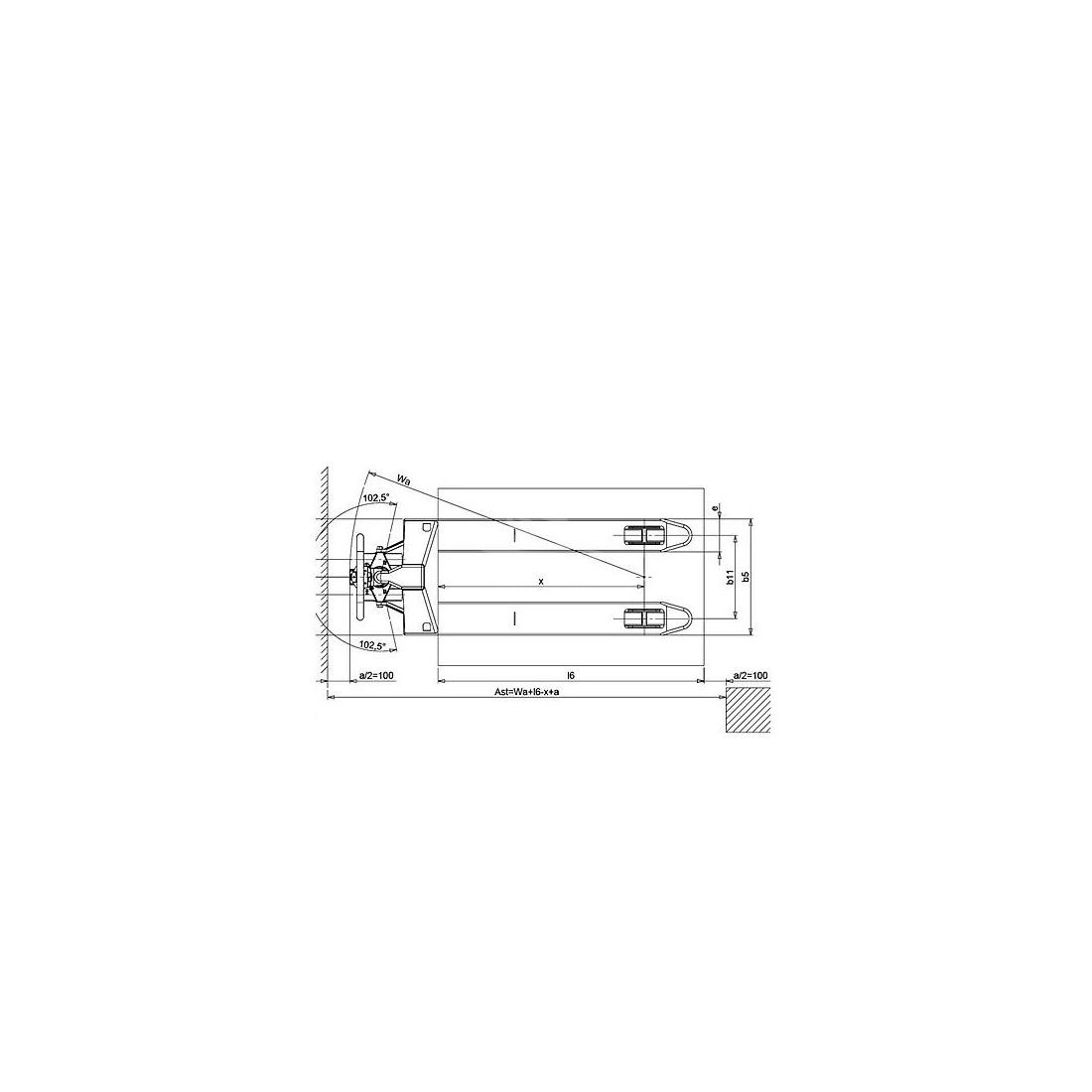

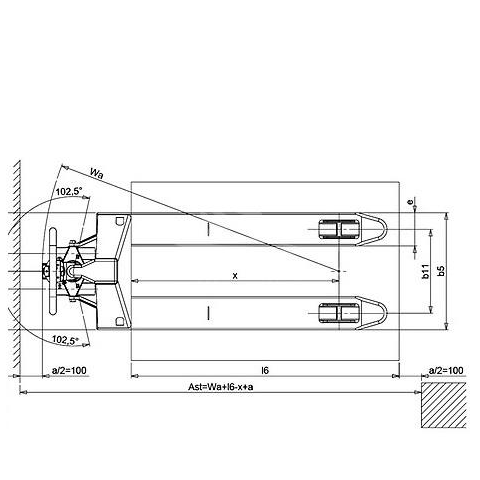

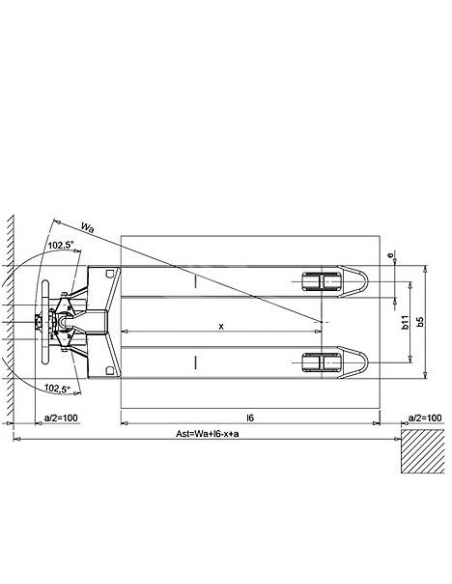

PRAMAC GS25S2 - Technical drawing with top view

Reference TEB65AVY100

Drive: Manual
Operator type: Pedestrian
Load capacity: 2500 Kg
Quantity rear wheels: 2
Lift height: 115 mm
Overall lenght: 1620 mm
Overall width: 685 mm
Width fork: 150 mm
Lenght fork: 1220 mm
Distance between fork arms: 685 mm
Aisle width: 1855 mm
Turning radius: 1437 mm

Download Scheda tecnica GS25S2 1220x685 Download Technical data GS25S2 1220x685 Download Données techniques GS25 1220x685 Download Technische daten GS25S2 1220x685

Product Details
Description

Drive: Manual
Operator type: Pedestrian
Load capacity (Kg): 2500
Load centre distance (mm): 610
Load axle to end forks (mm): 1002
Wheel base (mm): 1262
Service weight (Kg): 69
Axle load, laden rear (Kg): 1798
Axle load, laden front (Kg): 771
Axle load, unladen front (Kg): 46
Axle load, unladen rear (Kg): 23
Tyres: front wheels: POLY.I. / NYLON
Tyres: rear wheels: NYLON
Diameter steering wheels (mm): 200
Width steering wheels (mm): 55
Diameter load rollers (mm): 82
Width load rollers (mm): 82
Quantity rear wheels: 2
Rear balancing axle: No
Tread front (mm): 155
Tread rear (mm): 535
Lift height (mm): 115
Height of tiller in drive position max (mm): 1160
Height lowered (mm): 85
Overall lenght (mm): 1620
Lenght to face of forks (mm): 400
Overall width (mm): 685
Thickness fork (mm): 55
Width fork (mm): 150
Lenght fork (mm): 1220
Distance between fork arms (mm): 685
Ground clearance at centre of wheelbase (mm): 30
Aisle width (mm): 1855
Turning radius (mm): 1437
Lifting speed laden (strokes): 13
Lifting speed unladen (strokes): 13
Weigher: No

Brand

GS series is a suitable practical solution meeting all the needs of manual handling.
The GS PRO pallet truck is equipped as a standard with a start and exit roller and a more ergonomic handle.

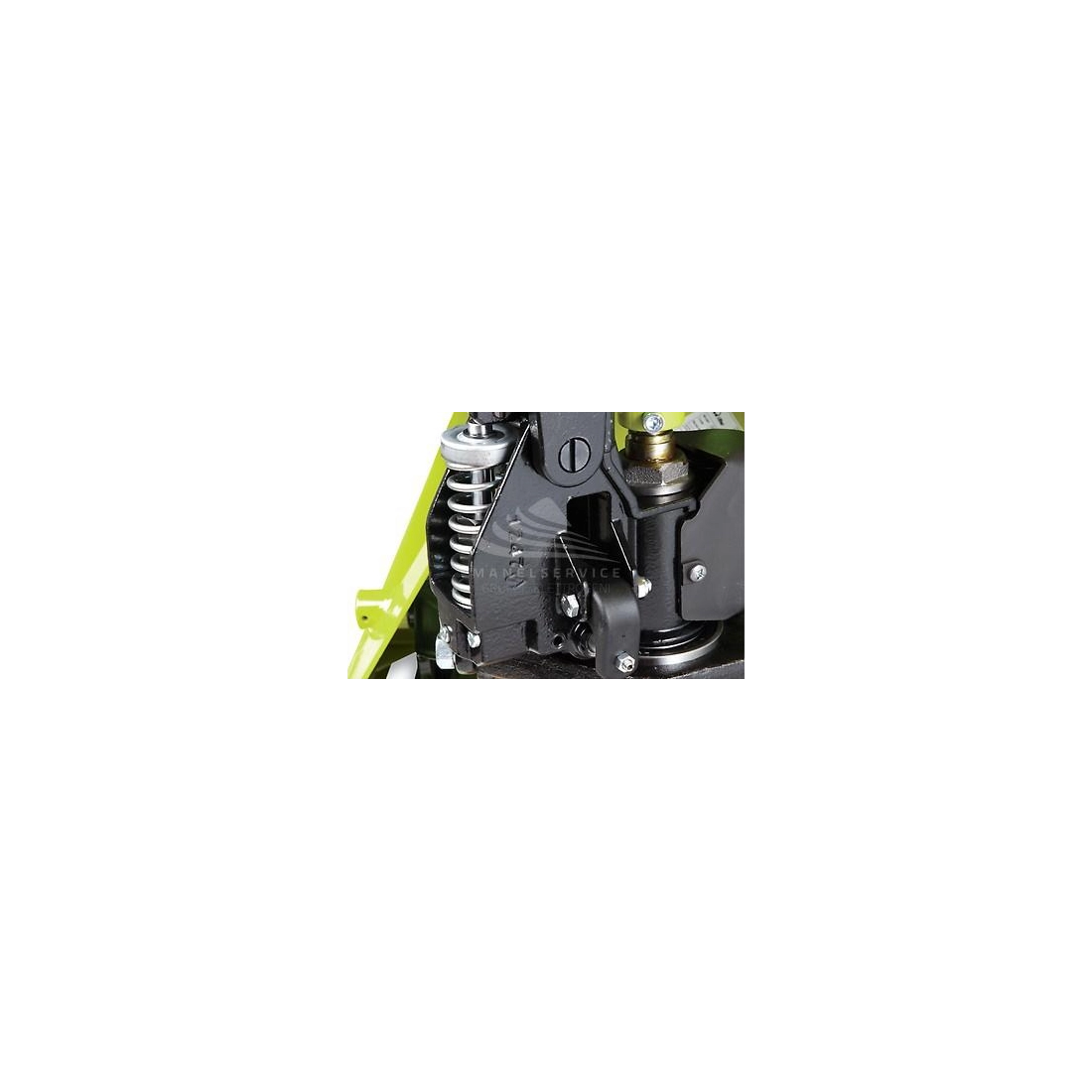

Maximum pressure valve
When the maximum load capacity is exceeded, oil pressure exceeds its maximum limit and the valve automatically locks the forks. Thus possible structural damage is avoided.

Varnishing
Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

The images are purely indicative.
