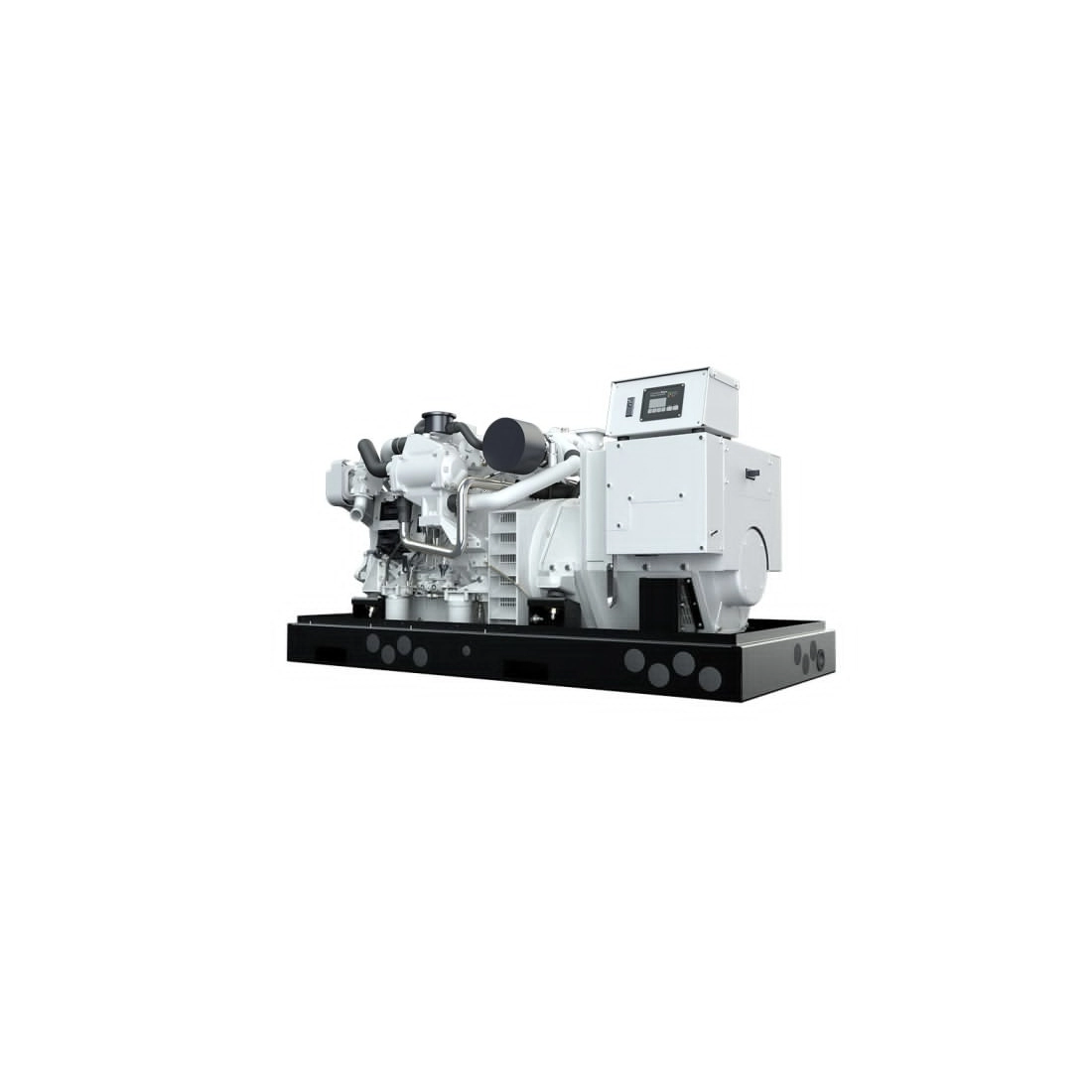

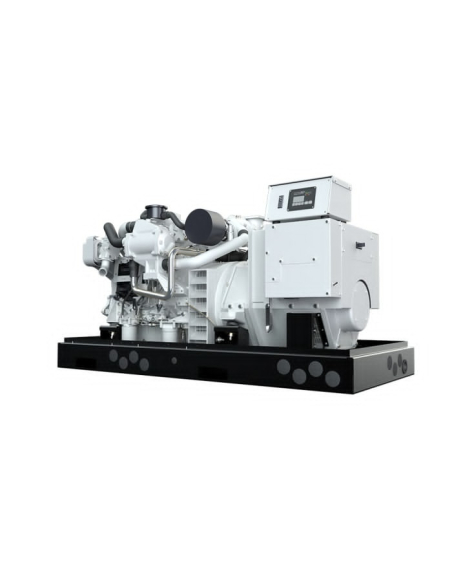

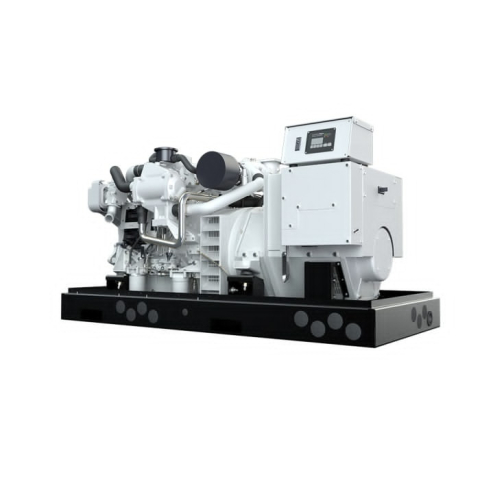

CUMMINS ONAN QD Marine Generator Three-phase Stage V 40KW

CUMMINS ONAN QD Three-phase Marine Generator Stage V

The CUMMINS ONAN QD is a three-phase marine generator designed to deliver exceptional performance and maximum reliability even in the most demanding conditions. With an output of 40 kW and Stage V certification, this generator is the ideal choice for medium-sized recreational and commercial vessels.

Key Features CUMMINS ONAN QD:

Cummins B4.5 engine: The beating heart of the generator, this 4-cylinder, turbocharged, water-cooled diesel engine guarantees power, durability and low fuel consumption.

Flexibility: Available in both 50 Hz and 60 Hz versions, the QD adapts to different requirements and international standards.

Compact Design: With compact dimensions (1782x833x1036 mm) and a weight of only 1156 kg.

Quiet: The acoustic cab version reduces noise to a minimum, ensuring acoustic comfort on board.

Easy maintenance: One-sided service access facilitates routine maintenance.

Cummins Onan Quality: With over 100 years of experience in the marine industry, Cummins Onan is synonymous with reliability and durability.

why choose Cummins ONAN QD?

High performance: High power and torque to handle any load.

Reliability: Designed to work in marine environments, withstanding vibration, humidity and temperature changes.

Regulatory compliance: Stage V certification to ensure compliance with the latest emissions regulations.

Versatility: Suitable for different types of boats, from recreational to commercial.

Technical specifications CUMMINS ONAN QD:

Length: 1782 mm
Width: 833 mm
Height: 1036 mm
Total weight: 1156 kg
Frequency: 50 Hz
Epa Tier 3 - Stage V certification
Engine model: 4-stroke, 4-cylinder, turbocharged, water-cooled marine diesel
rpm: 1500
Voltage: 110/190
Amps: 151.9
Three-phase continuous use power: 50 Kva
Three-phase continuous use power: 40 Kw

If you're looking for a boat product like the Cummins Onan QD marine generator, but with different technical features, then you can browse the entire catalog of marine generators.

Non-binding images and technical data.
