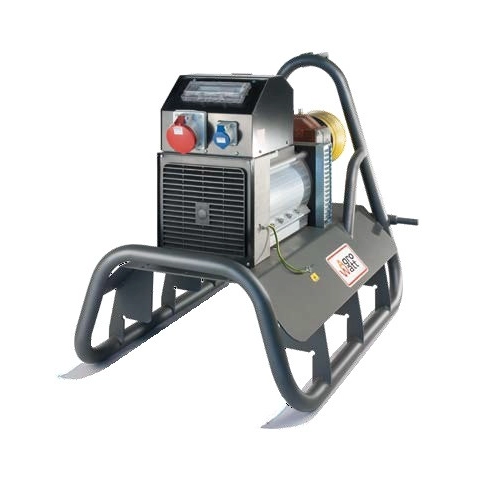

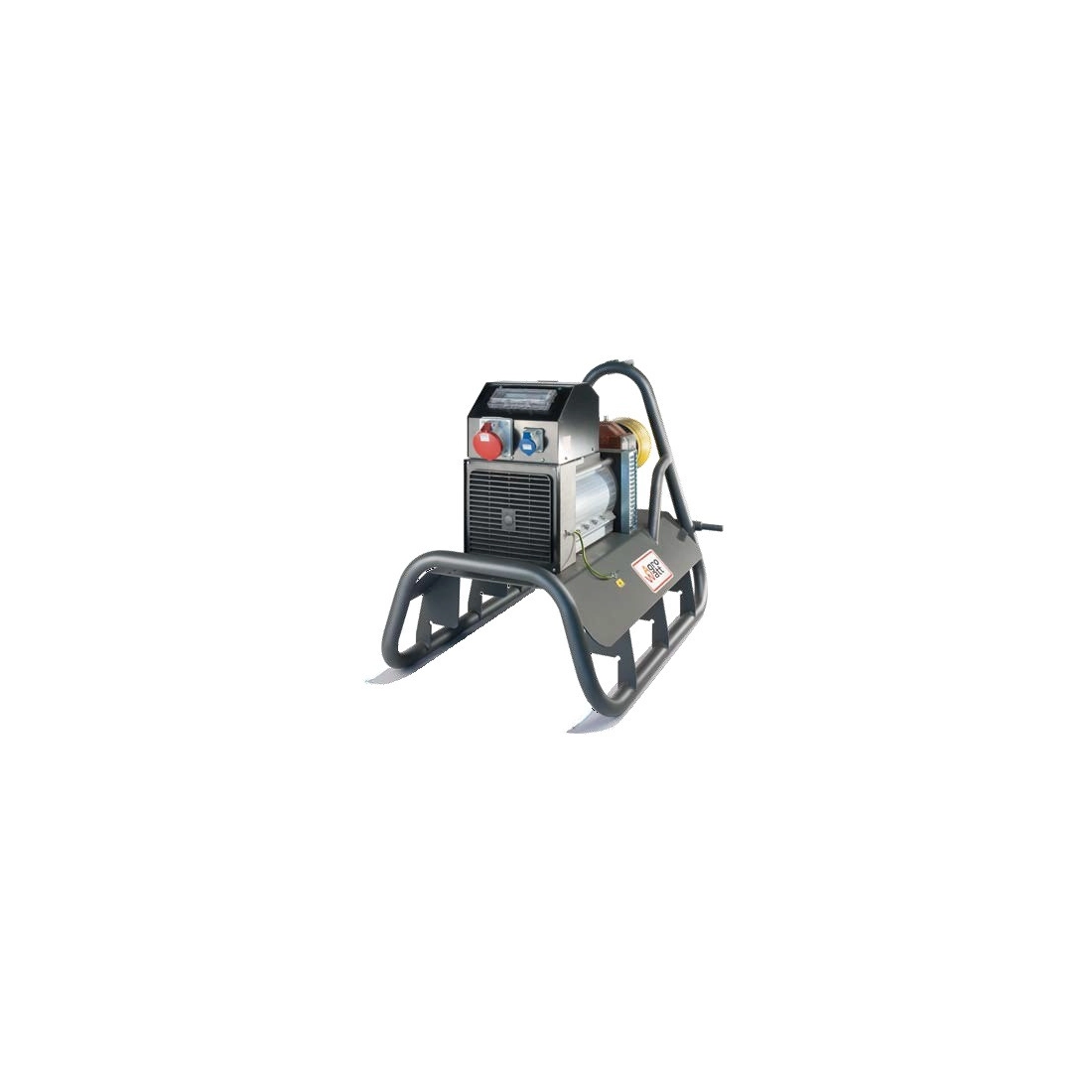

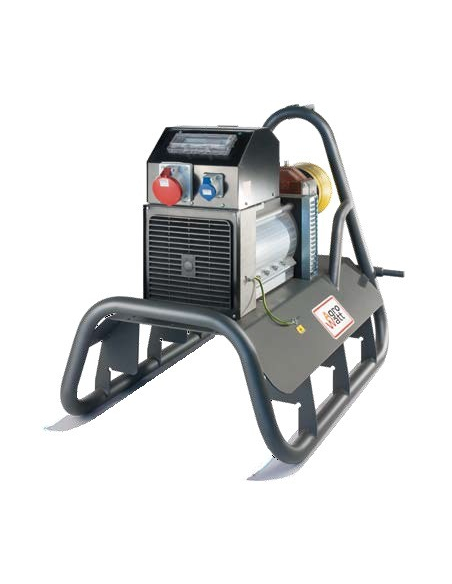

AGROWATT AWB 4-32X PTO Generator Single Phase/ Three Phase 32.4 kVA AVR
113904
Phase type: Single-phase / Three-phase
Engine revs (rpm): 1500
Minimum tractor power (Hp): 95
Maximum single phase power (kVA): 13
Maximum power Three-phase (kVA): 32.4
PTO rpm: 430
Voltage (V): 230 / 400
Frequency (Hz): 50
Length (mm): 1135
Width (mm): 640
Height (mm): 915
Weight (Kg): 248
AVR
- Phase
- Single phase / Three phase
- Maximum power single phase (KVA)
- 13
- Maximum power three phase (KVA)
- 32.5
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- Engine rpm (rpm)
- 1500
- Poles
- 4
- Protection degree
- IP44
- PTO speed (round/min)
- 430
- Minimum tractor output (HP)
- 95
- Transmission ratio
- 1 : 3.5
- Length (mm)
- 1135
- Width (mm)
- Height (mm)
- 915
- Dry weight (Kg)
- 248
- Brushes
- No
- Voltage regulator
- AVR
- Brand
-
- For outdoor applications (field and home), in case of blackouts and in areas not served by the power grid
- Supplied with multiplier kit and protection, support with 3-point attachment (patented design), electrical panel with multifunction digital display for real-time data reading (voltmeter, frequency meter, ammeter, hour meter)
- Durability over time and maximum protection (thermal-magnetic and differential)
- Warranty 24 months
- Easy packaging and subsequent storage

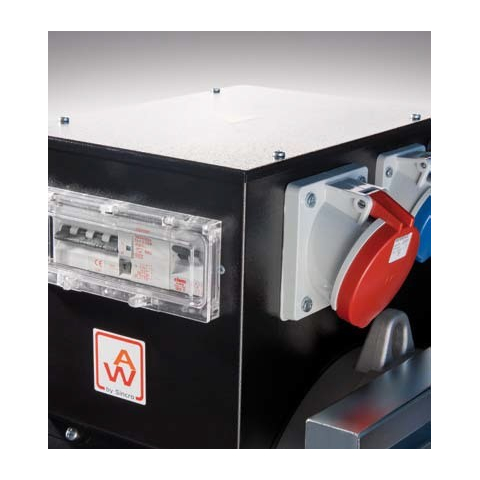

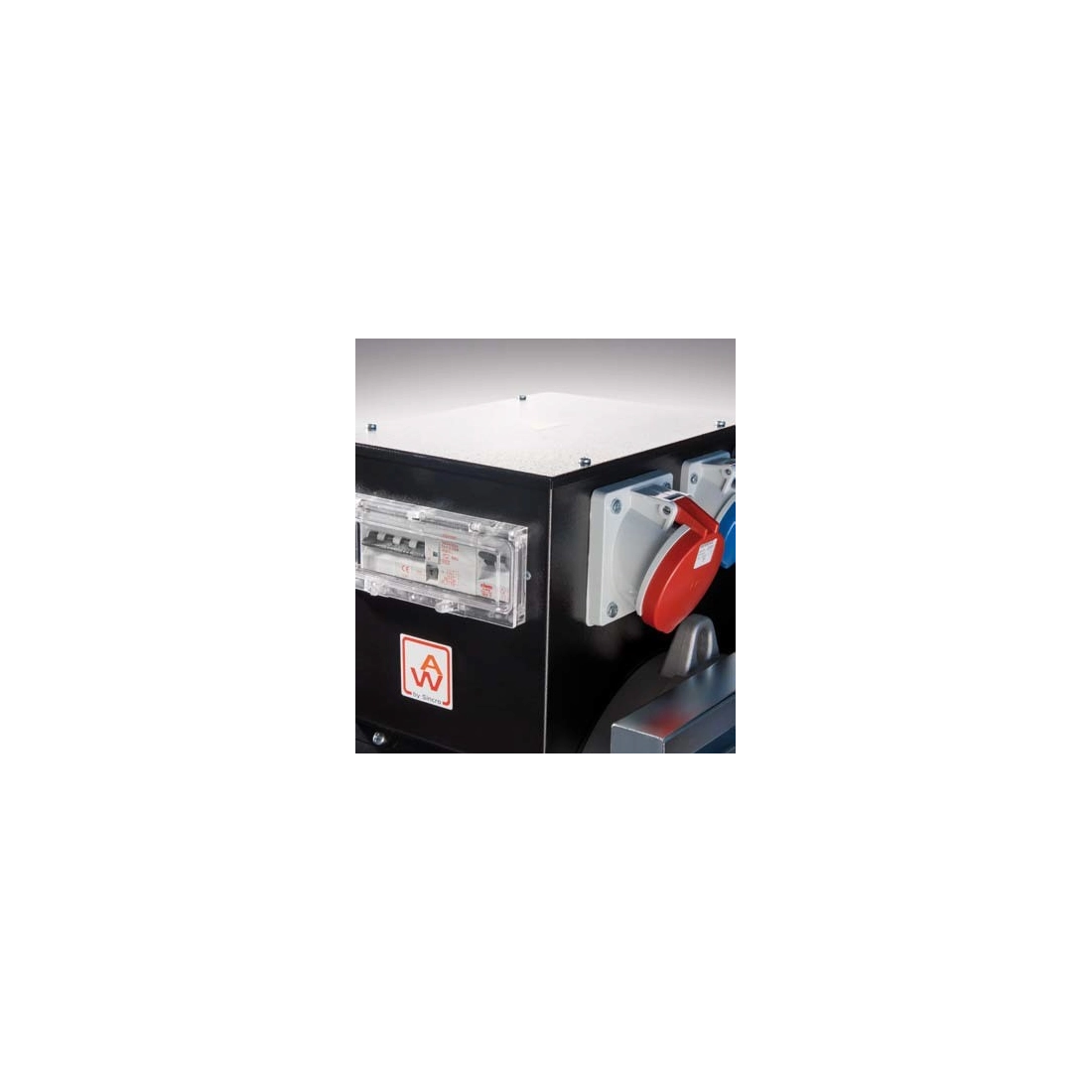

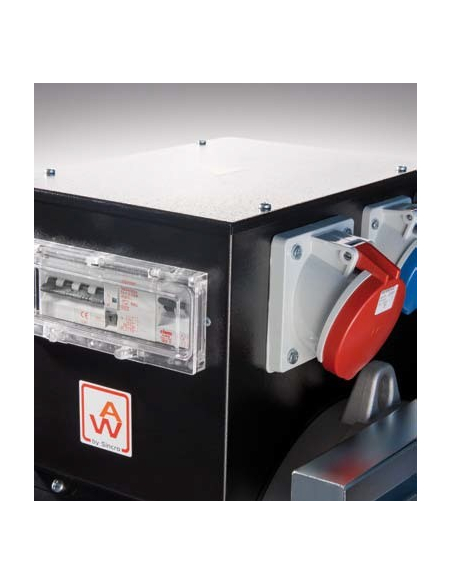

Control Panel with:
• 1 CEE 400V (3P+N+E) 63A
• 1 CEE 230V (2P+E) 32A
• 1 schuko
• single phase thermal protection
• 4-pole magnetothermic switch + earth leakage breaker (ld=0,03A) + 2 pole magnetothermic switch + IP65 cover
• voltmeter + frequencymeter + ammeter + hour counter (digital measurement instrument)
Non-binding images and technical data.
