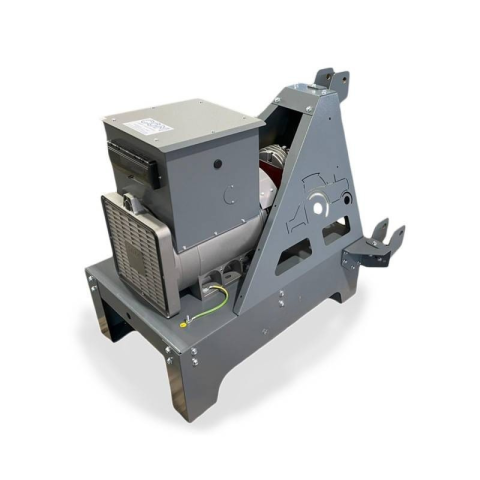

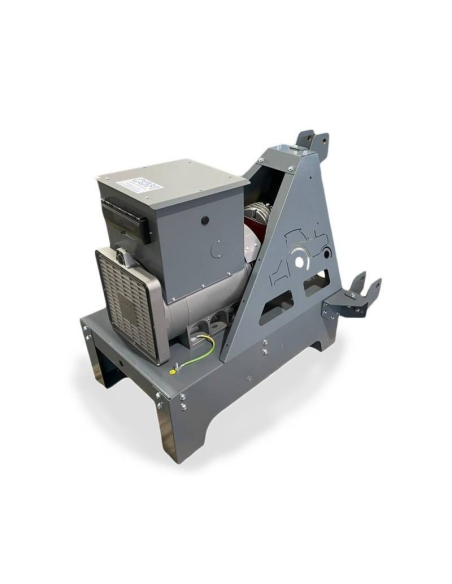

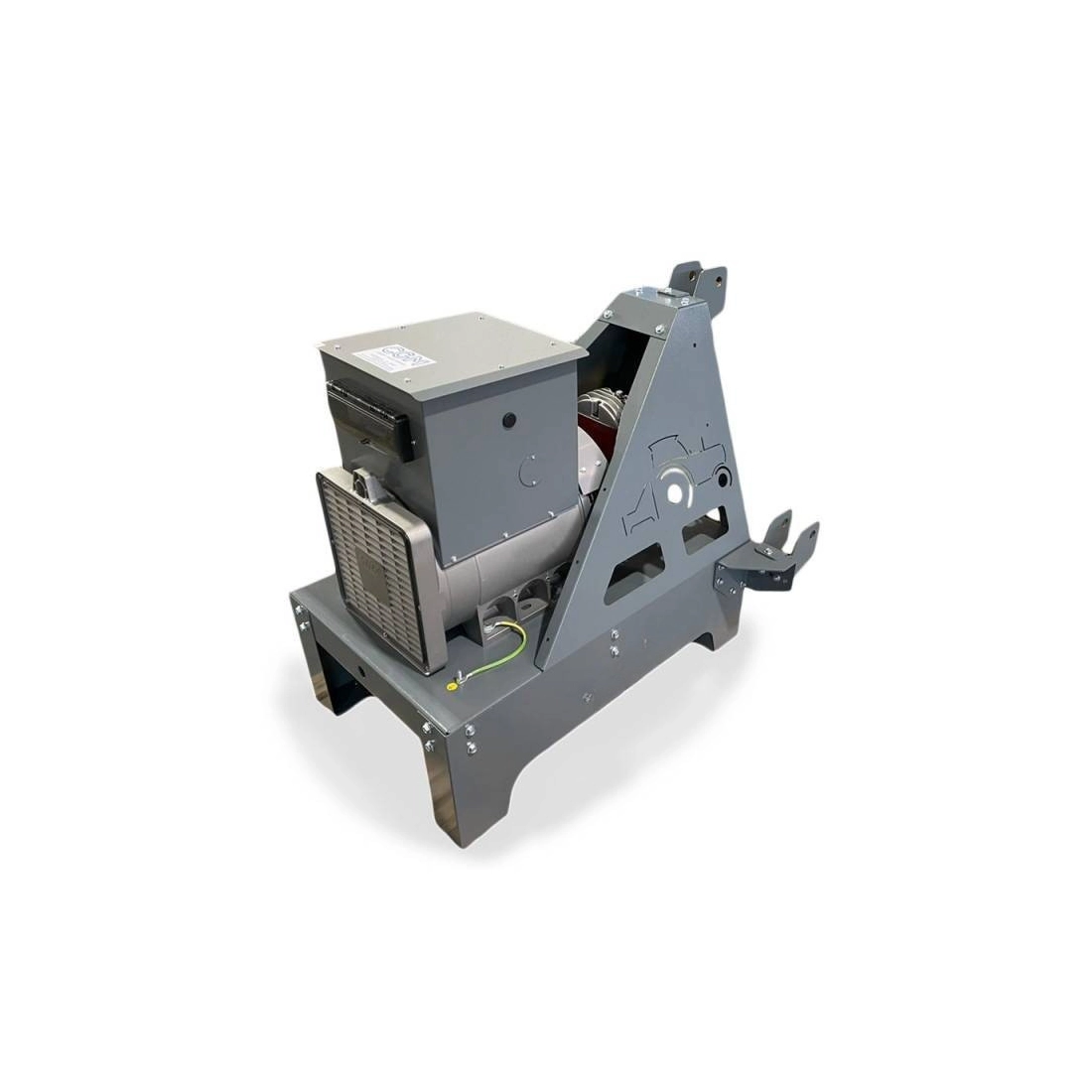

CARDAN GENERATOR SINGLE-PHASE/THREE-PHASE 27KVA AVR

  SINGLE-PHASE / THREE-PHASE 27KVA AVR PTO GENERATOR

  This single-phase / three-phase PTO generator with 3000 rpm tractor hitch delivers 27KVA of power and is complete with an AVR voltage regulator.

The AVR regulator stabilizes the voltage and prevents damage to sensitive connected devices. The PTO generator is highly reliable as it is built and designed using top-quality materials.

The PTO generator is easy to transport, install, and position thanks to its compact size; this model is ideal for mounting on a tractor. The shaft-driven generator has a required tractor power of 45 HP and a PTO speed of 440 rpm.

The 27 KVA generator is a professional tractor unit, making it a top choice compared to its competitors. The generator has a sturdy structure with a protective frame.

Tractor-mounted generators are primarily designed for agricultural businesses, farms, livestock farms, and mountain pastures, but they can easily adapt to any emergency situation.

Technical characteristics:

Phase type: Single-phase / Three-phase
Continuous power: 27 kVA
Continuous power: 21.6 kW
Emergency power: 29.7 kVA
Emergency power: 23.7 kW
Voltage: 230 / 400 V
Frequency: 50 Hz
Engine speed: 3000 rpm
Required tractor power: 45 hp
PTO speed: 440 rpm
Gear ratio: 1:6.9
Multiplier oil capacity: 0.5 Lt
Alternator: Linz, self-excited, with brushes
Voltage regulator: AVR
Length: 950 mm
Width: 950 mm
Height: 900 mm
Weight: 135 kg

Sockets:
- 1 CEE socket 63A 5P 400V and 1 CEE socket 16A 3P 230V
- Switch, differential circuit breaker, and voltmeter
