Cold injection for heat-sensitive resins
Max flow rate: 2.2 l/m
Motor power: 0,75 Kw
Max pressure: 250 bar
Power supply: 230 V 50 Hz
Length: 400 mm
Width: 440 mm
Height: 500 mm
Weight on trolley: 23 Kg
Minimum requirement generator set: 4.0 Kw Single-phase

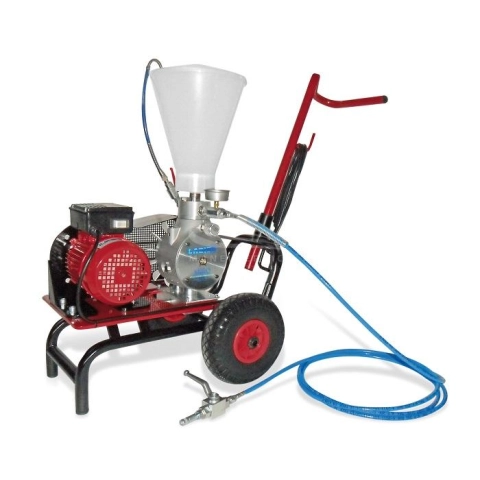

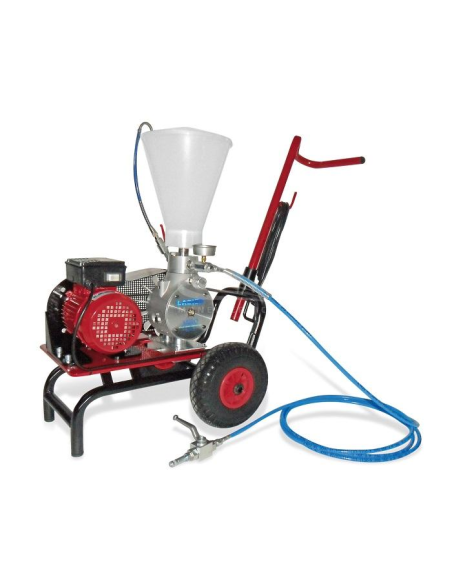

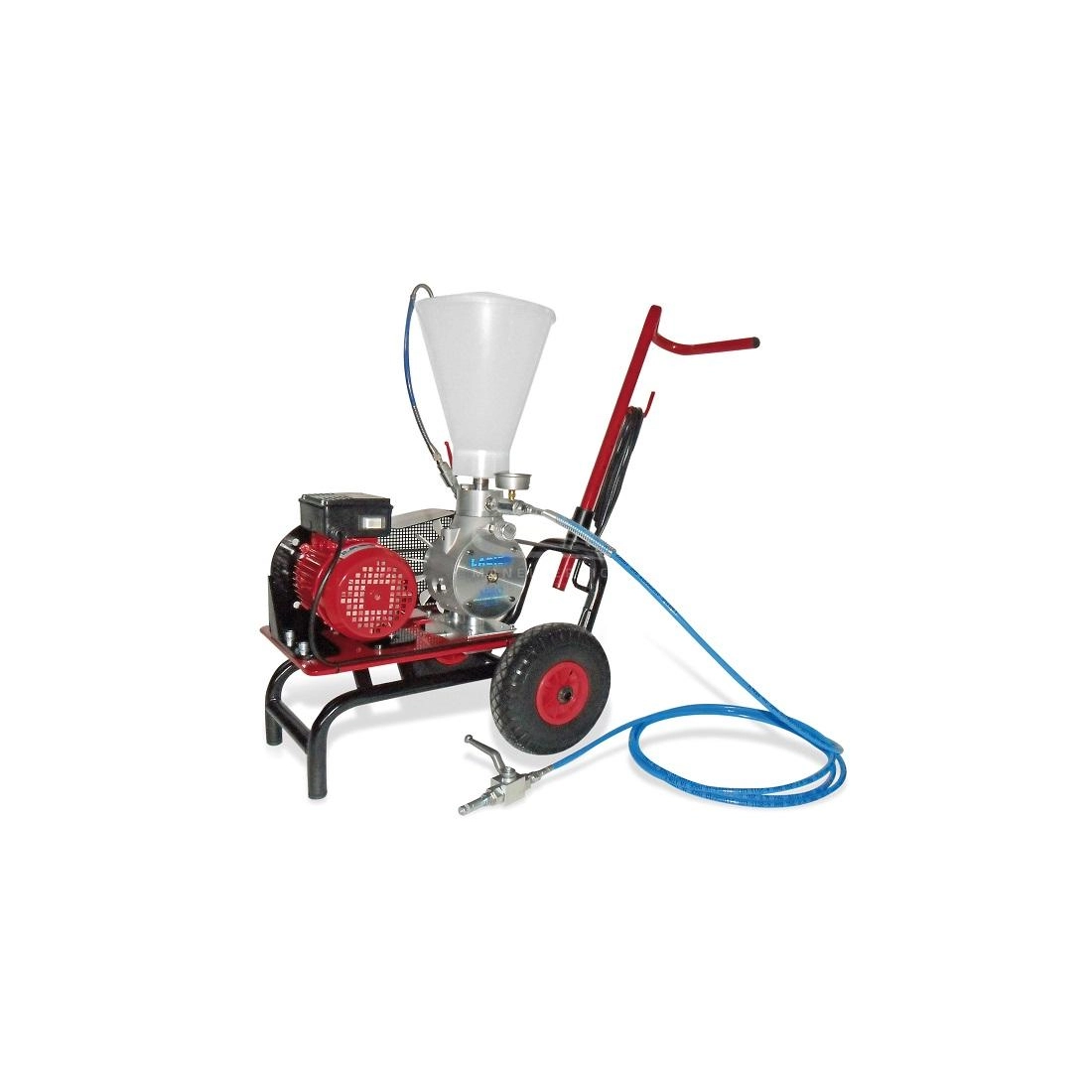

The LARIUS MIRÒ equipment is referred to as the "electric diaphragm pump".
An electric diaphragm pump is a device used for high pressure painting without the use of air (hence the term "airless").
The pump is driven by an electric motor (burst) coupled to an eccentric shaft. The shaft acts on the hydraulic piston which, by pumping oil from the hydraulic box, sends the suction membrane into fibrillation.
The movement of the membrane creates a depression.
Product complete with:
- High pressure hose 3/16'' connected M16x1.5 mt. 5
- Ball valve
- Connection M10x1
- High pressure horizontal pressure gauge, fitting M16x1.5 M+F.G.
Double concentric scale 0-400 Bar and 0-5800 ps
