FENZI G5 Tank 1500LT

FENZI G5 Cistern 1500LT

FENZI G5 Cistern 1500LT

FENZI G5 Cistern 1500LT: Complete solution for the safe storage of diesel fuel

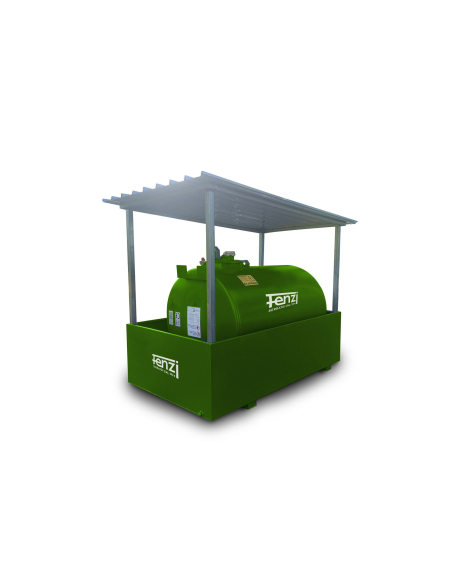

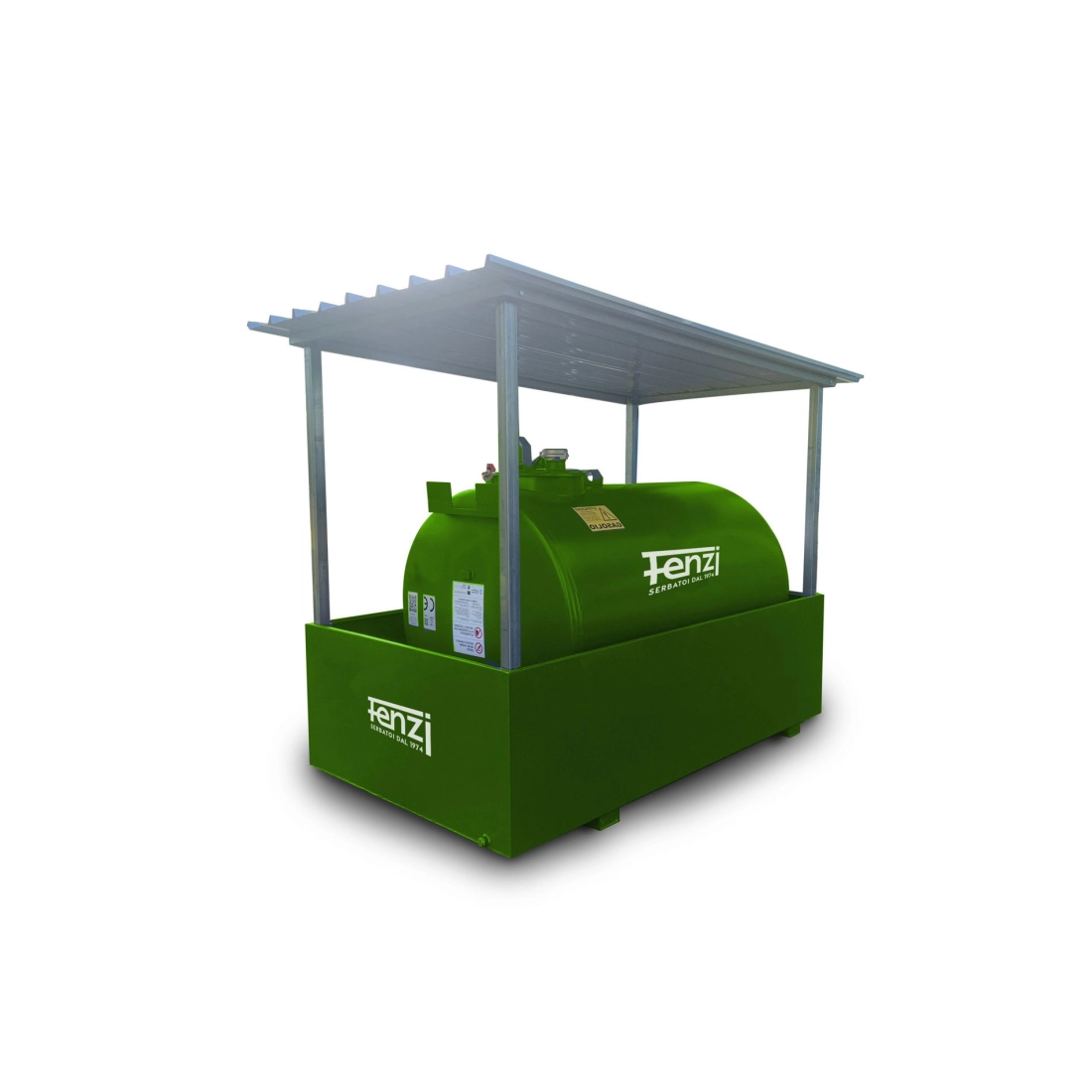

The FENZI G5 1500LT is an above-ground diesel tank designed to meet the needs of heating and powering generator sets.
Made in compliance with Italian regulations (DM 31/07/1934, DM 28/04/2005, DM 13/07/2011 and DM 22/11/2017),
it offers a complete and safe solution for storing diesel fuel.

Fenzi materials:

Fenzi Cistern: the heart of the system, where diesel fuel is stored safely and reliably.
110% containment basin: capable of retaining the entire contents of the tank in the event of a spillage, guaranteeing maximum environmental safety.
Fenzi: 90% load limiting valve: prevents overloading of the tank, preventing accidents and damage.
External float level indicator: makes it easy to monitor the level of residual diesel fuel in the Fenzi tank.

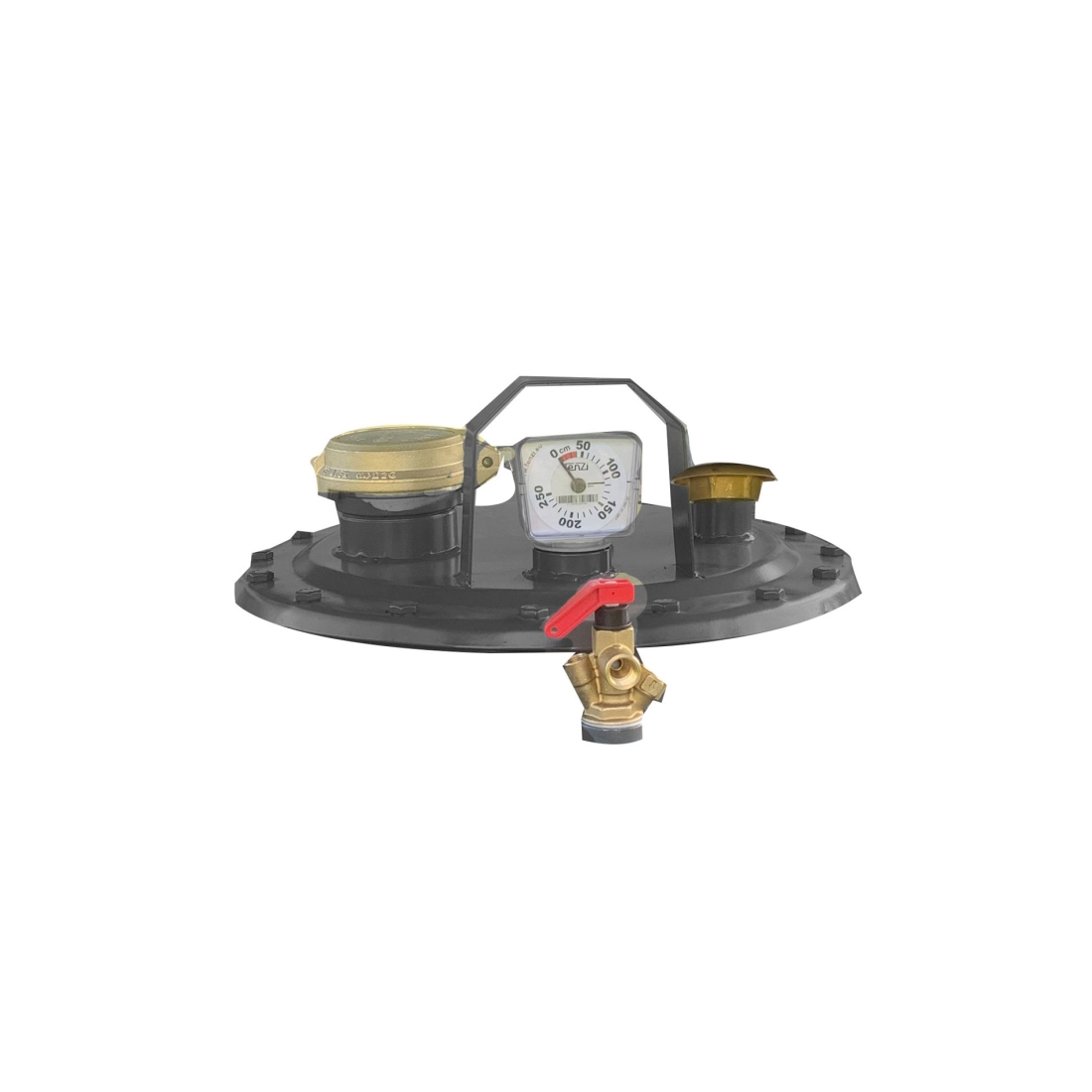

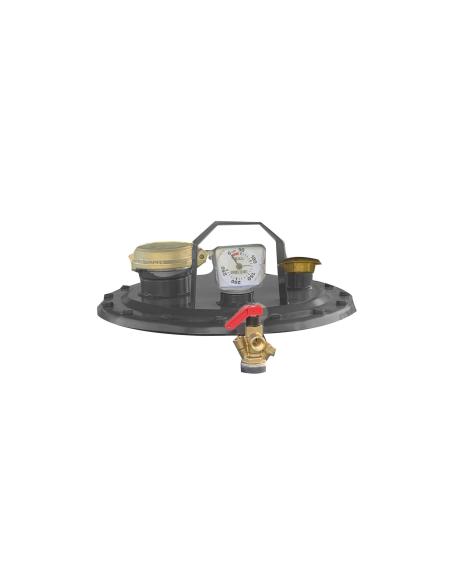

Fenzi: Manhole Ø 420 mm: easy access for inspection and maintenance inside the tank.
Eyebolts for vacuum lifting: facilitate transport and positioning of the Fenzi tank.
Unloading sleeve for cleaning: allows the tank to be easily emptied for cleaning and maintenance.
Earthing socket and equipotential bonding: ensures the electrical safety of the system.
External 1" suction connection with non-return valve: enables quick and safe withdrawal.
1" ball valve: regulates the flow in and out of the tank.
1" galvanised steel pipe with flexible end piece: connects the cistern to the diesel delivery system.

Fenzi safety:

110% containment basin to retain any leaks
Drain sleeve for water collection
Venting funnel with flame breaker mesh
Compliance with Italian regulations

Technical characteristics Fenzi Tank 1500LT

Capacity: 1500LT
Length: 2300 mm
Width: 1300 mm
Height: 2100 mm
Intake Inches: 1"

If you are looking for a product like FENZI G5 1500LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
