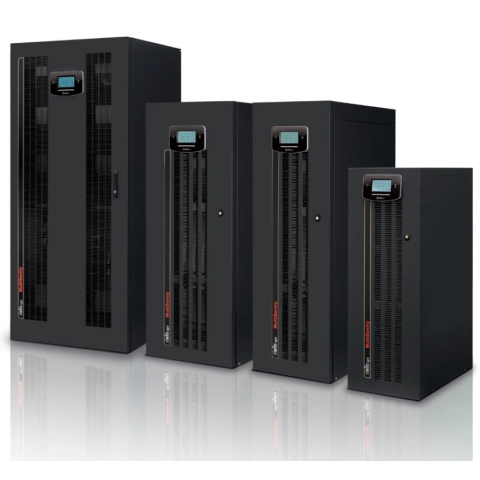

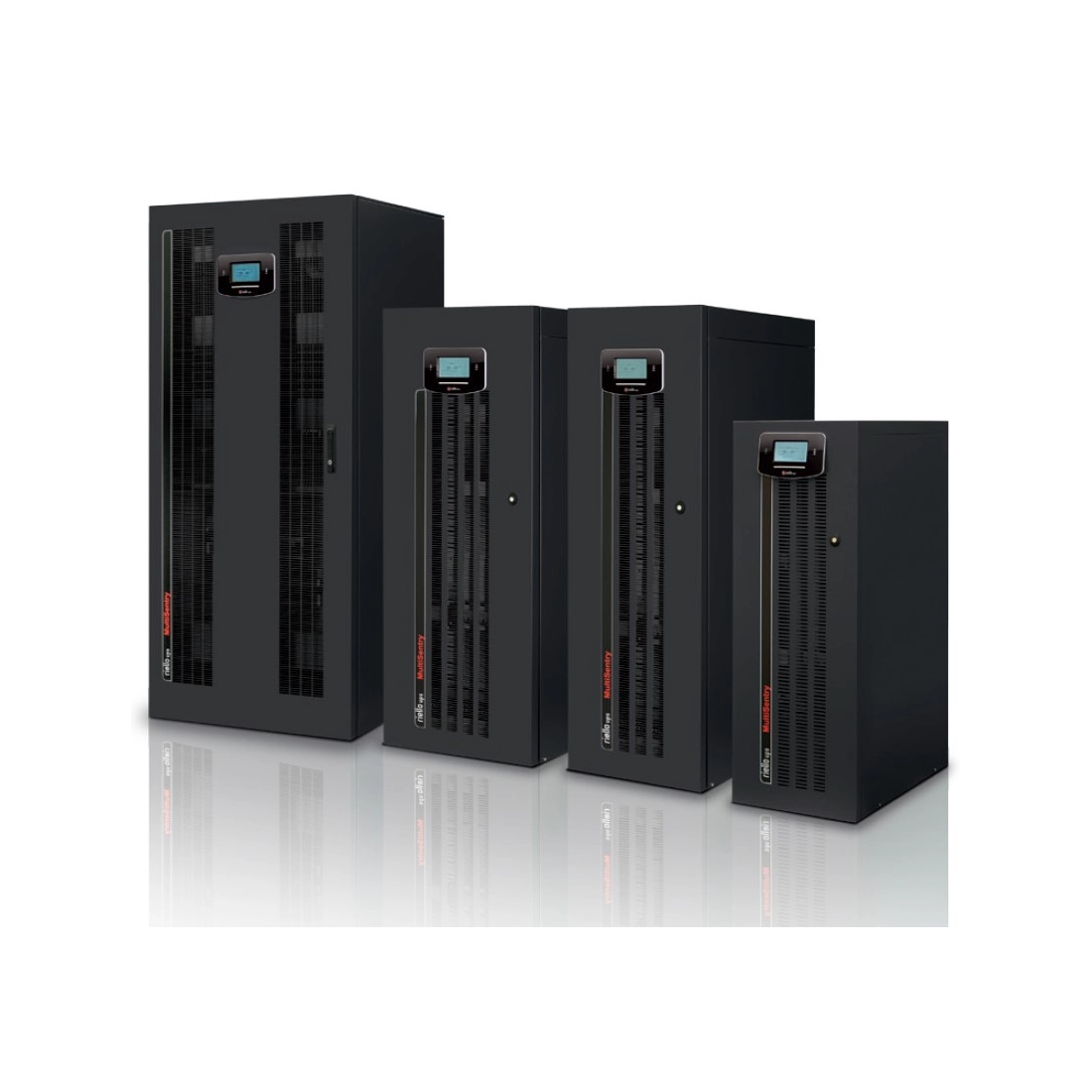

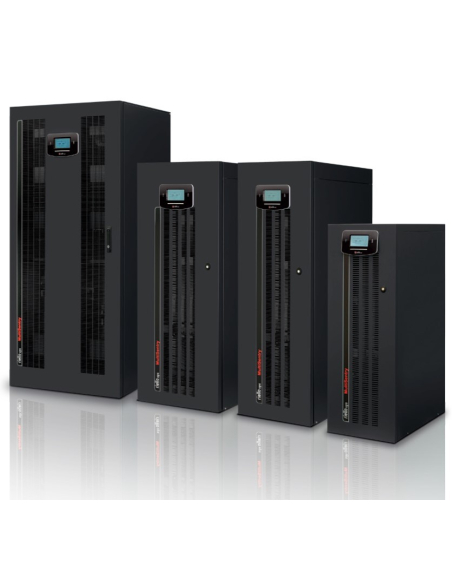

RIELLO MST 125 T4 MULTI SENTRY UPS 125 KVA
RIEEMSTM13ANB00
VERSION WITH SEPARATE BATTERY BOX
ENTRANCE
Rated voltage: 380-400-415 Vac three-phase + N
Nominal frequency: 50/60 Hz
Frequency tolerance: 40 ÷ 72 Hz
Power factor at full load: 0.99
Current distortion: THDI ? 3%.
BY-PASS
Rated voltage: 380-400-415 Vac three-phase + N
Number of phases: 3 + N
Voltage tolerance: 180 ÷ 264 V (selectable)
Rated frequency: 50 or 60 Hz (selectable)
Frequency tolerance: ±5 (selectable)
EXIT
Rated power: 125 kVA
Active power: 112.5 kW
Power factor: 0.9
Number of phases: 3 + N
Rated voltage: 380-400-415 Vac three-phase + N (selectable)
Static variation: ± 1%
Dynamic variation: ± 3%
Crest factor: 3 : 1 Ipeak/Irms
Voltage distortion: ? 1% with linear load / ? 3% with distorting load
Frequency: 50/60 Hz
Frequency stability in battery: 0.01%.
Supported battery type: VRLA AGM/GEL/NiCd/Li-ion/Supercaps
recharge time: 6 hours
Weight without batteries (kg): 250
Depth: 840 mm
Width: 650 mm
Height: 1600 mm
Communication: 3 slots for communication interface /RS232/USB
Ambient temperature: 0 °C/ +40 °C
Relative humidity: 90% non-condensing
Colour: Dark grey RAL 7016
Noise level at 1 meter: < 63 dB(A)
Degree of protection: IP20
Smart Active Yield: up to 99%
With wheels for handling
- Phase
- Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 380-400-415 + N
- Protection degree
- IP20
- Power (VA)
- 125000
- Battery type
- VRLA/AGM/GEL/NiCd/Liion/Supercaps
- Operating temperature (°C)
- 0 °C / +40 °C
- Acoustic pressure
- 63 dB(A) at 7 m
- Length (mm)
- 840
- Width (mm)
- 650
- Height (mm)
- 1600
- Dry weight (Kg)
- 250
- Colour
- Grey
