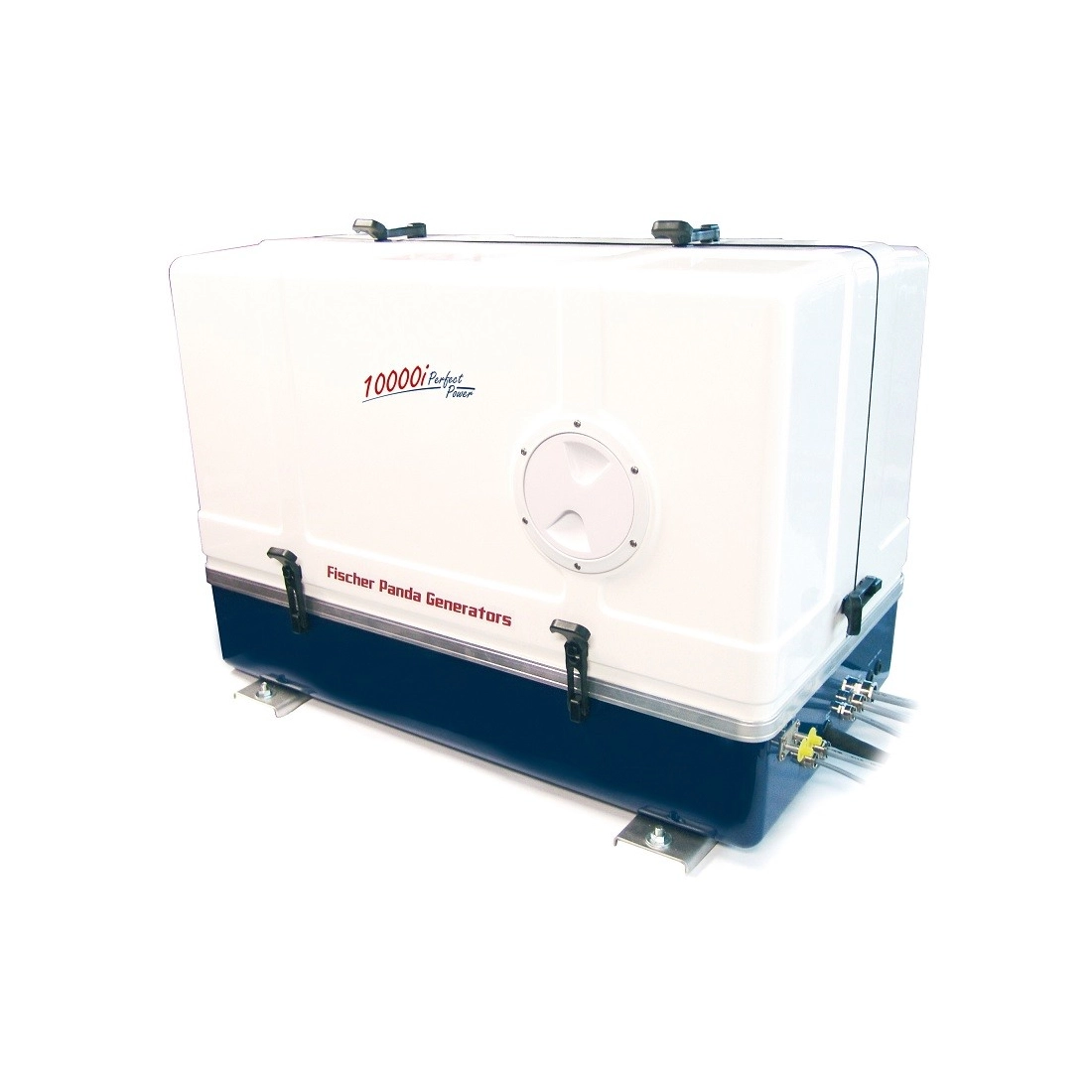

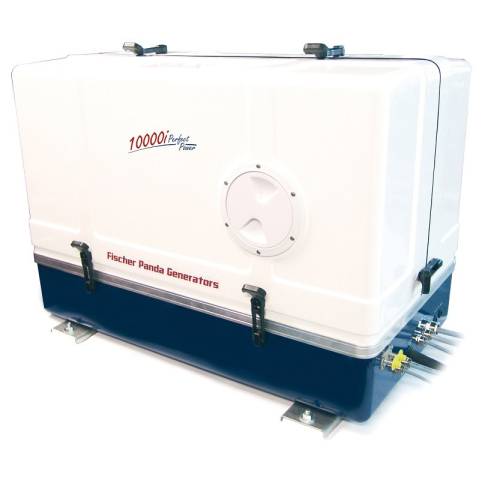

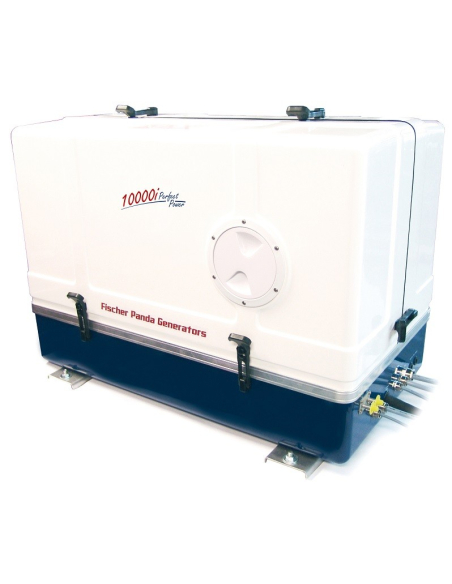

FISCHER PANDA PVMV-N 10000x 8 kW Vehicole Generator
0013313
Frequency [Hz] 50
Generator manufacturer Fischer Panda GmbH
Isolation class of windings H
Nominal Speed [rpm] 3000 rpm
Voltage Regulation xControl
Voltage Tolerance ±3%
Power rating factor Cos Pi 0.85
Engine Speed [rpm] 3000
Nominal Voltage in Volt 230
Nominal Performance in kW)1) 8
Nominal Performance in kVA1) 9.4
Continuous Performance in kW1) 7.2
Continuous Performance in kVA1) 8.5
Number of Phases 1
Frequency [Hz] 50
Engine Manufacturer Kubota (KU)
Engine Type Z602
No. Cylinders 2
Displacement [cm3] 599
Starter System 12V (24V Optional)
Sound Cover Type GFK (Glass fibre reinforced polyester)
Sound Insulation Material 4DS

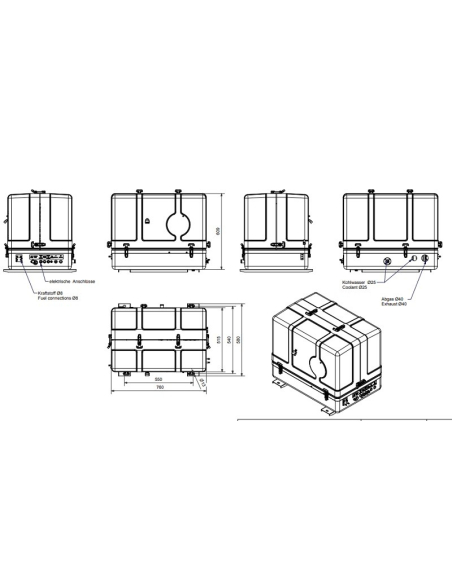

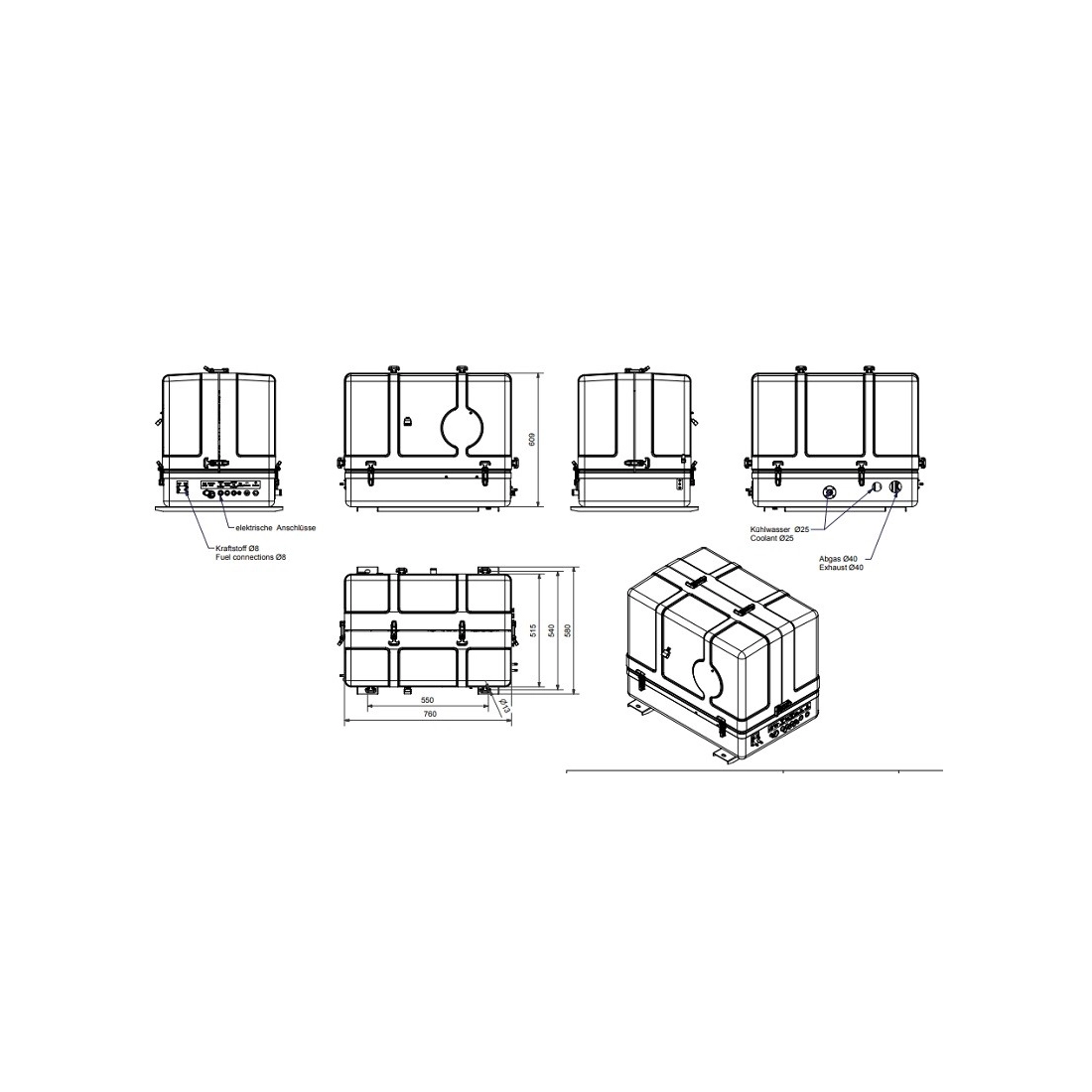

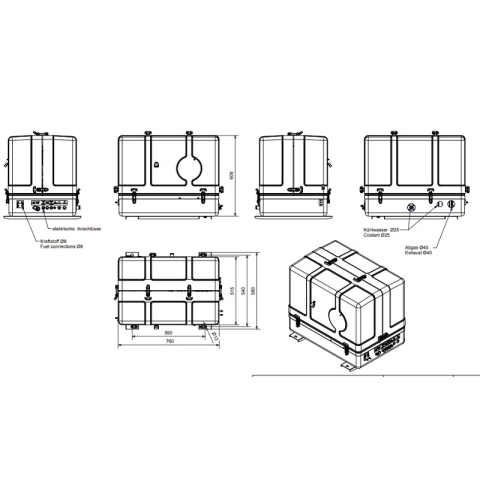

Lenght: 760 mm
Width: 580 mm
Height: 609 mm
Weight: 195 Kg
- Phase
- Single phase
- Maximum power single phase (KW)
- 8
- Continuous power single phase (KW)
- 7.2
- Maximum power single phase (KVA)
- 9.4
- Continuous power single phase (KVA)
- 8.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine rpm (rpm)
- 3000
- Starting system
- Electric 12 Vcc
- Engine capacity (cm³)
- 599
- Number cylinders
- 2
- Cooling
- Water
- Motor insulation class
- H
- Acoustic pressure
- 52 dB(A) at 7 m
- Length (mm)
- 760
- Width (mm)
- 580
- Height (mm)
- 609
- Dry weight (Kg)
- 195
- Silenced
- Yes
- Super silenced
- Yes
- Voltage regulator
- Capacitor
- Engine manufacturer
- Kubota
- Brand
-
Fixed speed generators. Perfect for installation within the vehicle and the ideal choice in all cases where space and length is available.
