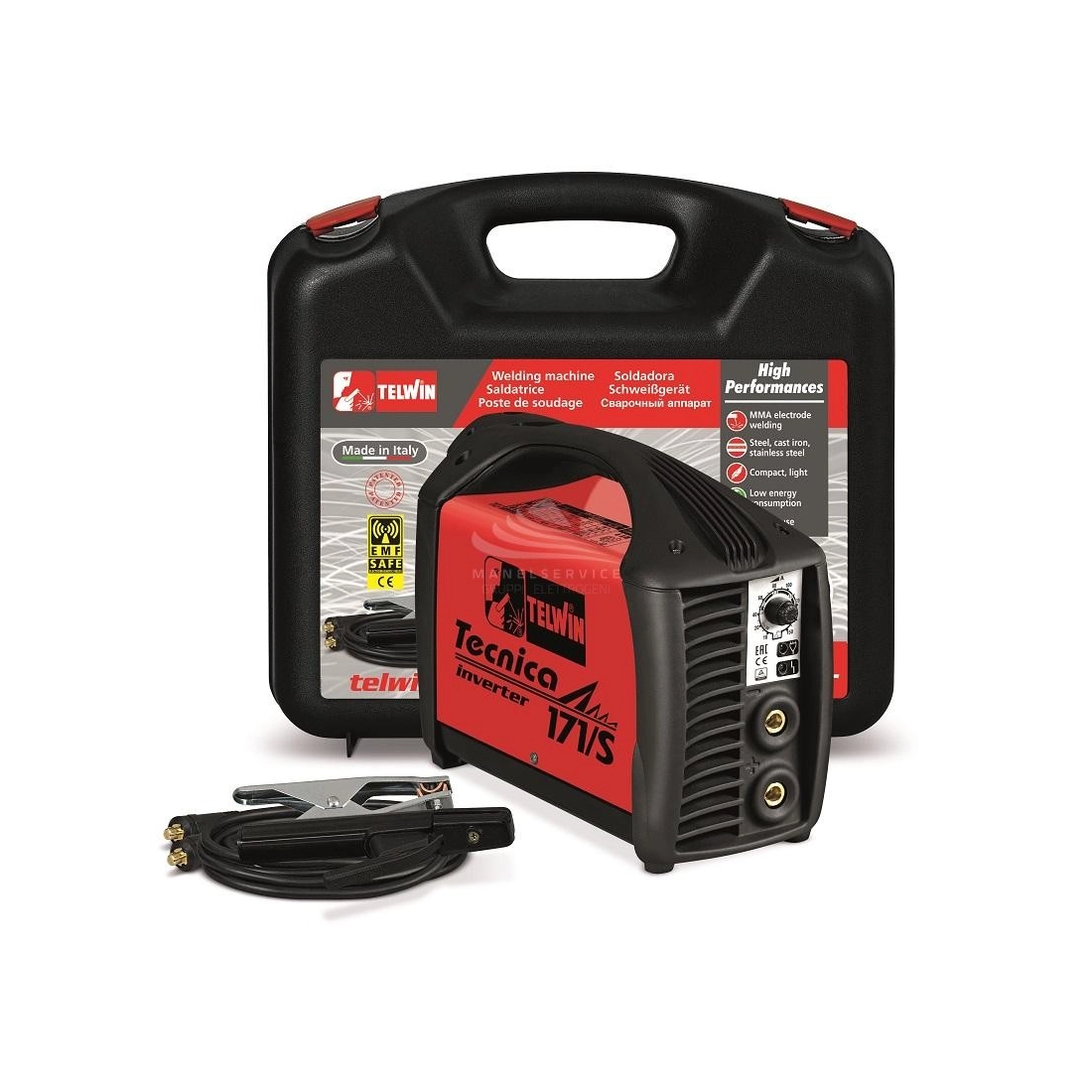

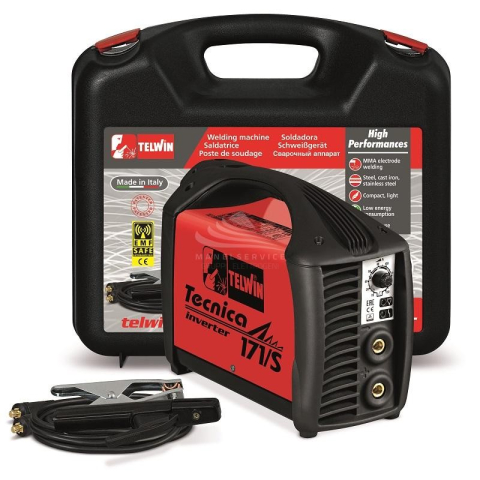

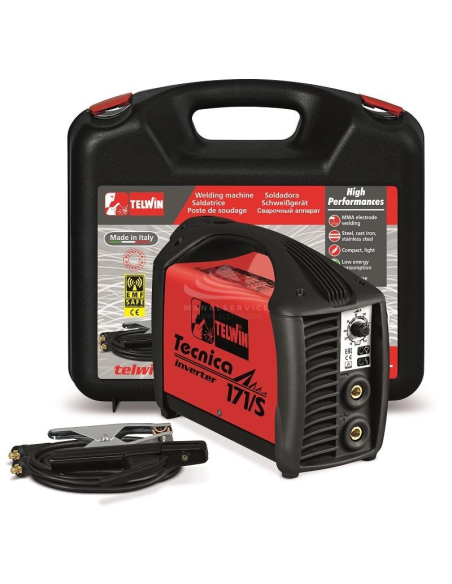

TELWIN TECNICA 171/S 230V ACX PLASTIC CARRY CASE

Name: TELWIN TECNICA 171/S 230V ACX PLASTIC CARRY CASE
Brand: TELWIN
SKU: 816203

Reference 816203

OUT OF PRODUCTION

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 75 V
Regulation current: 10 - 150 A
Current max: 140 A
Diameter electrodes: 1.6 - 4 mm
Length: 480 mm
Width: 170 mm
Height: 380 mm
Weight: 6.6 Kg

Download Scheda tecnica TECNICA 171/S P Download Technical data TECNICA 171/S P Download Ficha técnica TECNICA 171/S P Download Fiche technique TECNICA 171/S P Download Manual TECNICA

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 86
Protection degree: IP23
Maximum permissible current (A): 28
No-load voltage (V): 75
Regulation current (A): 10 - 150
Diameter electrodes (mm): 1.6 - 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 140
Length (mm): 480
Width (mm): 170
Height (mm): 380
Voltage regulator: Inverter
Weight (Kg): 6.6

EAN13: 8004897810027

Brand

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and plastic carry case.

Not binding images and technical data.
