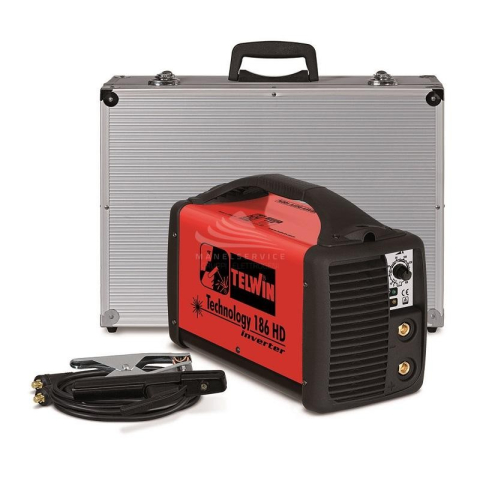

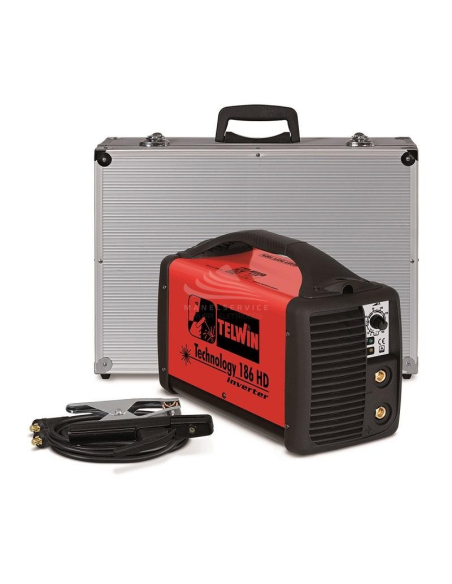

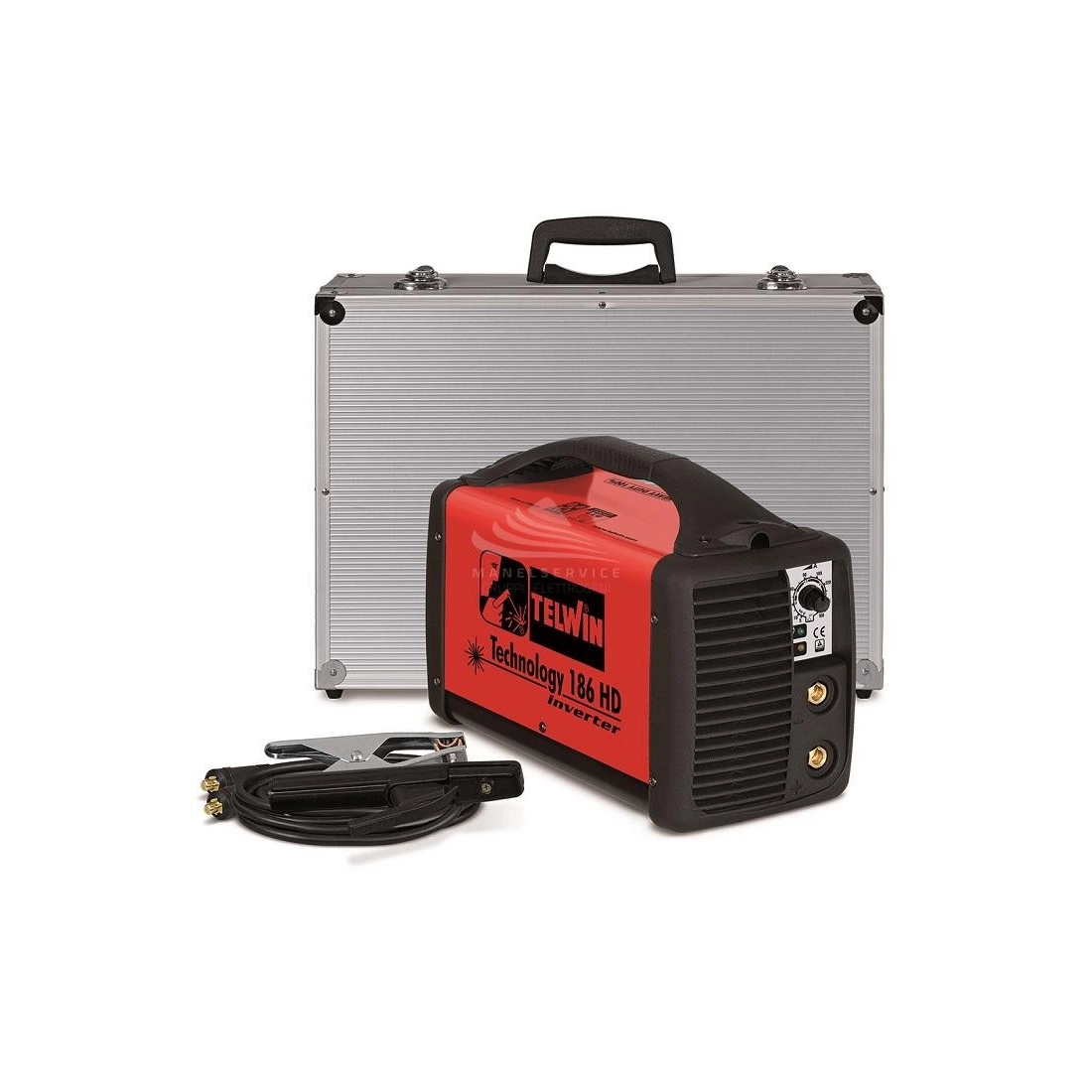

TELWIN TECHNOLOGY 186HD 230V ACX ALUMINIUM CARRY CASE

Name: TELWIN TECHNOLOGY 186HD 230V ACX ALUMINIUM CARRY CASE
Brand: TELWIN
SKU: 816250

Reference 816250

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 83 V
Regulation current: 5 - 160 A
Current max: 160 A
Diameter electrodes: 1.6 - 4 mm
Length: 400 mm
Width: 185 mm
Height: 360 mm
Weight: 8.5 Kg

Download Scheda tec TECHNOLOGY 186HD A Download Tech data TECHNOLOGY 186HD A Download Ficha técnica TECHNOLOGY 186HD A Download Fiche tech TECHNOLOGY 186HD A Download Manual TECHNOLOGY

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 90
Protection degree: IP23
Maximum permissible current (A): 32
No-load voltage (V): 83
Regulation current (A): 5 - 160
Diameter electrodes (mm): 1.6 - 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 160
Length (mm): 400
Width (mm): 185
Height (mm): 360
Voltage regulator: Inverter
Weight (Kg): 8.5

EAN13: 8004897828695

Brand

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and aluminium carry case.

Not binding images and technical data.
