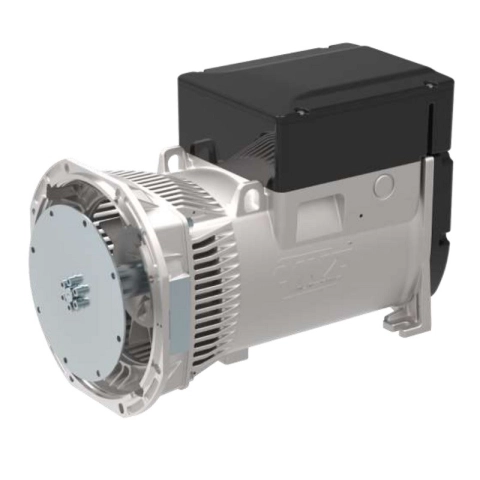

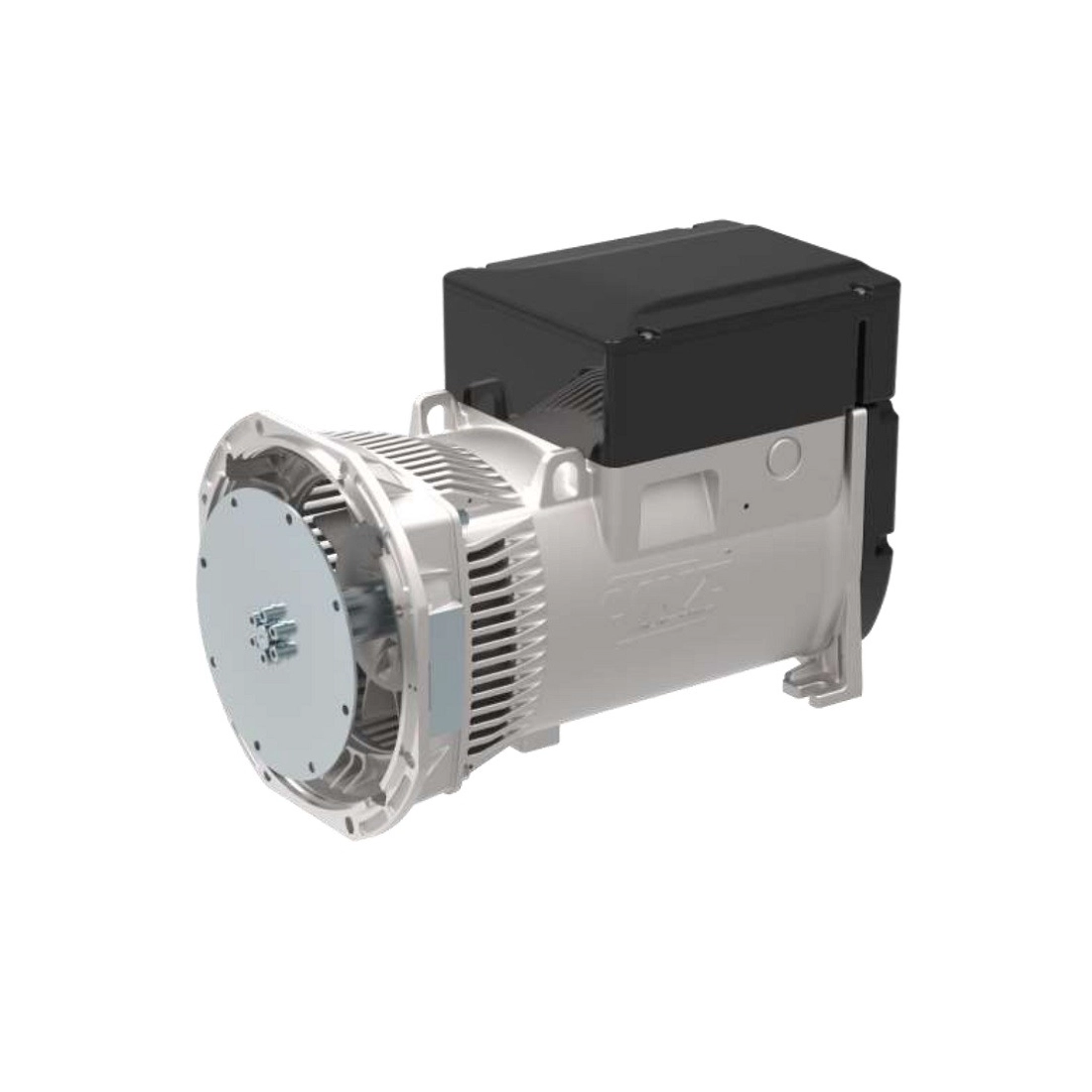

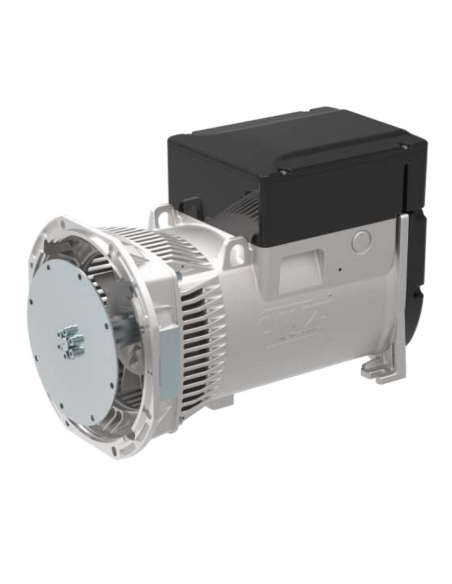

LINZ E1E13M E Single-phase alternator 115V/230V 18 kVA 50 Hz AVR

LINZ E1E13M E Single-phase alternator 115V/230V 18 kVA 50 Hz AVR
LINZ E1E13M E Single-phase alternator 115V/230V 18 kVA 50 Hz AVR
LINZ E1E13M E Single-phase alternator 115V/230V 18 kVA 50 Hz AVR
LINZ E1E13M E Single-phase alternator 115V/230V 18 kVA 50 Hz AVR
E1E13M E 50 Hz J609b

Rated power at 50Hz (kVA): 18
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Regulation type: AVR
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9 at 50Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1E13M E

Phase
Single phase
Continuous power single phase (KW)
18
Continuous power single phase (KVA)
18
Frequency (Hz)
50 / 60
Voltage (V)
115 / 230
Engine rpm (rpm)
3000
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
18
Protection degree
IP21
Motor insulation class
H
Length (mm)
495
Width (mm)
270
Height (mm)
379
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
89
Brand

The SPE and E1E series consist of single-phase 2-pole alternators with brushes and AVR electronic regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • High voltage accuracy
  • Wide range of accessories
  • AVR with built-in protections
  • Range: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: AVR
  • Application: PORTABLE
    product available 50 Hz and 60 Hz

Images and technical data are not binding.

Complete your order with:

Available only upon request
€1,120.37 €1,120.37

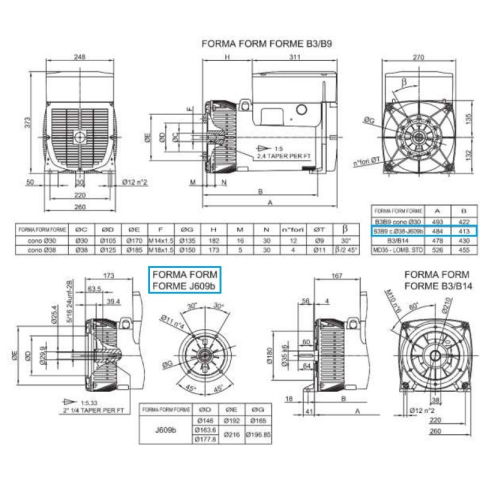

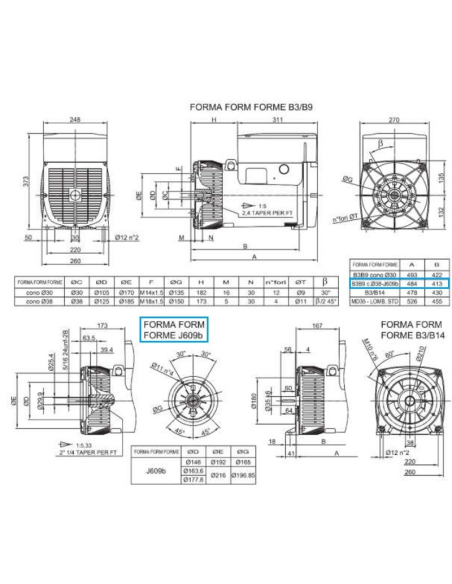

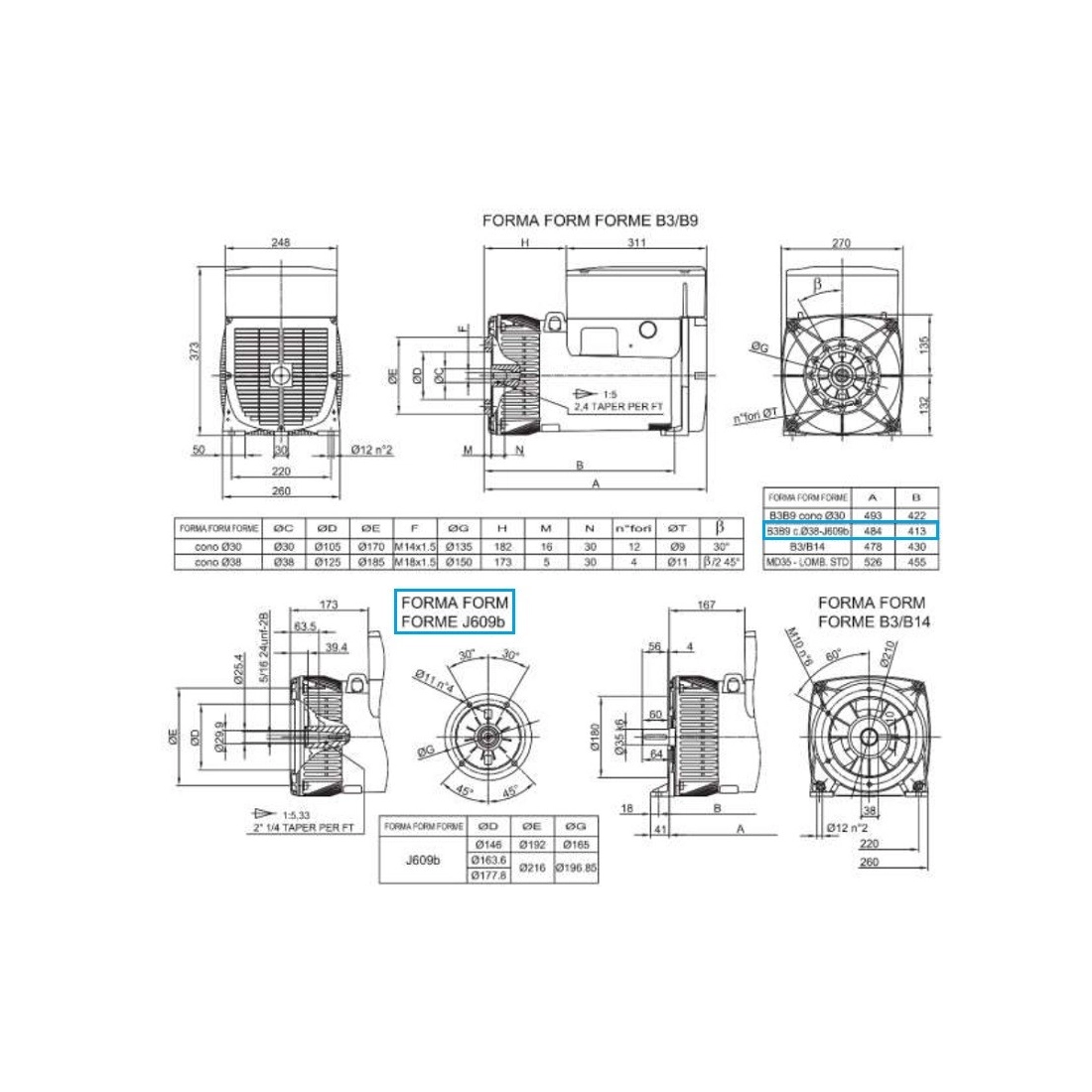

Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
