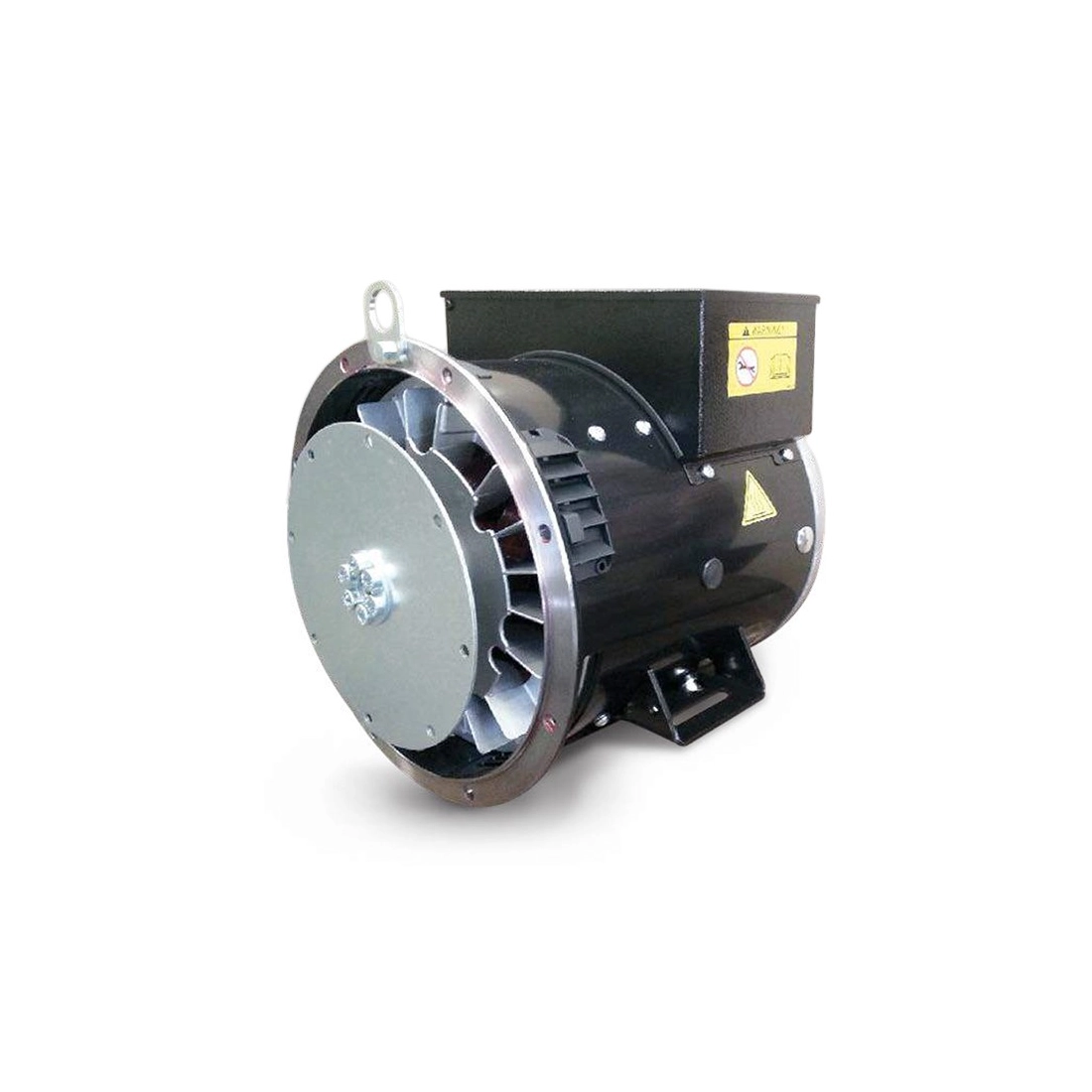

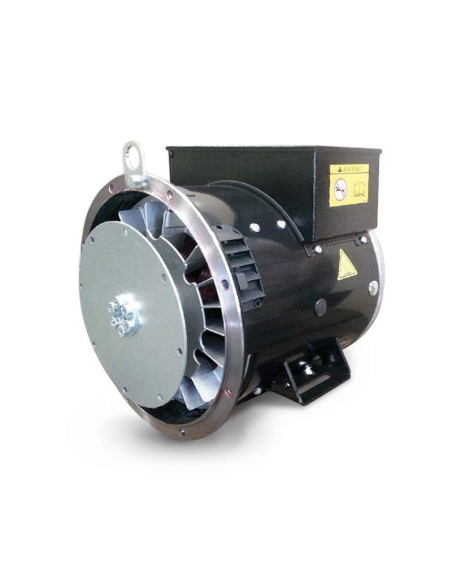

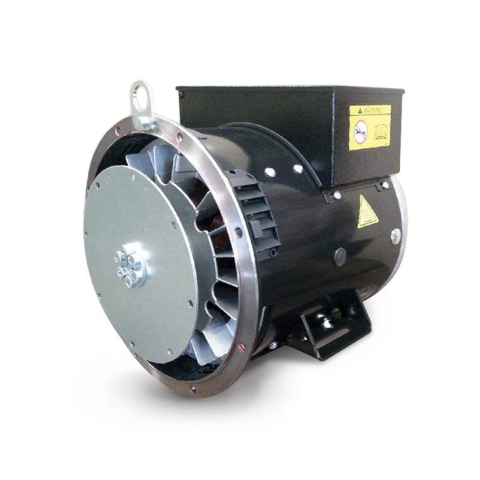

SINCRO SK160 WA SINGLE-THREE-PHASE ALTERNATOR 36KVA AVR

SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SK160 WA SAE5 d6.5

Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 21.6
Three Phase Output (kVA): 36
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 125
Protection: IP23

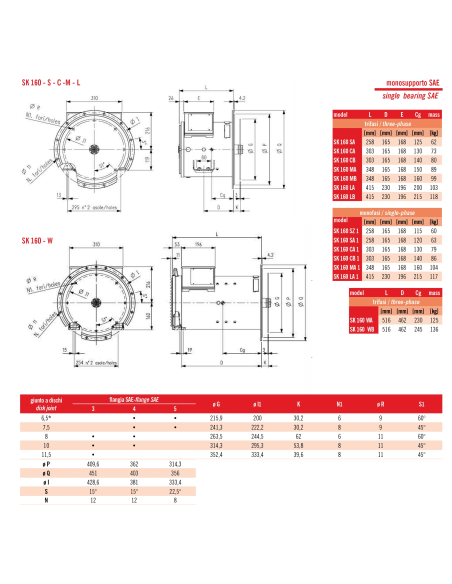

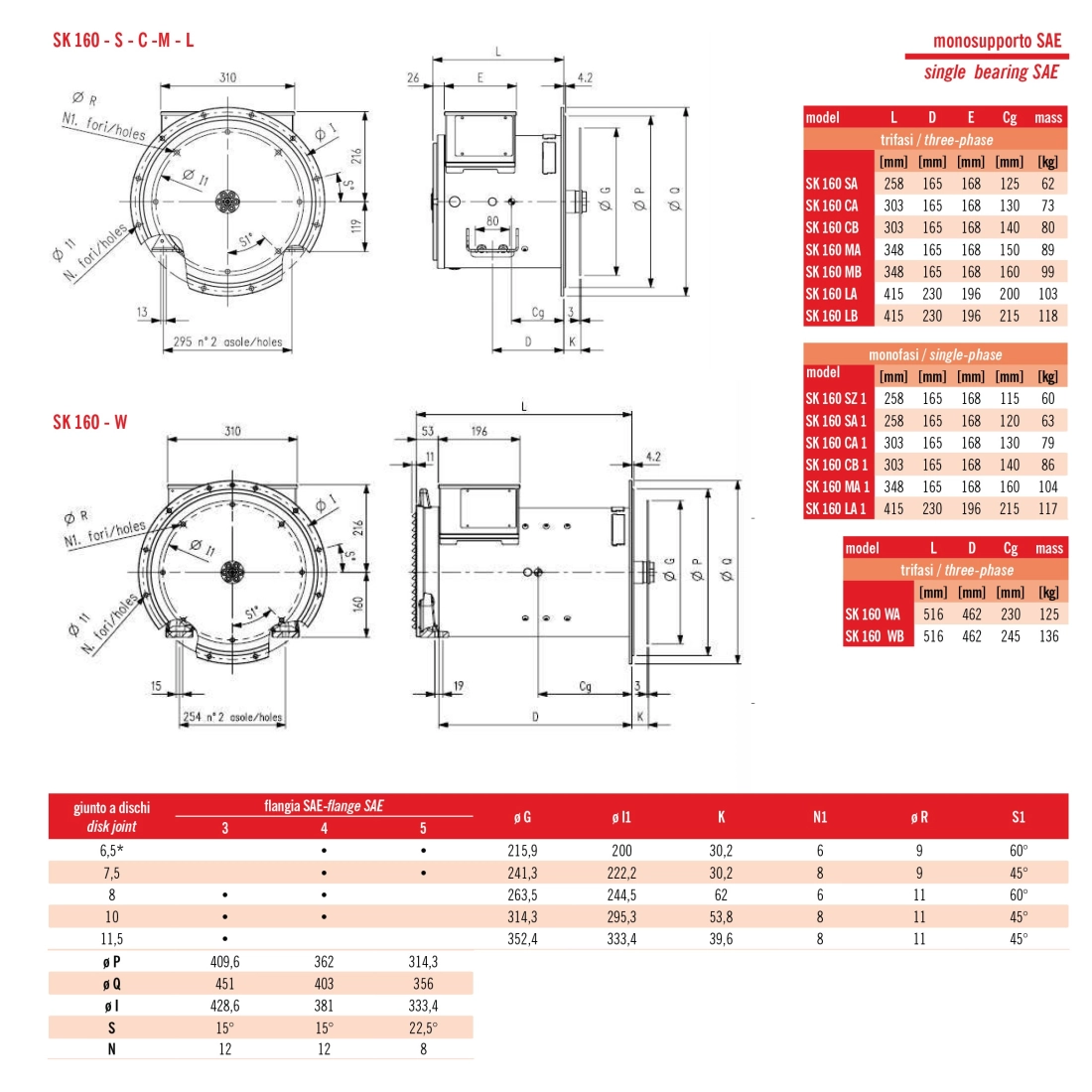

Download Technical data SK160 4 poles

Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
17.28
Single-phase power (KVA)
21.6
Three-phase power (KW)
28.8
Three-phase power (KVA)
36
Efficiency (%)
87.8
Protection degree
IP23
Dry weight (Kg)
125
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Three phase leads 12 / single phase leads 4
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard

The image is purely indicative.

Available only upon request
€1,810.00 €1,810.00
Choose the type of coupling
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
