SINCRO HB4 CA SINGLE-THREE PHASE ALTERNATOR 22KVA AVR

SINCRO THREE PHASE ALTERNATOR HB4
SINCRO THREE PHASE ALTERNATOR HB4
SINCRO THREE PHASE ALTERNATOR HB4
SINCRO THREE PHASE ALTERNATOR HB4
HB4 CA SAE4 d6.5

Phase: Three phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 13.2
Three Phase Output (kVA): 22
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 112
Protection: IP23

Download Technical data HB4

Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
10.56
Single-phase power (KVA)
13.2
Three-phase power (KW)
17.6
Three-phase power (KVA)
22
Efficiency (%)
84.8
Protection degree
IP23
Dry weight (Kg)
112
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 12
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: HB alternators can be connected for single-phase use

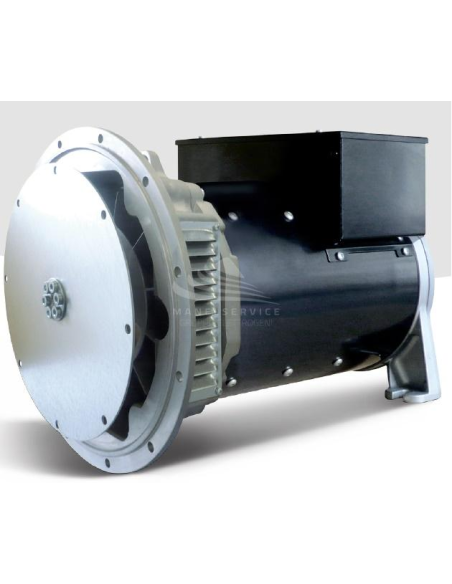

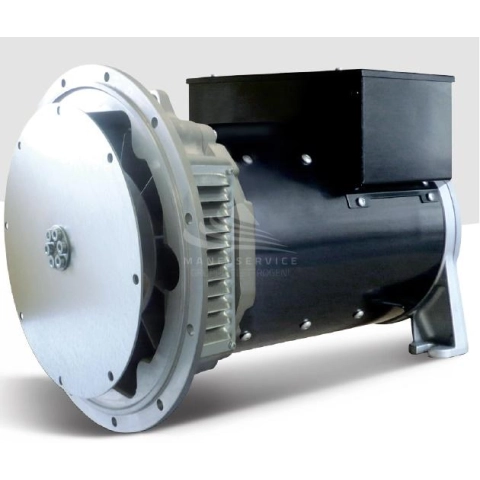

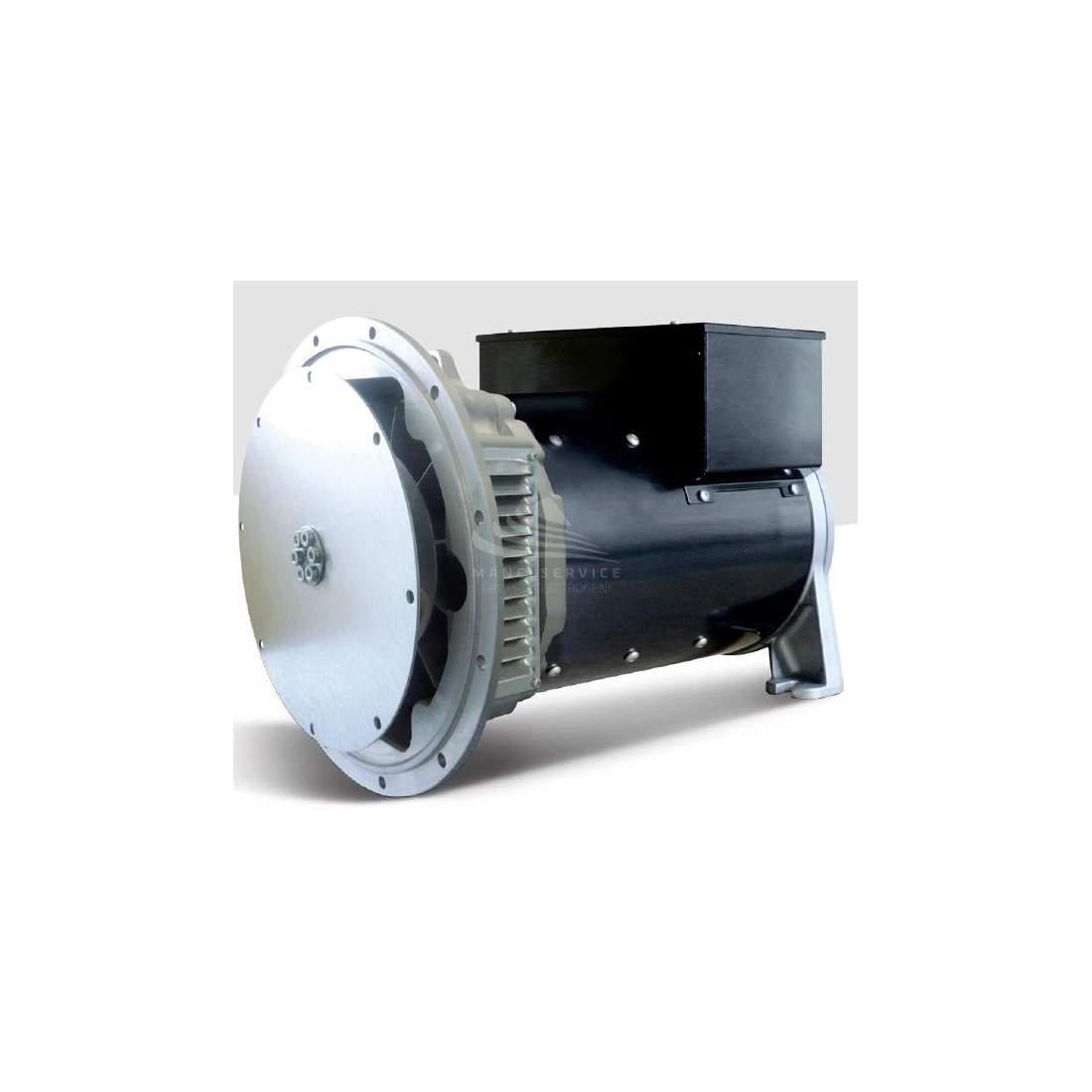

The image is purely indicative.

Complete your order with:

Available only upon request
€1,405.00 €1,405.00

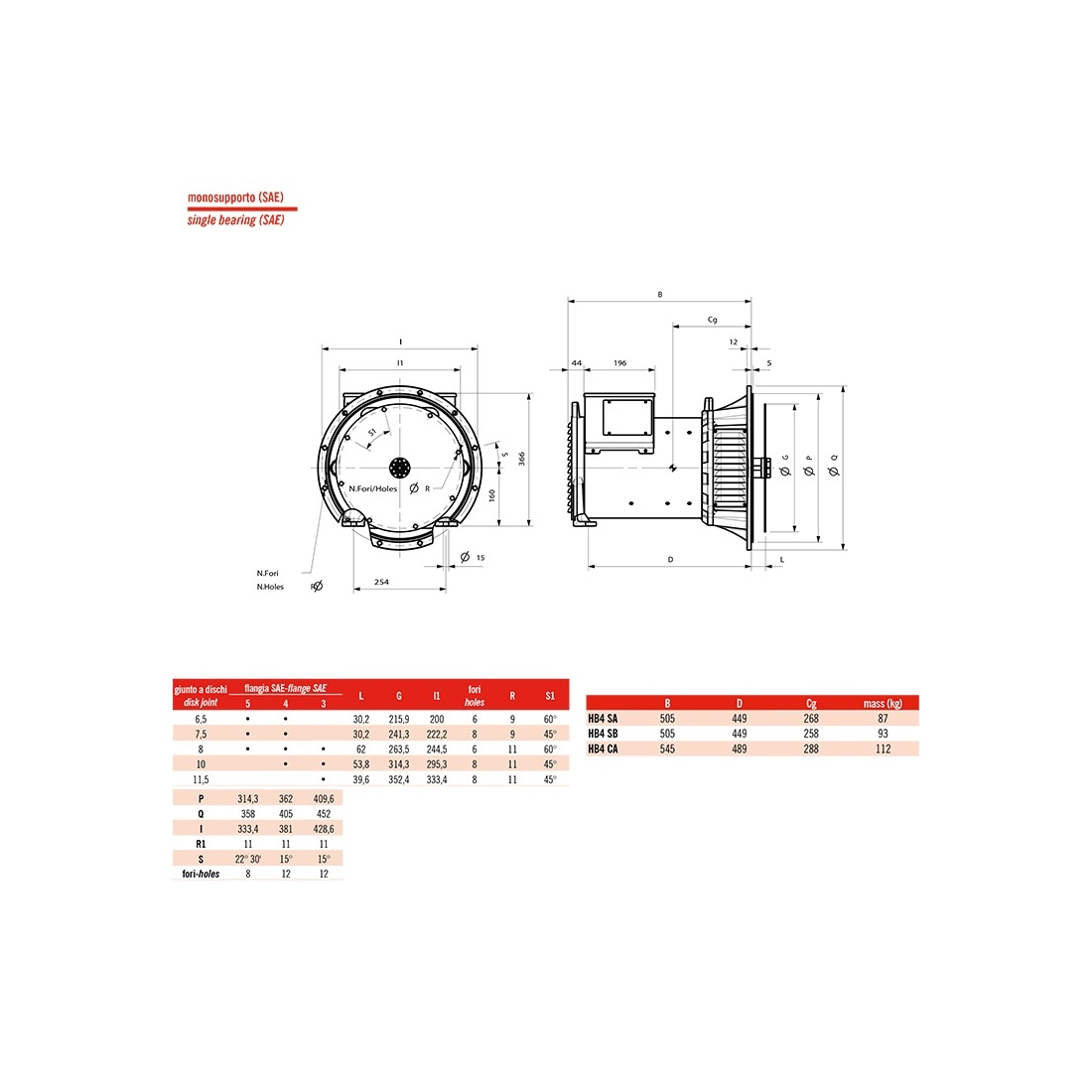

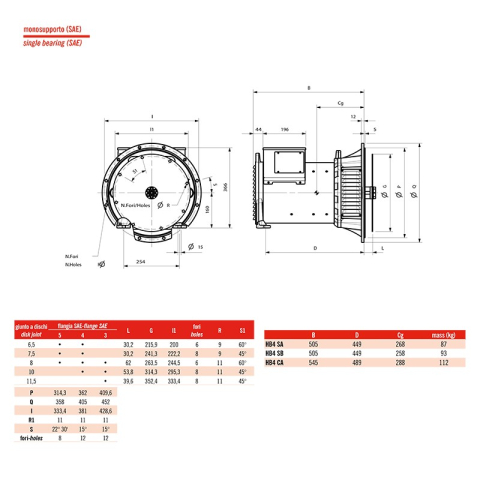

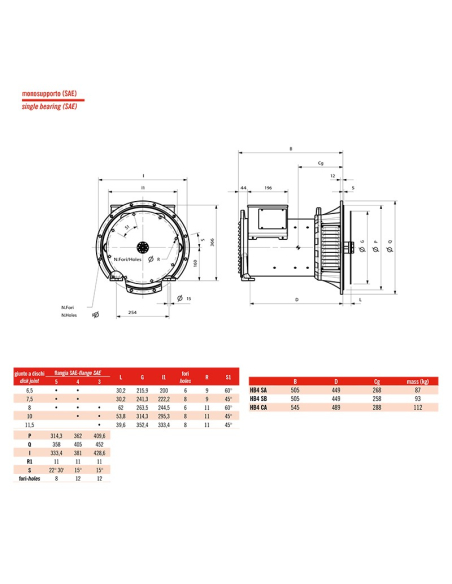

Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.
