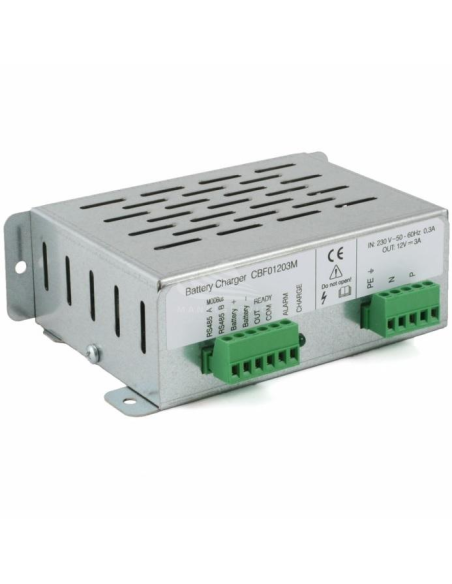

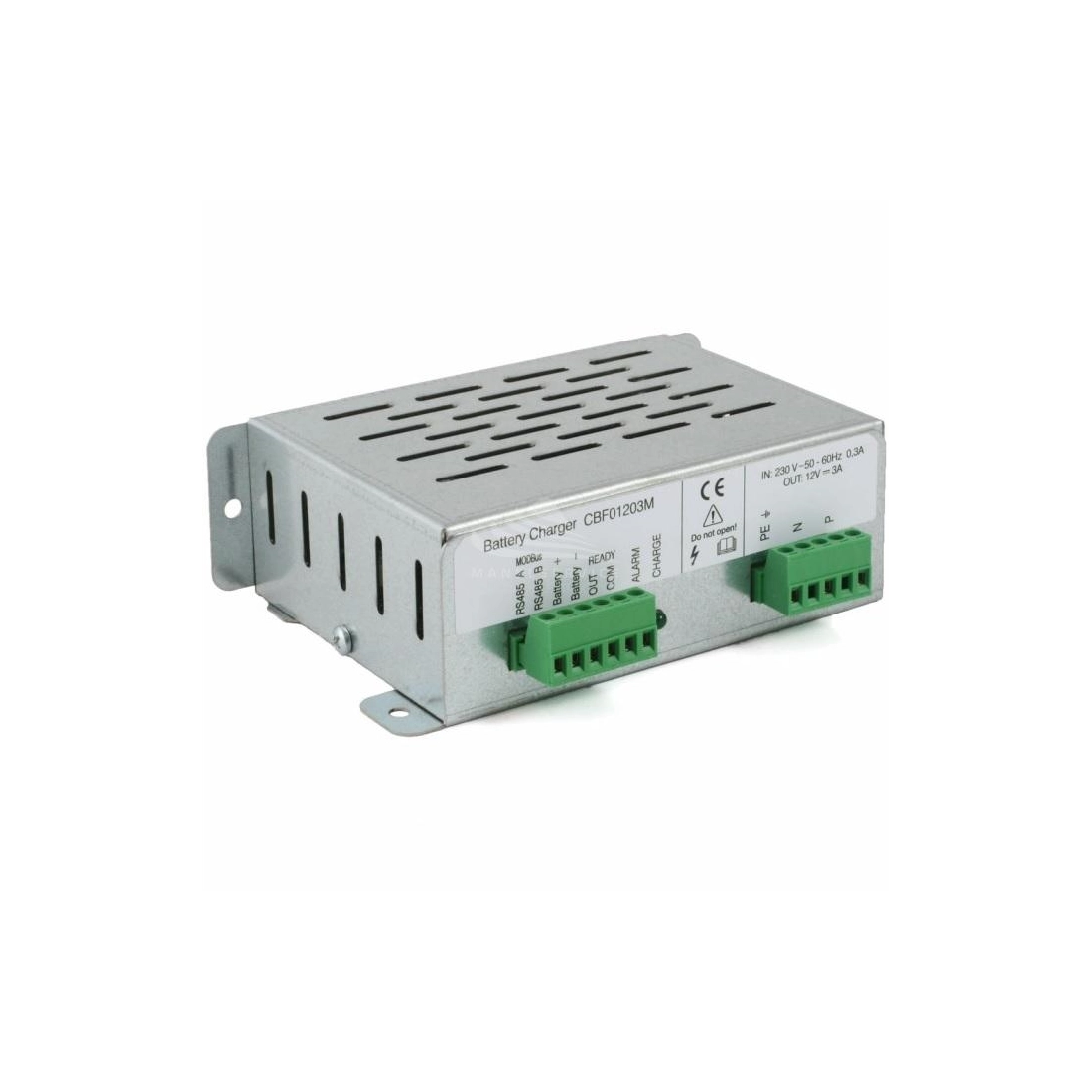

JANUS CBF01203M Switching Battery Charger 14V - 3A

Name: JANUS CBF01203M Switching Battery Charger 14V - 3A
Brand: JANUS
SKU: CBF01203M
Price: 49.1 EUR
Availability: InStock

Reference CBF01203M

Phase: Single Phase
Charge Voltage (V): 14
Protections: Reverse polarity, short circuit, high temperature
Nominal current (A): 3
Battery Type: Lead Acid
Lenght (mm): 154
Widht (mm): 95
Height (mm): 50

Download

Product Details
Description

Frequency (Hz): 50 / 60
Voltage (V): 230
Cooling: Natural convenction
Protection degree: Reverse polarity, short circuit, high temperature
Output voltage (V): 12
Nominal current (A): 3
Battery type: Lead acid
Operating temperature (°C): -40 / +50
Length (mm): 154
Width (mm): 95
Height (mm): 50
Overload protectors: Yes

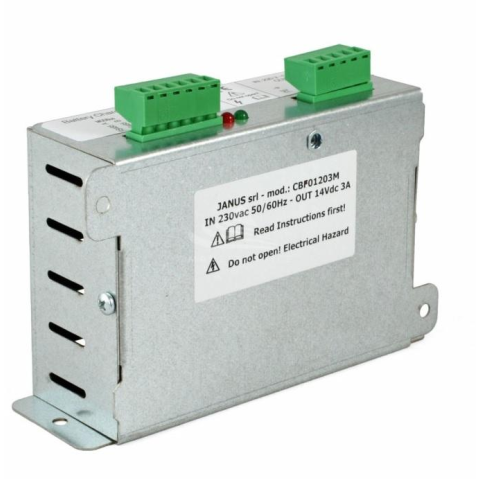

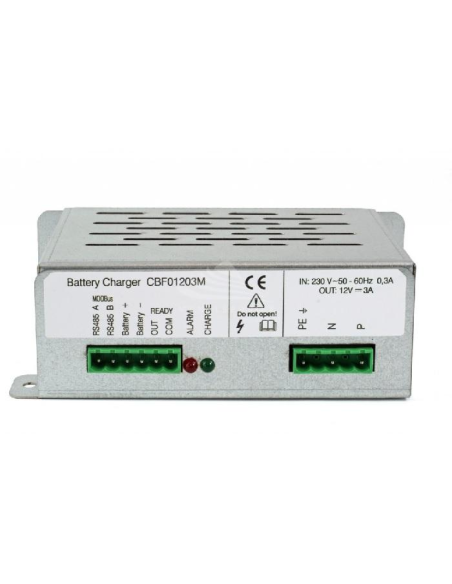

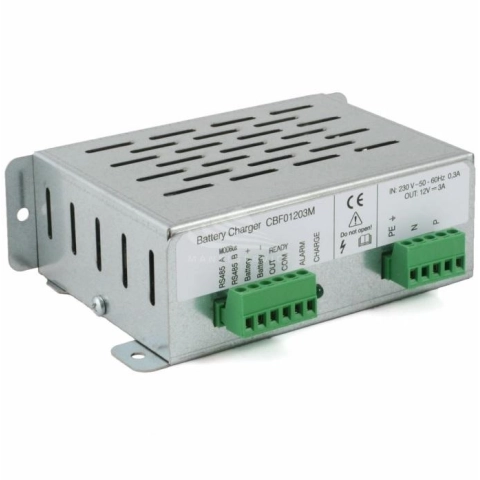

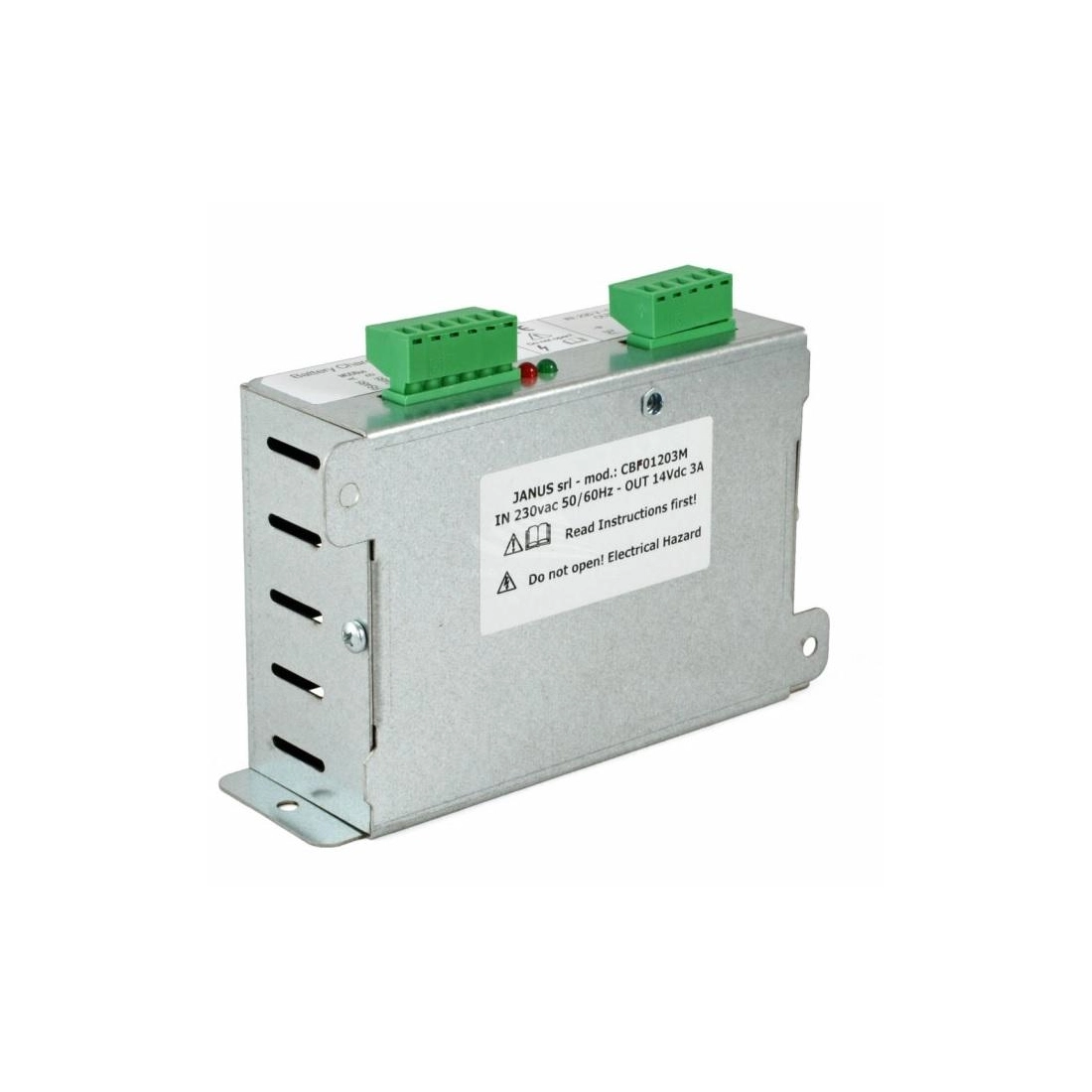

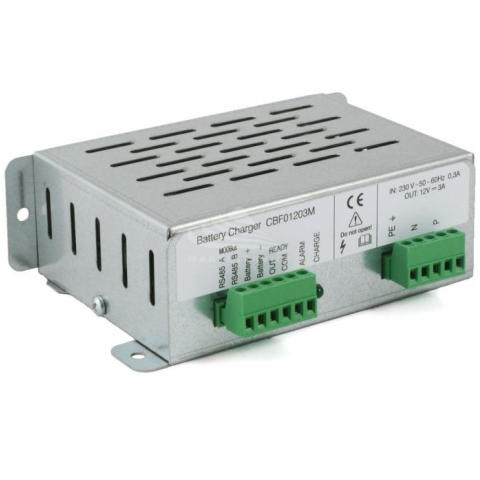

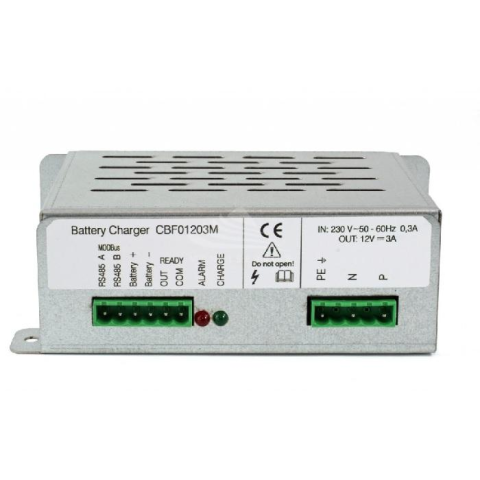

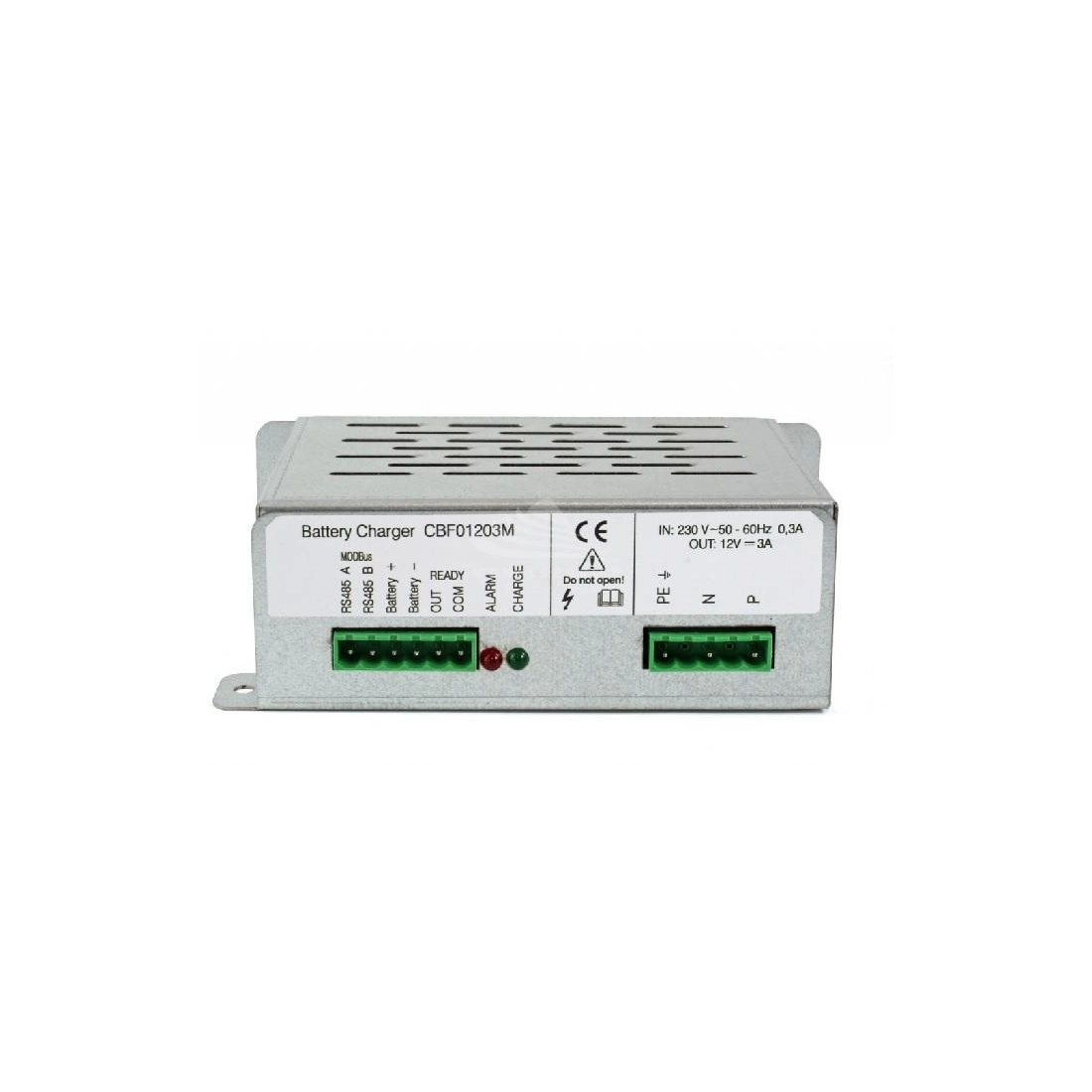

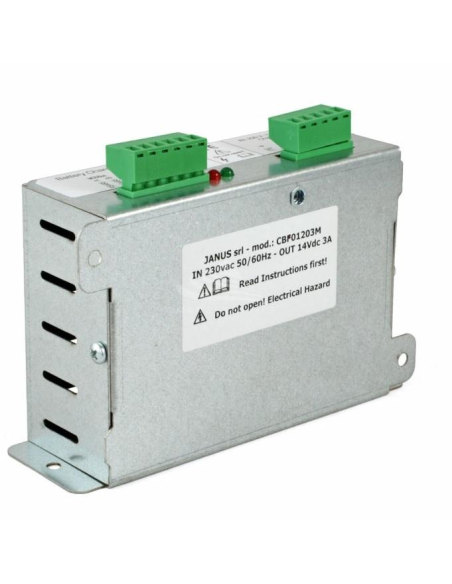

CBF and CBR industrial battery chargers are born from the precise need to have a reliable battery charger to install and forget. The sturdy metal container is equipped with fastening eyelets for the various needs. Connections are made via removable terminal blocks.
All models are equipped with an operating condition indicator led.
CBF models have an opto-coupled signal output and a RS485 Modbus communication port for connection to external systems.
CBR models also have an SAE J1939 communication port on the Canbus at 250 kbps.

Non-binding images and technical data.
