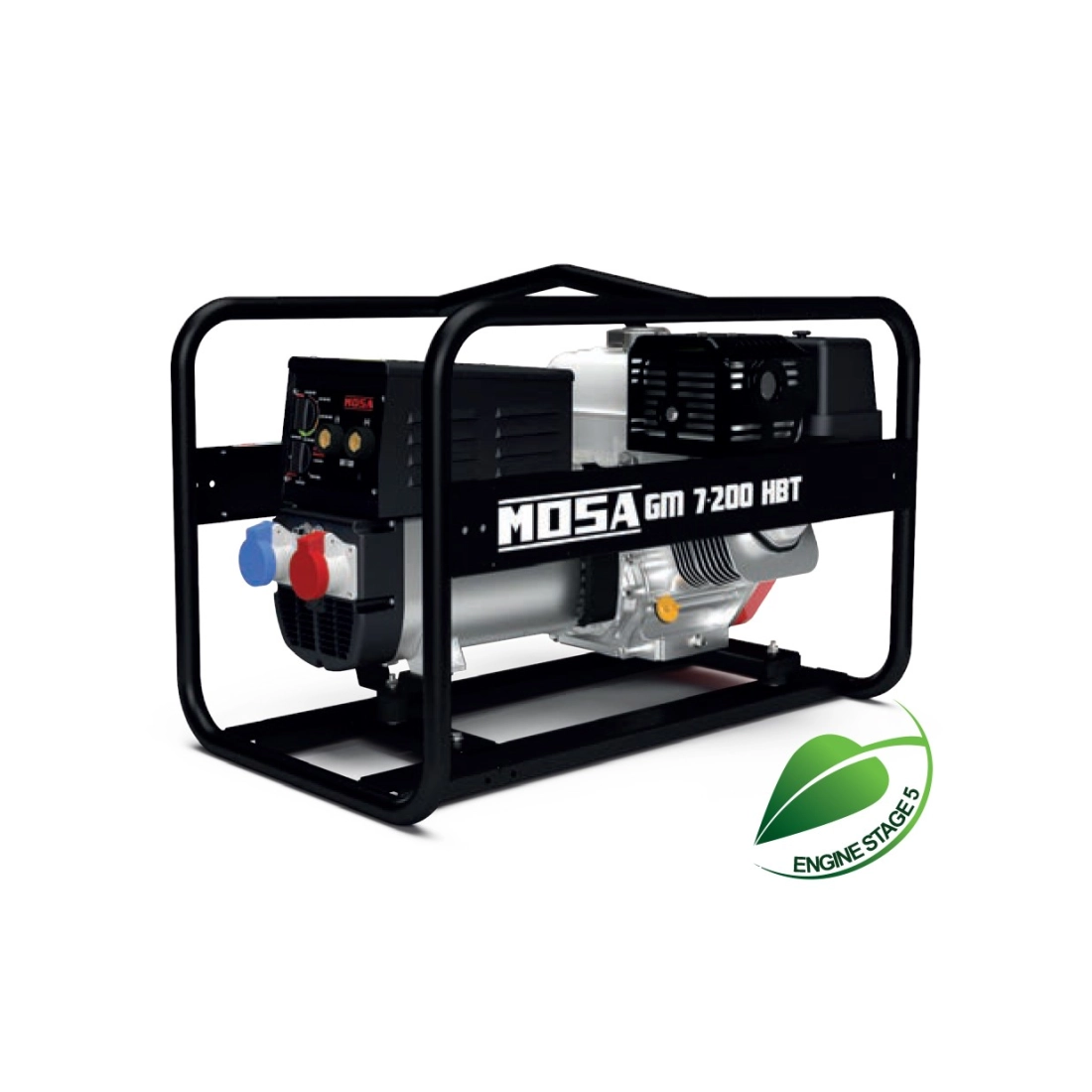

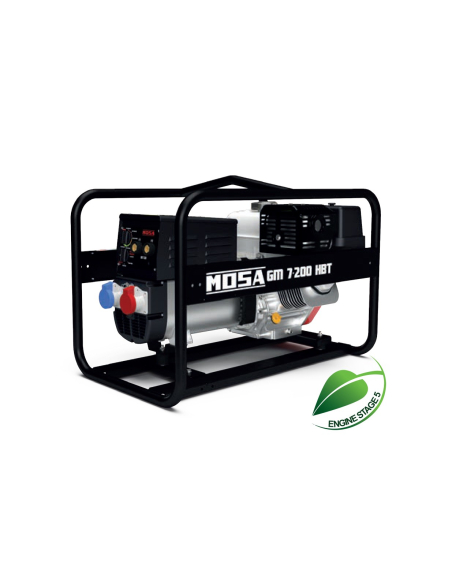

MOSA GM 7-200 HBT MOTORWELDING 7KVA

Name: MOSA GM 7-200 HBT MOTORWELDING 7KVA
Brand: MOSA
SKU: C1TN7000
Price: 1953 EUR
Availability: InStock

Reference C1TN7000

Welding Current: 40A / 21.6V ÷ 200A / 20V
Duty cycle: 160A / 26.4V - 60%, 120A / 24.8 - 100%.
Trigger voltage (open circuit voltage): 85 V

NOMINAL OUTPUT POWERS
Max. three-phase power: 7 kVA (5.6 kW) / 400 V / 10.1 A
Three-phase power PRP: 6.5 kVA (5.2 kW) / 400 V / 9.4 A
Single-phase power PRP: 4 kVA / 230 V / 17.4 A

GENERAL SPECIFICATIONS
Tank capacity: 6.1 l
Autonomy (60% soldering): 2.9 h
Measured acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Guaranteed acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)

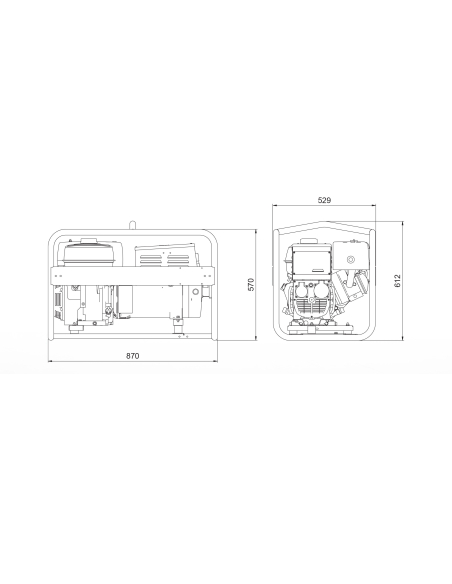

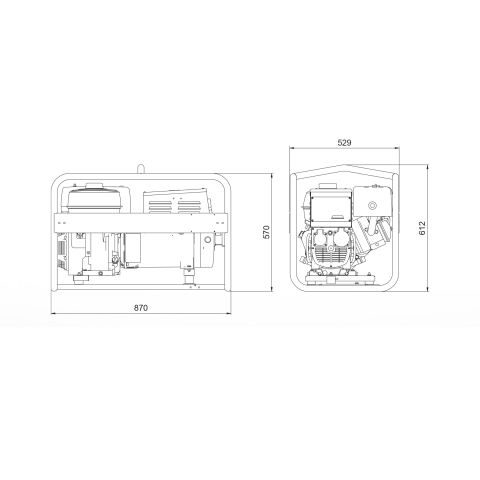

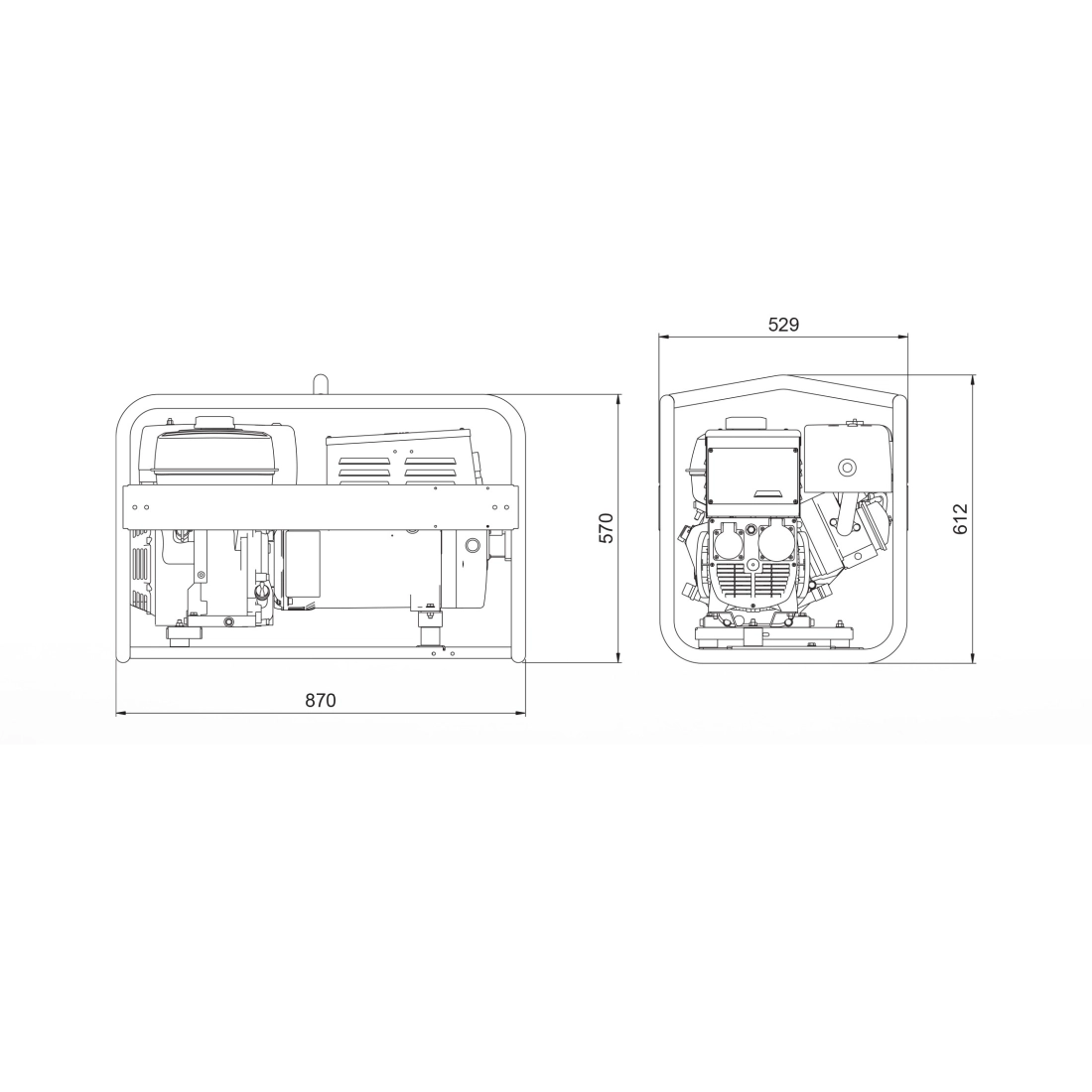

Width: 870 mm
Length: 525 mm
Height: 613 mm
Dry weight: 100 Kg

Download Data sheet MOSA GM 7-200 HBT Download Manual MOSA GM 7-200 HBT

Product Details
Description

Phase: Three phase
Continuous power single phase (KVA): 4
Maximum power three phase (KVA): 7
Continuous power three phase (KVA): 6.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration
Engine: Honda GX390, 4 stroke, OHV
Emissions Regulations: Stationary Use
Engine rpm (rpm): 3000
Starting system: Manuale
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Regulation current (A): 40 - 200
Welding current (A): 160 (max) - 120 at 60%
Open circuit voltage (V): 85
Type of welding current: DC
Type of welding: MIG-MAG
Fuel tank capacity (L): 6.1
Consumption (L/h): 3.2 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 71 dB(A) at 7 m
Length (mm): 870
Width (mm): 525
Height (mm): 613
Dry weight (Kg): 100
Silenced: No
Super silenced: No
Engine manufacturer: Honda

Brand

MOSA GM7-200 HBT MOTORWELDING 7KVA

MOSA GM7-200 HBT is a three-phase motor welding machine equipped with a HONDA - GX 390 gasoline engine capable of delivering a power of 7KVA.

The MOSA GM7-200 HBM is a motor welder that performs the dual function of current source for arc welding and current generator for auxiliary generation.

The MOSA GM7-200 HBM motor welder is intended for industrial and professional use. Driven by an endothermic engine, it consists of several parts such as: the engine, the alternator, the electrical and electronic controls, the bodywork and a protective structure. The assembly is carried out on a steel structure on which elastic supports are foreseen in order to dampen vibrations and eventually eliminate resonances that would produce noise.

The HBM MOSA GM7-200 is built in accordance with IEC- EN 60974-10. It must be installed and operated in accordance with the following provisions in order to achieve electromagnetic compatibility.

TECHNICAL FEATURES MOSA GM7-200 HBM

Welding current: 40A / 21.6V ÷ 200A / 20V
Service: 160A / 26.4V - 60%, 120A / 24.8 - 100%
Trigger voltage (no-load voltage): 85 V

MOTOR DATA
Model: HONDA - GX 390
Net standby power: 8.2 kWm (11.1 hp)
Net PRP power: 6.4 kWm (8.7 hp )
Cylinders / Displacement: 1 / 389 cm³ (0.39 lt.)
Bore / Stroke: 88 / 64 (mm)
Compression ratio: 8. 2 : 1
RPM controller: Mechanical
110 % (Standby Output): 3.5 lt./h
100 % PRP: 3.2 lt./h
75 % PRP: 2.4 lt./h
50 % PRP: 1.6 lt./h
Cooling system: Air
Sump oil capacity: 1.1 lt.

NOMINAL OUTPUT POWER
Three-phase max Output: 7 kVA (5.6 kW) / 400 V / 10.1 A
Three-phase PRP Output: 6.5 kVA (5.2 kW) / 400 V / 9.4 A
Single-phase PRP Output: 4 kVA / 230 V / 17.4 A

GENERAL SPECIFICATIONS
Tank capacity: 6.1 l
Autonomy (60% soldering): 2. 9 h
Measured acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Guaranteed acoustic power LwA: 97 dB(A) (71 dB(A) @ 7m)
Width: 870 mm
Length: 525 mm
Height: 613 mm
Dry weight: 100 Kg

Are you looking for a welding machine with different technical characteristics? Here you can find the full range of MOSA or other brands specializing in the field.

Images and technical data are not binding.
