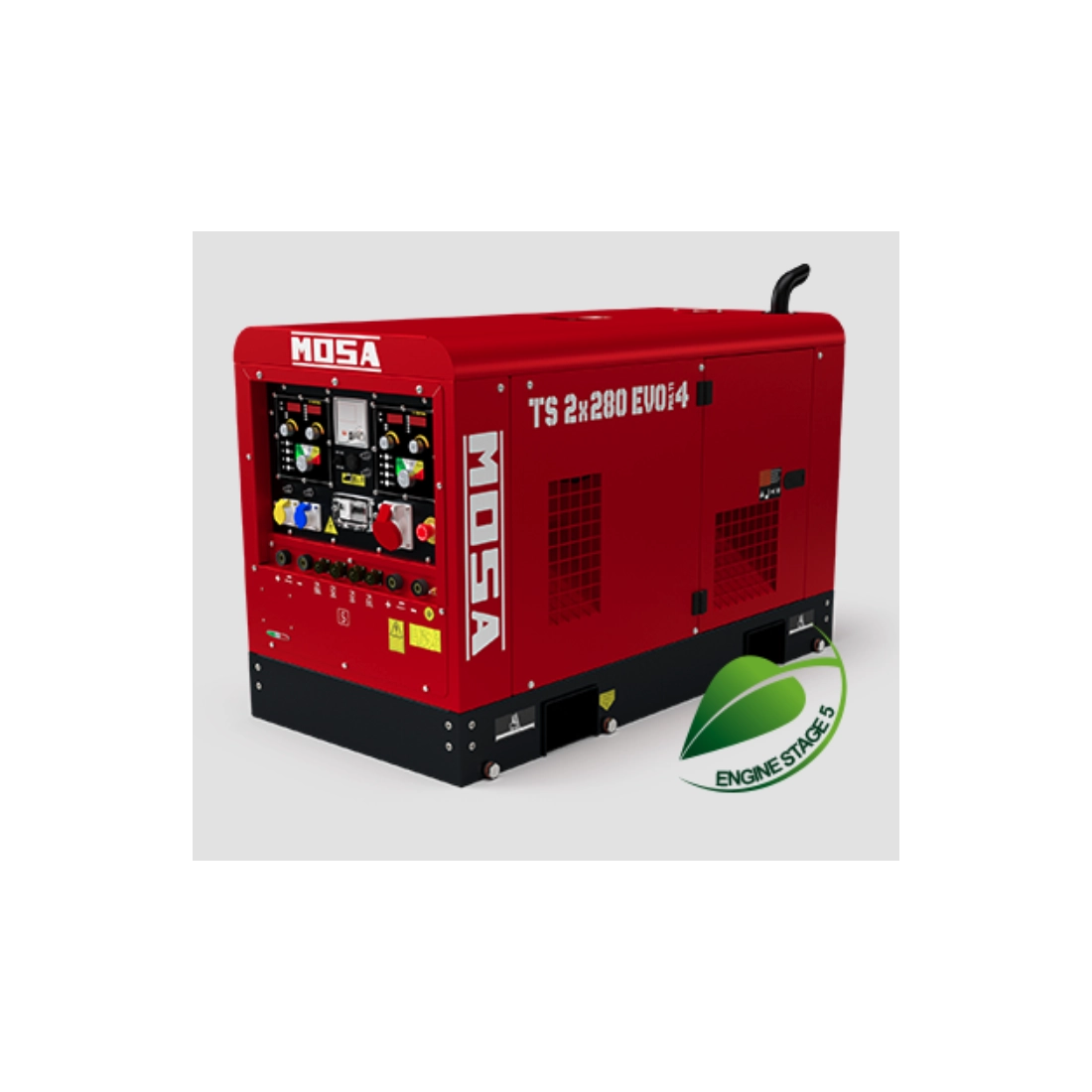

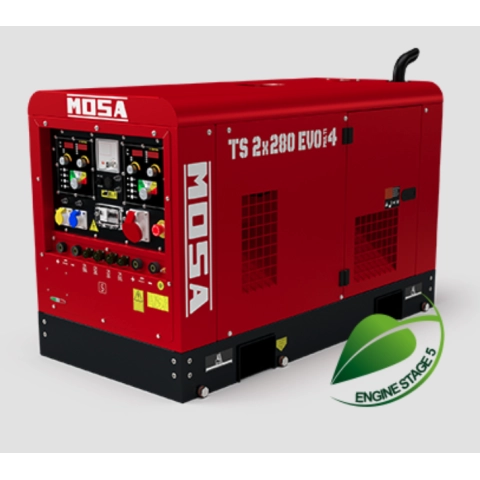

MOSA TS 2x280 EVO MULTI4 Welder 15kVA StageV

Name: MOSA TS 2x280 EVO MULTI4 Welder 15kVA StageV
Brand: MOSA
SKU: C1PV2023
Price: 16672 EUR
Availability: InStock

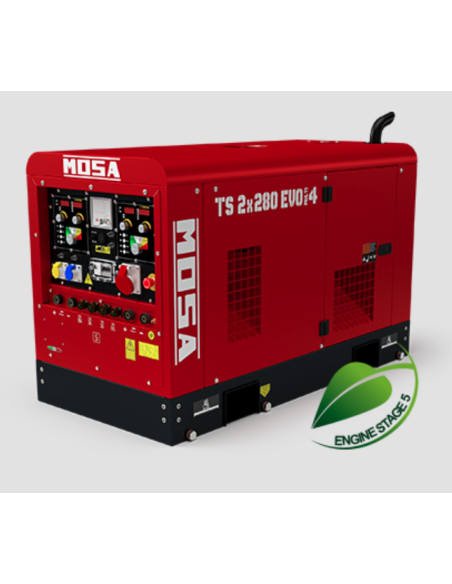

MOSA TS2x280 EVO MULTI4 Motorwelder 15kVA

Reference C1PV2023

Welding current: 2x250A / 30V (Stick) | 2x250A / 20V (Tig) (DUAL)

Welding current: 500A / 32V (Stick) | 425A / 37V (Stick) (IEC rating) | 500A / 30V (Tig) (SINGLE)

Duty cycle 60%: 2x250A / 30V (Stick) | 2x250A / 20V (Tig) (DUAL)

Duty cycle 100%: 2x230A / 29.2V (Stick) | 2x230A / 19.2V (Tig) (DUAL)

Duty cycle 60%: 480A / 29.2V (Tig) (SINGLE)

Duty cycle 100%: 425A / 37V (Stick) | 440A / 27.6V (Tig) (SINGLE)

MIG - FLUX CORED WELDING

Welding current: 2x250A / 26.5V (DUAL)

Welding current: 500A / 32V | 440A / 36V (IEC rating) (SINGLE)

Duty cycle: 2x250A / 26.5V - 60% / 2x230A / 25.5V - 100% (DUAL)

Duty cycle: 40A / 16V - 500A / 32V | 40A / 16V - 440A / 36V (IEC rating) - 100% (SINGLE)

Three-phase power: 15 kVA (15 kW) / 400 V / 21.6 A

Single-phase power: 7 kVA (7 kW) / 230 V / 30.4 A

Tank capacity: 60 l

Autonomy (Welding 60%): 13 h

Sound pressure LwA: 75 dB(A) @ 7 m

Dry weight: 725 Kg

Dimensions (LxWxH): 1600x790x1000 mm

Engine: Diesel YANMAR - 3TNV88

Download Scheda Tecnica EVO MULTI4

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KVA): 7
Maximum power three phase (KVA): 15
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Yanmar 3TNV88
Emissions Regulations: STAGE V
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 1642
Number cylinders: 3
Cooling: Water
Inyección: Indirect
Alternator: Asynchronous three-phase, self-excited, self-regulated, brushless
Welding current (A): 20A ÷ 250A40A ÷ 500A
Open circuit voltage (V): 70
Type of welding: (STICK)- (TIG)- (MIG)-(FLUX CORED)
Fuel tank capacity (L): 60
Consumption (L/h): 5.3 al 75% del carico
Running time (h): 13
Acoustic power: 98 dB(A)
Acoustic pressure: 75 dB(A) at 7 m
Width (mm): 790
Height (mm): 1000
Dry weight (Kg): 725
Silenced: Yes
Super silenced: Yes
Engine manufacturer: Yanmar

Brand

MOSA TS 2x280 EVO MULTI4 Welding Generator 15kVA StageV

MOSA TS 2x280 EVO MULTI4 Welding Generator 15kVA StageV: Power and Versatility for Professional Welding

The MOSA TS 2x280 EVO MULTI4 Welding Generator 15kVA StageV is a water-cooled diesel welding machine designed to offer high performance and versatility in various welding applications. With two independent welding stations of 250A each and a single 500A station, this welding generator can handle a wide range of welding processes, including:

Shielded Metal Arc Welding (SMAW/STICK)
Gas Tungsten Arc Welding (GTAW/TIG)
Pulsed TIG Welding
Gas Metal Arc Welding (GMAW/MIG)
Flux-Cored Arc Welding (FCAW)

Key Features:

Power and Performance:
- Welding current: 2x250A (DUAL), 500A (SINGLE)
- Three-phase power: 15 kVA (15 kW)
- Single-phase power: up to 7 kVA
Safety and Reliability:
- VRD (Voltage Reduction Device) function for increased safety.
- Overcurrent and short circuit protections.
- High sensitivity differential switch (30mA).
- Emergency stop button.
Efficiency and Functionality:
- Auto-Idle function to reduce fuel consumption.
- Three-phase and single-phase AC generator available during welding.
- Large steel tank (60 liters) for long autonomy (13 hours at 60%).
- Easy maintenance.
Engine and Consumption:
- YANMAR 3TNV88 4-stroke, indirect injection engine.
- Optimized fuel consumption (5.3 l/h at 75% of PRP).
Design and Construction:
- Liquid-tight base.
- Central lifting hook.
- Adjustable exhaust gas outlet.
- Access panel for radiator cleaning and inspection.
- External access for radiator filling.
