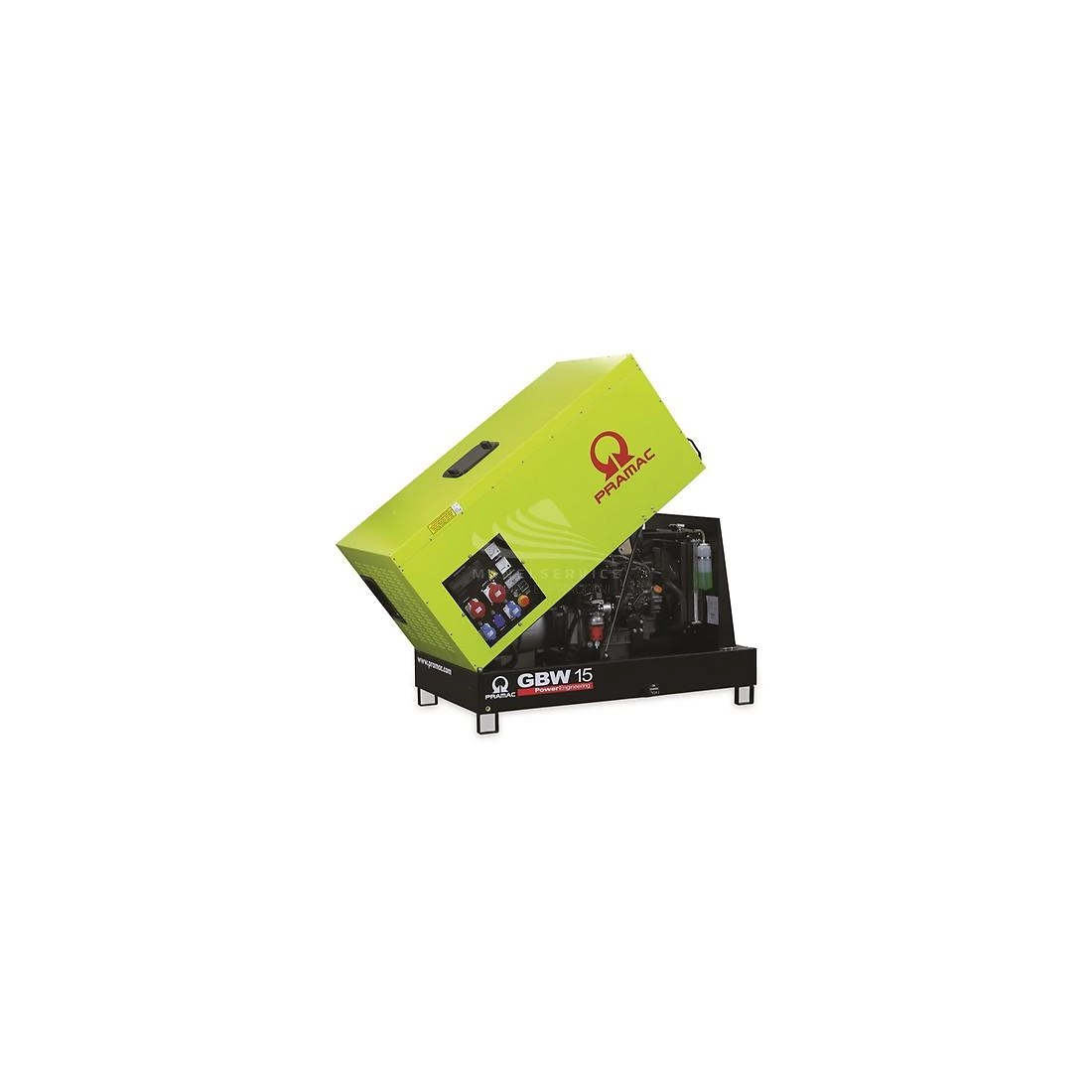

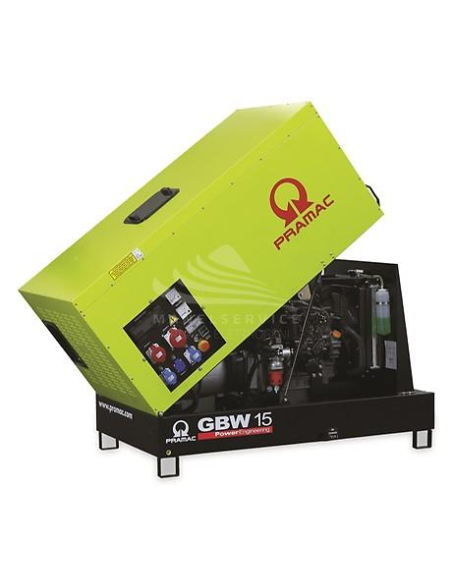

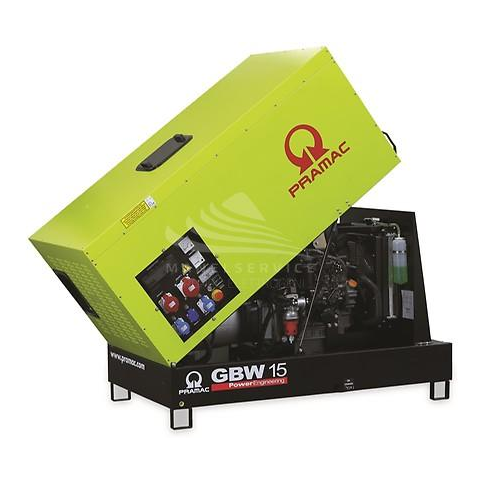

PRAMAC GBW15P Generator Set Three-phase MCP 11.2KW Enclosure with manual control panel

Name: PRAMAC GBW15P Generator Set Three-phase MCP 11.2KW Enclosure with manual control panel
Brand: PRAMAC
SKU: SB130TPAY00
Price: 8483.71 EUR
Availability: InStock

Reference SB130TPAY00

Maximum power three-phase: 11.28 KW - 14.10 kVA
Continuous power three-phase: 10.18 KW - 12.72 kVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 403D-15G
Starting: Electric
Consumption: 3.6 Lt/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 550 Kg
Compound
Exhaust gas emission level: Not regulated

Download Scheda tecnica GBW15P COFANATO Download Technical data GBW15P COVERED Download Disegno installazione GBW15P

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 11.28
Continuous power three phase (KW): 10.18
Maximum power three phase (KVA): 14.1
Continuous power three phase (KVA): 12.72
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

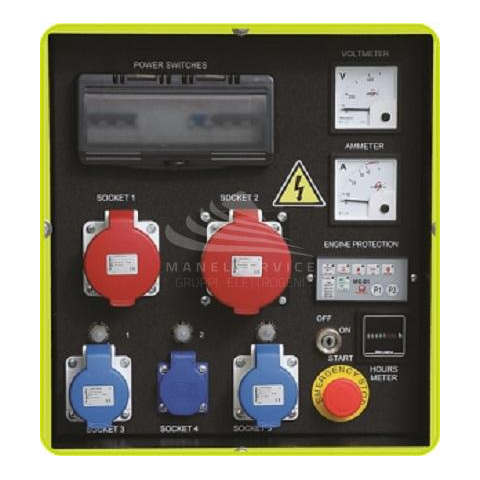

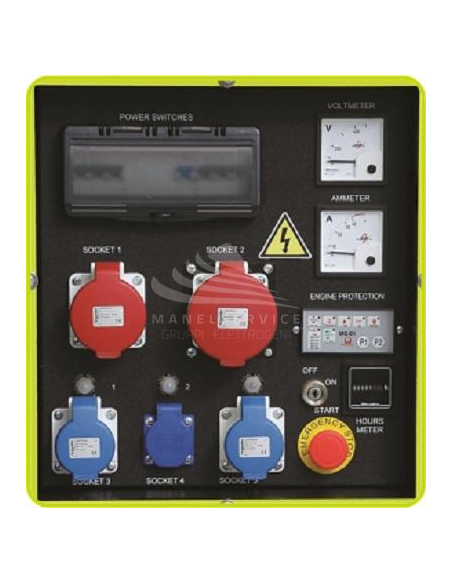

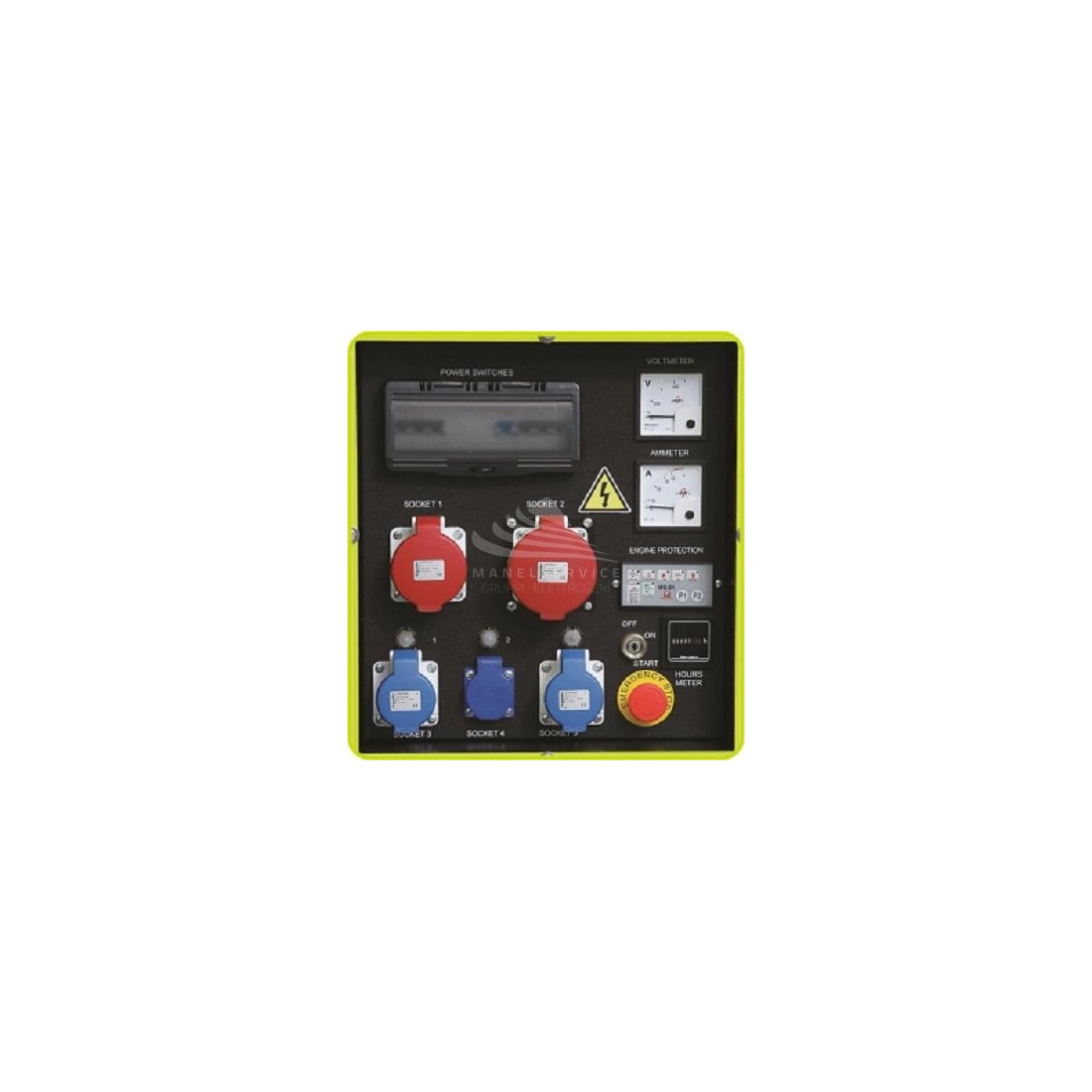

Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Emissions Regulations: Stationary Use
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 1496
Number cylinders: 3
Cylinders' position: In line
Oil capacity (L): 6
Cooling: Water
Alternator: Linz E1S13MD, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 2.7 at 75% of the load / 3.6 at 100% of the load
Running time (h): 18.6 at 75% of the load / 14.2 at 100% of the load
Acoustic power: 95 dB(A)
Acoustic pressure: 66 dB(A) at 7 m
Length (mm): 1645
Width (mm): 870
Height (mm): 1072
Dry weight (Kg): 550
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Perkins

Brand

PRAMAC GBW15P THREE-PHASE MCP GENERATOR 11.2KW

PRAMAC GBW15P 11.2 kW three-phase generator with a diesel engine running at 1500 rpm. The PRAMAC GBW15P generator is equipped with an electric starter. The alternator of the PRAMAC GBW15P generator is a brushless, compound voltage regulator. The Perkins diesel engine makes the GBW15P generator very reliable, as it was built and designed using top-quality materials.
Thanks to its canopy, this generator is super-silenced. Furthermore, its compact size makes it easy to transport, install, and position, making this model ideal for power grid emergencies, construction, mobile workshops, and industrial applications. The PRAMAC GBW15P three-phase generator is suitable for outdoor use on construction sites or for small professional jobs outdoors.

Technical characteristics of the PRAMAC GBW15P MCP Three-Phase generator:
Maximum power Three-Phase: 11.28 KW - 14.10 kVA
Continuous use power Three-Phase: 10.18 KW - 12.72 kVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 403D-15G
Starting: Electric
Consumption: 3.6 Lt/h at 100% of load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 550 Kg
Compound
Exhaust gas emission level: Not regulated

Sockets:
N.1 3P+N+T CEE 400V 32A
N.1 3P+N+T CEE 400V 16A
N.2 2P+T CEE 230V 16A
N.1 230V 16A SCHUKO

The PRAMAC GBW15P generator is a professional diesel generator developed by Pramac with the features and equipment needed to obtain a top-class product. Superior. The PRAMAC GBW15P generator, with its low noise level, is the ideal generator for use in residential areas or during non-working hours. The GBW15P generator is equipped with a reliable diesel engine, top-quality components, and comprehensive instrumentation. If you are looking for a generator like the PRAMAC GBW15P THREE-PHASE generator, we recommend browsing our catalog of terrestrial generators to find the one that best suits your needs.
