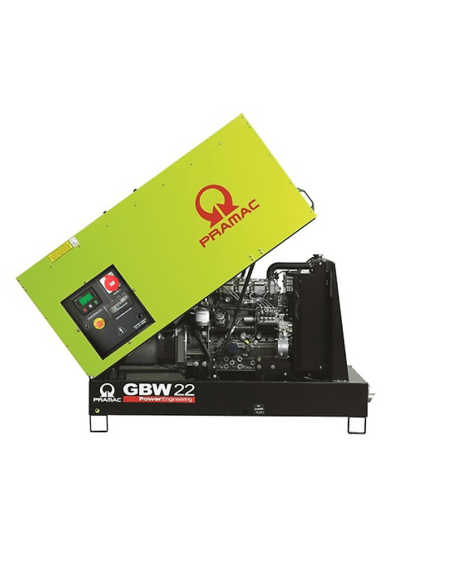

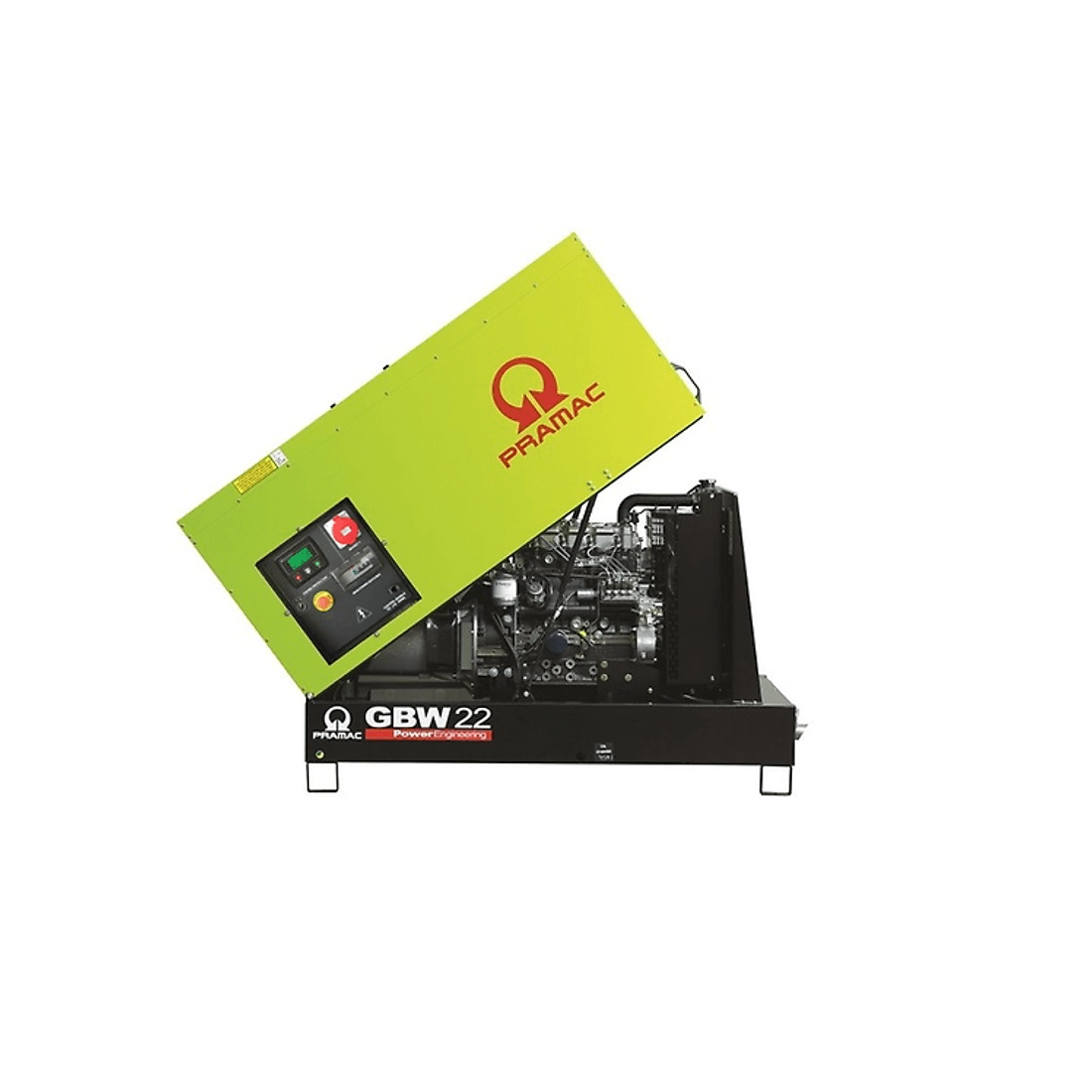

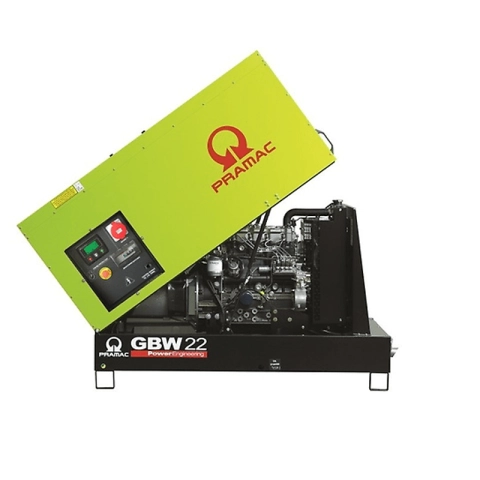

PRAMAC GBW22P Generator Set ACP Three-phase 17.4KW Enclosed with automatic control panel

Name: PRAMAC GBW22P Generator Set ACP Three-phase 17.4KW Enclosed with automatic control panel
Brand: PRAMAC
SKU: SB200TPAL02
Price: 8937.34 EUR
Availability: InStock

Reference SB200TPAL02

Phase type: Three-phase
Continuous power: 19.78 kVA - 15.82 kW
Maximum power: 21.82 kVA - 17.46 kW
Engine: Perkins 404A-22G1
Emission standard: Stage 0
Engine speed: 1500 rpm
Starting system: Electric / Automatic
Fuel: Diesel
Terminal voltage: 400 V
Frequency: 50 Hz
Voltage regulator: Compound
Socket panel: 1 x 400V CEE 32A | Terminal board
Fuel tank capacity: 51 l
Fuel consumption at 75% load: 3.98 l/h
Autonomy at 75% load: 12.81 h
Sound pressure: 66 dB(A) @ 7 m
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Dry weight: 565 kg

Download Scheda tecnica GBW22P COFANATO Download Technical data GBW22P COVERED Download Disegno installazione GBW22P

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 17.46
Continuous power three phase (KW): 15.42
Maximum power three phase (KVA): 21.82
Continuous power three phase (KVA): 19.78
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration
Engine: Yanmar L70N
Emissions Regulations: Stage 0
Speed governor: Mechanical
Starting system: Elettrico / Automatico
Engine capacity (cm³): 2216
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10.6
Cooling: Water
Alternator: Linz E1S13MF, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 4 at 75% of the load / 5.3 at 100% of the load
Running time (h): 12.8 at 75% of the load / 9.7 at 100% of the load
Acoustic power: 95 dB(A)
Acoustic pressure: 66 dB(A) at 7 m
Length (mm): 1645
Width (mm): 870
Height (mm): 1072
Dry weight (Kg): 565
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: Compound
Engine manufacturer: Perkins

Brand

PRAMAC GBW22P GENERATORE SET ACP THREE-PHASE 17.4KW

The PRAMAC GBW22P three-phase generator is equipped with a Perkins 404A-22G1 diesel engine and is capable of delivering a maximum power output of 20 kVA.

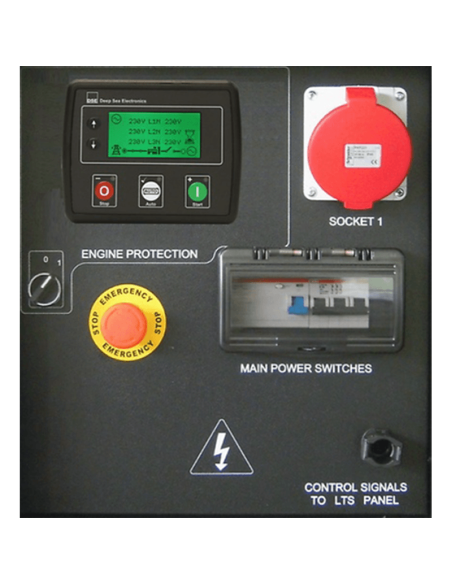

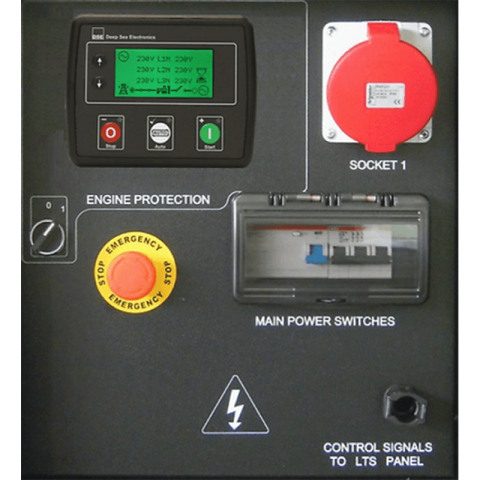

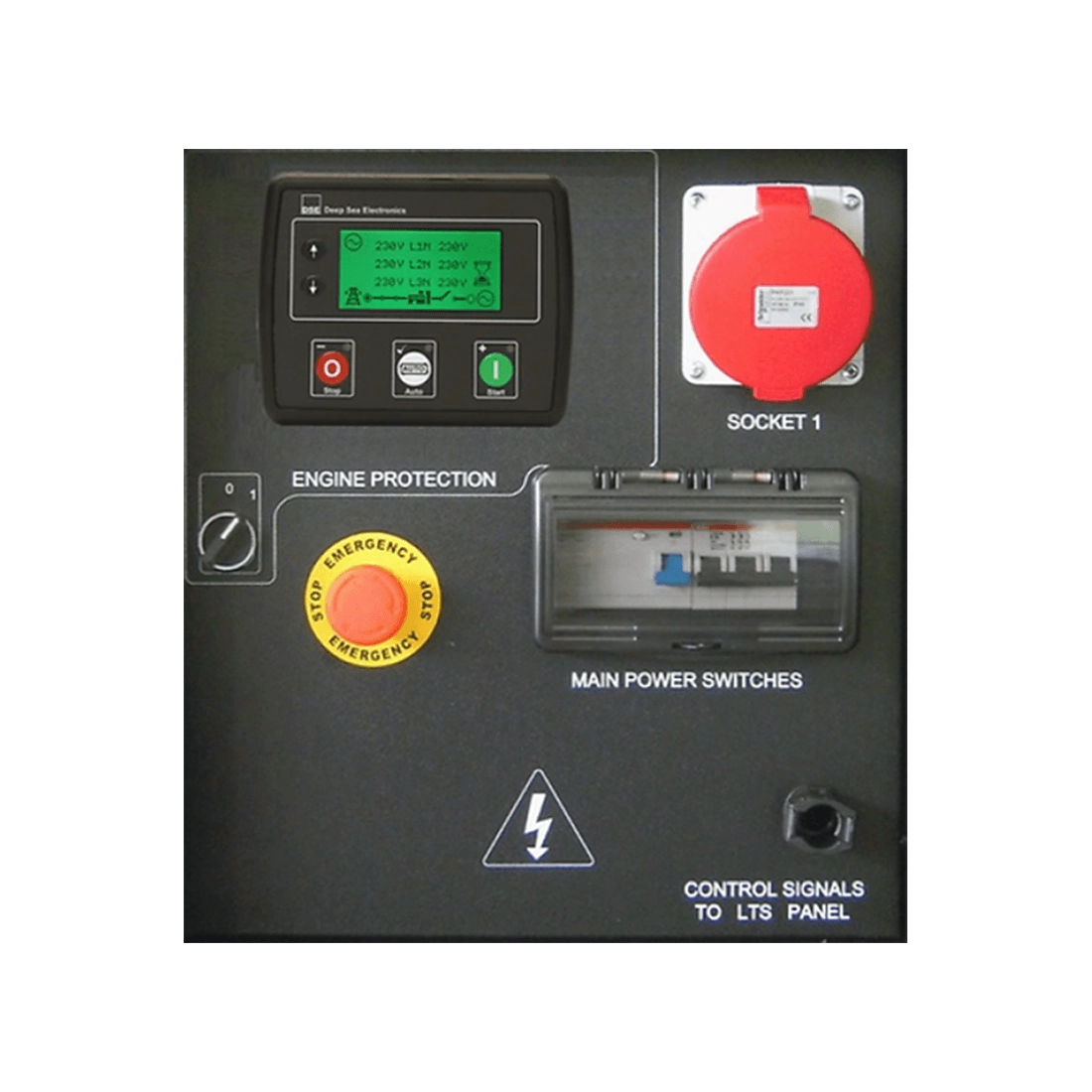

The PRAMAC GBW22P generator features electric, manual, or automatic starting with a 12 V battery, and is equipped with a Deep Sea control unit that allows you to view all engine and generator electrical parameters, functions, generator status, fully manage the unit, and display any system errors or alarms if they occur.

The PRAMAC GBW22P generator ensures efficient and quiet operation thanks to the Perkins 404A-22G1 engine, capable of delivering a maximum power of 20 kVA.

AUTOMATIC TRANSFER SWITCH (ATS) PANEL READY

The generator is pre-arranged for the use of an automatic transfer switch (ATS) panel. With this feature, you no longer have to worry about blackouts, because if the main power supply fails, the ATS panel will automatically start the generator and allow you to continue your activity without losing your work data.

Standard Equipment:

LINZ alternators with Compound regulation
Tiltable canopy with gas springs
Residential-grade silencer
Lifting hook
Forkable base with wheels
Engine fluids and battery
Oil extraction piping

TECHNICAL SPECIFICATIONS PRAMAC GBW22P ACP THREE-PHASE:
Phase type: Three-phase
Continuous power: 19.78 kVA - 15.82 kW
Maximum power: 21.82 kVA - 17.46 kW
Engine: Perkins 404A-22G1
Emission standard: Stage 0
Engine speed: 1500 rpm
Starting system: Electric / Automatic
Fuel: Diesel
Terminal voltage: 400 V
Frequency: 50 Hz
Voltage regulator: Compound
Socket panel: 1 x 400V CEE 32A | Terminal board
Fuel tank capacity: 51 l
Fuel consumption at 75% load: 3.98 l/h
Autonomy at 75% load: 12.81 h
Sound pressure level: 66 dB(A) @ 7 m
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Dry weight: 565 kg

Are you looking for a generator similar to the PRAMAC GBW22P THREE-PHASE but with different technical features? CLICK HERE to explore our dedicated section for PRAMAC generators or other specialized brands.
