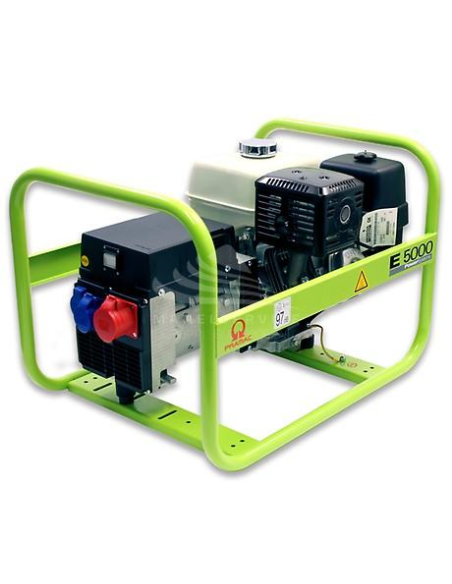

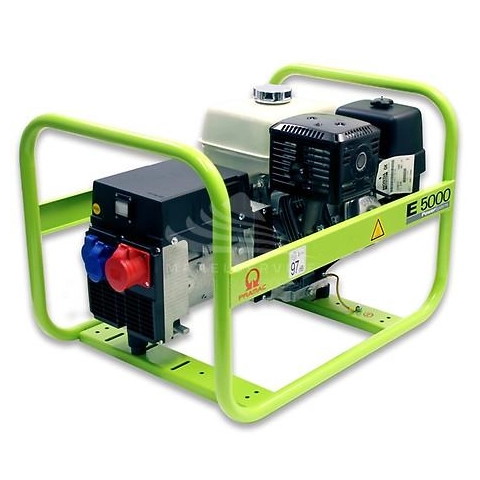

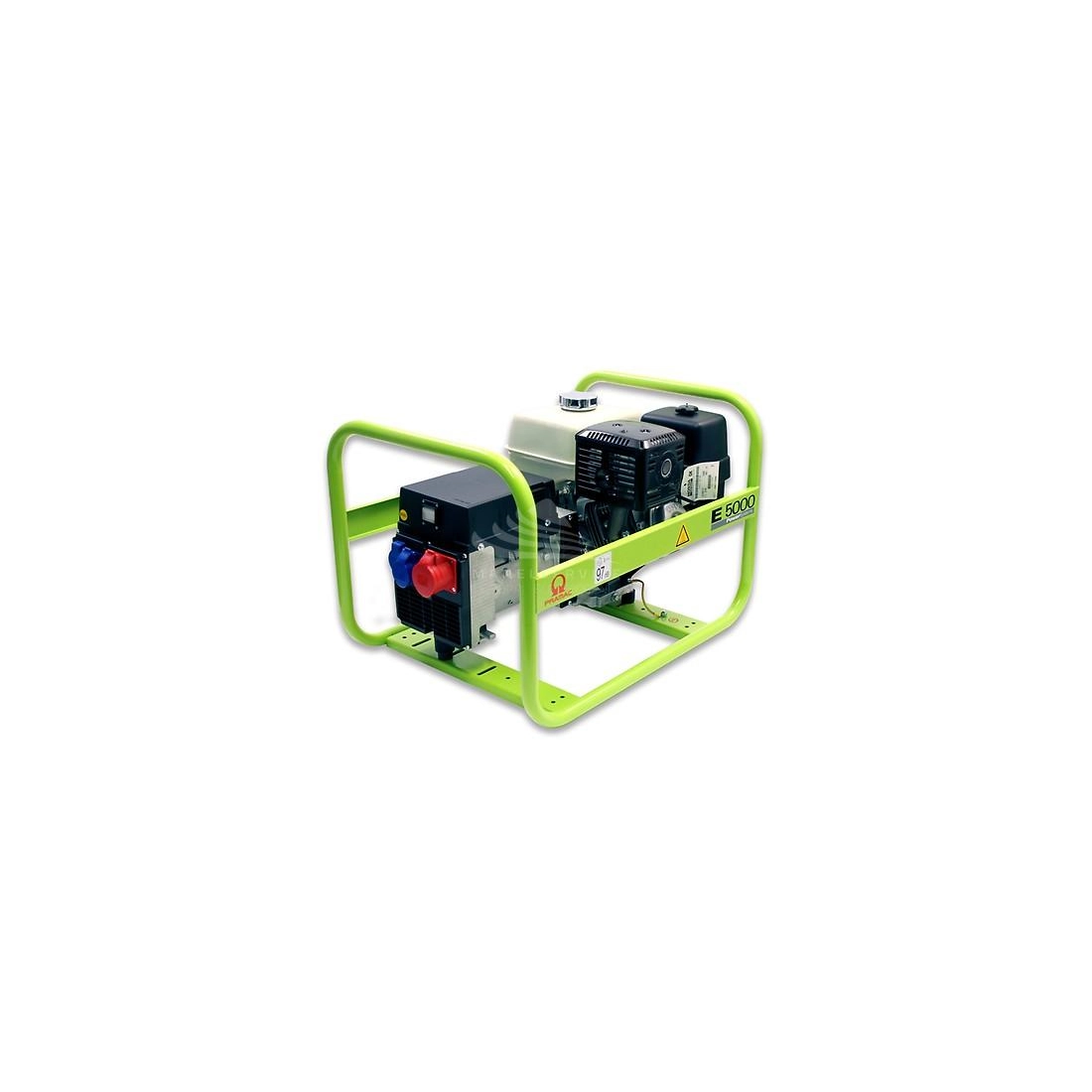

PRAMAC E5000 THREE PHASE

Name: PRAMAC E5000 THREE PHASE
Brand: PRAMAC
SKU: PA542TH1000
Price: 1319.05 EUR
Availability: InStock

Reference PA542TH1000

Maximum power Single-phase: 3.04 KW
Power continuous use Single-phase: 2.8 KW
Maximum power Three-phase: 5 KW
Power continuous use Three-phase: 4.3 KW
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX270 Recoil
Starting: Tear-off
Consumption: 2.2 Lt/h at 100% of load
Length: 715 mm
Width: 540 mm
Height: 490 mm
Weight: 70 Kg
Compound

Download Scheda tecnica E5000 Trifase Download Technical data E5000 Threephase

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.04
Continuous power single phase (KW): 2.8
Maximum power single phase (KVA): 3.8
Continuous power single phase (KVA): 3.5
Maximum power three phase (KW): 5
Continuous power three phase (KW): 4.3
Maximum power three phase (KVA)
Continuous power three phase (KVA): 5.4
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE IP44 - 1 x 230V 16A SCHUKO IP54 - 1 x 230V 16A 2P+T CEE IP44
Engine: Honda GX270 Recoil, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Ignition: Recoil
Starting system: Pull starter
Engine capacity (cm³): 270
Oil capacity (L): 1.1
Cooling: Air
Alternator: With brushes
Poles: 2
Fuel tank capacity (L): 5.3
Consumption (L/h): 1.6 at 75% of the load / 2.2 at 100% of the load
Running time (h): 3.2 at 75% of the load / 2.4 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 69 dB(A) at 7 m
Length (mm): 715
Width (mm): 540
Height (mm): 490
Dry weight (Kg): 70
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: Compound
Engine manufacturer: Honda

Brand

Motore benzina Honda GX. Raffreddamento ad aria. Protezione Oil Guard. Avviamento a strappo. Alternatore sincrono. Robusta struttura con telaio tubolare portante. Prese su cuffia con protezioni termiche

L'immagine è puramente indicativa
