GENERATOR FISCHER PANDA 7,5-4 PMS

FISCHER PANDA MARINE GENERATOR 7.5-4PMS SUPERSILENCED 7,6 KVA

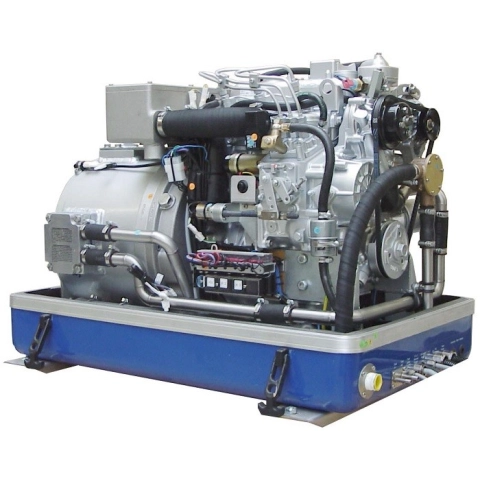

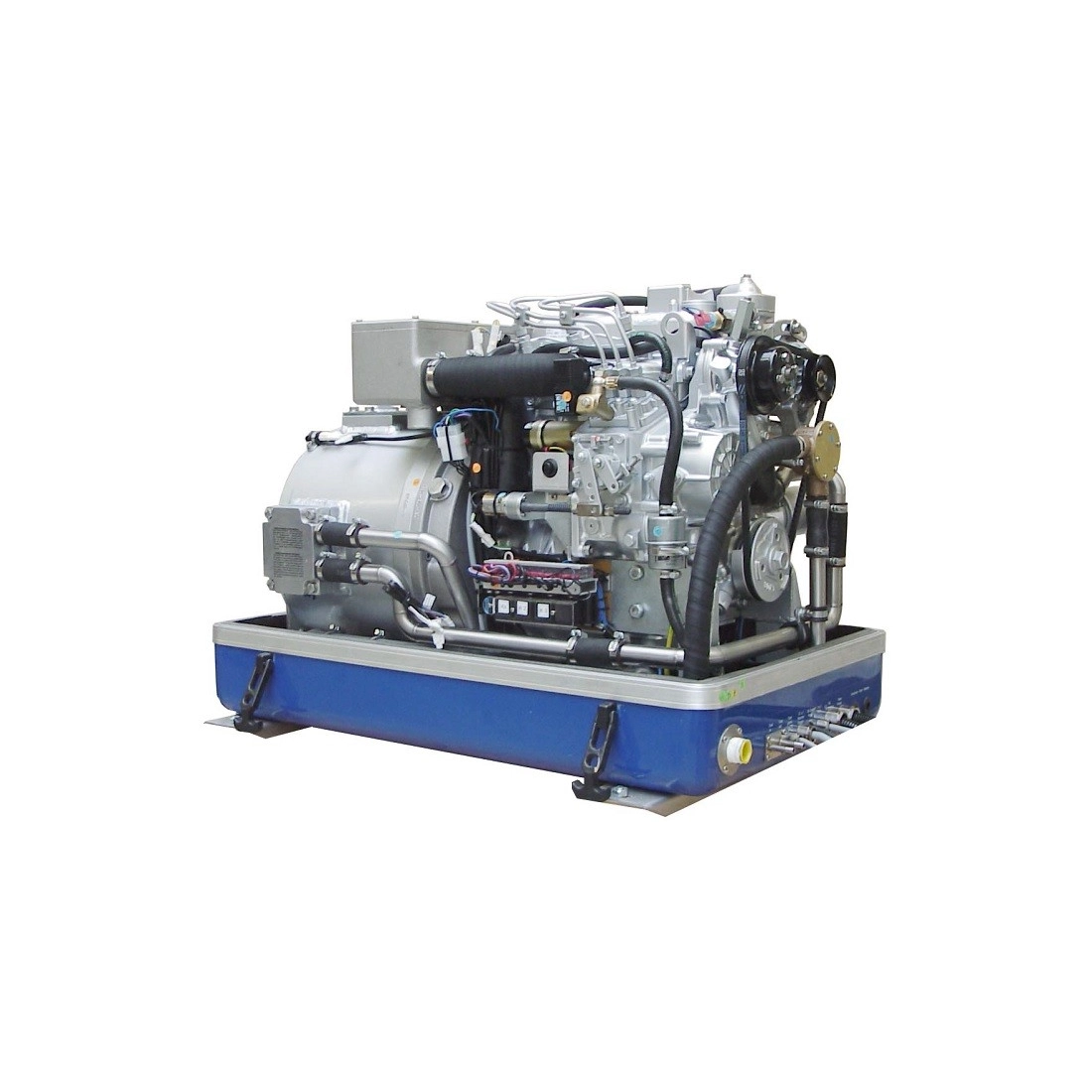

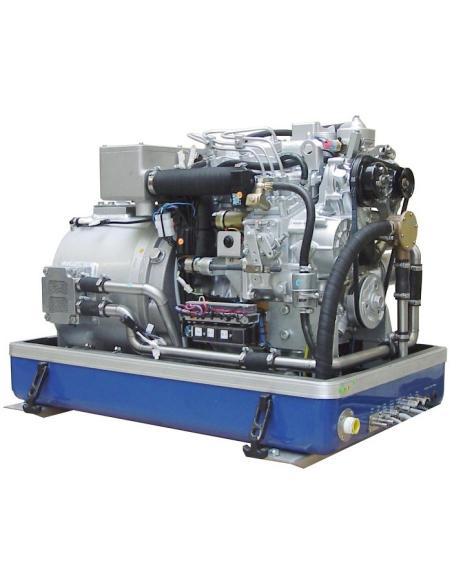

Generator for boats Fischer Panda 7,5-4PMS single phase 7,6 KVA with 1500 rpm motor. The Fischer Panda 7.5-4PMS generator is built with a soundproofing capsule that significantly reduces noise emissions making it super-silent. The Fischer Panda 7.5-4PMS generator is built with a Kubota diesel-powered engine. The Fischer Panda 7.5-4PMS marine generator alternator is 4-pole with H insulation class. With its compact size and low weight, the Fischer Panda 7.5-4PMS generator is also suitable for installation on small boats.

Data of the Fischer Panda 7.5-4PMS single phase generator 7.6 KVA:

Phase Type: Single-phase
Maximum Output: 6.5 kW
Continuous Output: 5.8 kW
Maximum Output: 7.6 kVA
Continuous Output: 6.8 kVA
Frequency: 50 Hz
Voltage: 230 V
Engine rpm: 1500 rpm
Dispacement: 1123 cc.
Cooling: Water
Sound Cover Type: GFK (Glass fibre reinforced polyester)
Sound pressure: 52 dB(A) at 7 m
Length: 830 mm
Width: 515 mm
Height: 627 mm
Dry weight: 278 Kg

Based on the rugged Fischer Panda 7.5-4PMS marine generator set, these heavy duty (HD) versions operate at 1500 rpm / 50Hz.
The Fischer Panda 7.5-4PMS marine generator is enclosed in a super quiet soundproofed capsule.
The generators Fischer Panda are heavier than standard PMS generators. They use a heavy-duty diesel engine and because they run at 1500 rpm, they have a 4-wire coil, which also means that the alternator has a heavier 4-pole construction.
The heavy-duty construction and low rpm results in a durable and quiet generator set.

If you are looking for a marine generator set like the Fischer Panda 7.5-4PMS but with different technical features then you can browse the entire marine generator catalogue.

Images and technical data are not binding.
