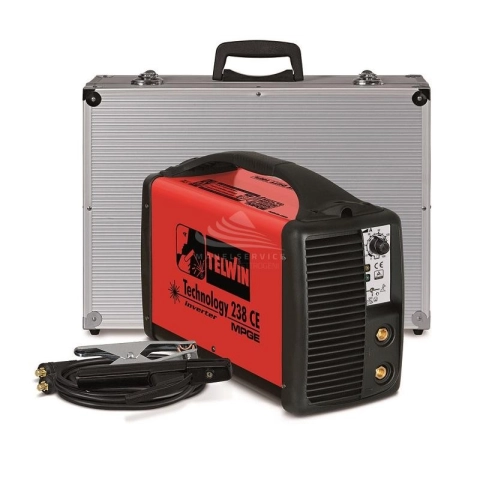

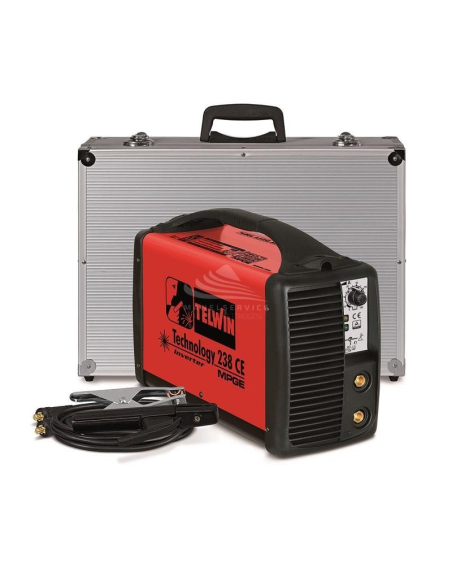

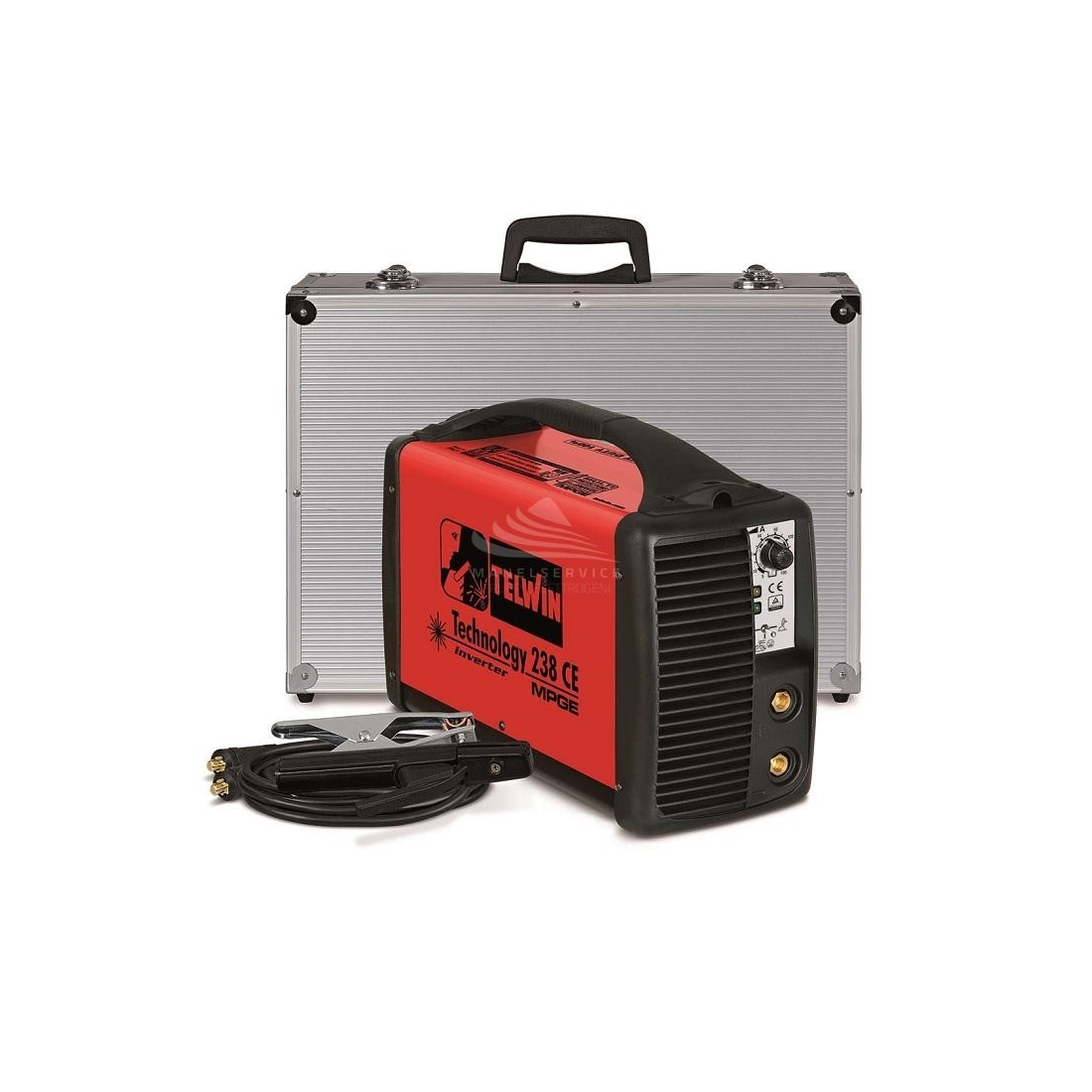

TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE

Name: TELWIN TECHNOLOGY 238 CE/MPGE 230V ACX ALUMINIUM CARRY CASE
Brand: TELWIN
SKU: 816252

Reference 816252

DISCONTINUED PRODUCT

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 102 V
Regulation current: 5 - 180 A
Current max: 180 A
Diameter electrodes: 1.6 - 4 mm
Length: 465 mm
Width: 185 mm
Height: 355 mm
Weight: 10.1 Kg

Download Manual TECHNOLOGY Download Scheda tecnica TECHNOLOGY 238 Download Technical data TECHNOLOGY 238 Download Ficha técnica TECHNOLOGY 238 Download Fiche technique TECHNOLOGY 238

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 84
Protection degree: IP23
Maximum permissible current (A): 36
No-load voltage (V): 102
Regulation current (A): 5 - 180
Diameter electrodes (mm): 1.6 - 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 180
Length (mm): 465
Width (mm): 185
Height (mm): 355
Voltage regulator: Inverter
Weight (Kg): 10.1

EAN13: 8004897828732

Brand

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel and cast iron electrodes with diameter up to 4 mm.
It can be connected to motorgenerators.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Regulation of arc force and hot start according to the type of electrode in use
- Anti-stick device
- Thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with MMA welding accessories and aluminium carry case.

Not binding images and technical data.
