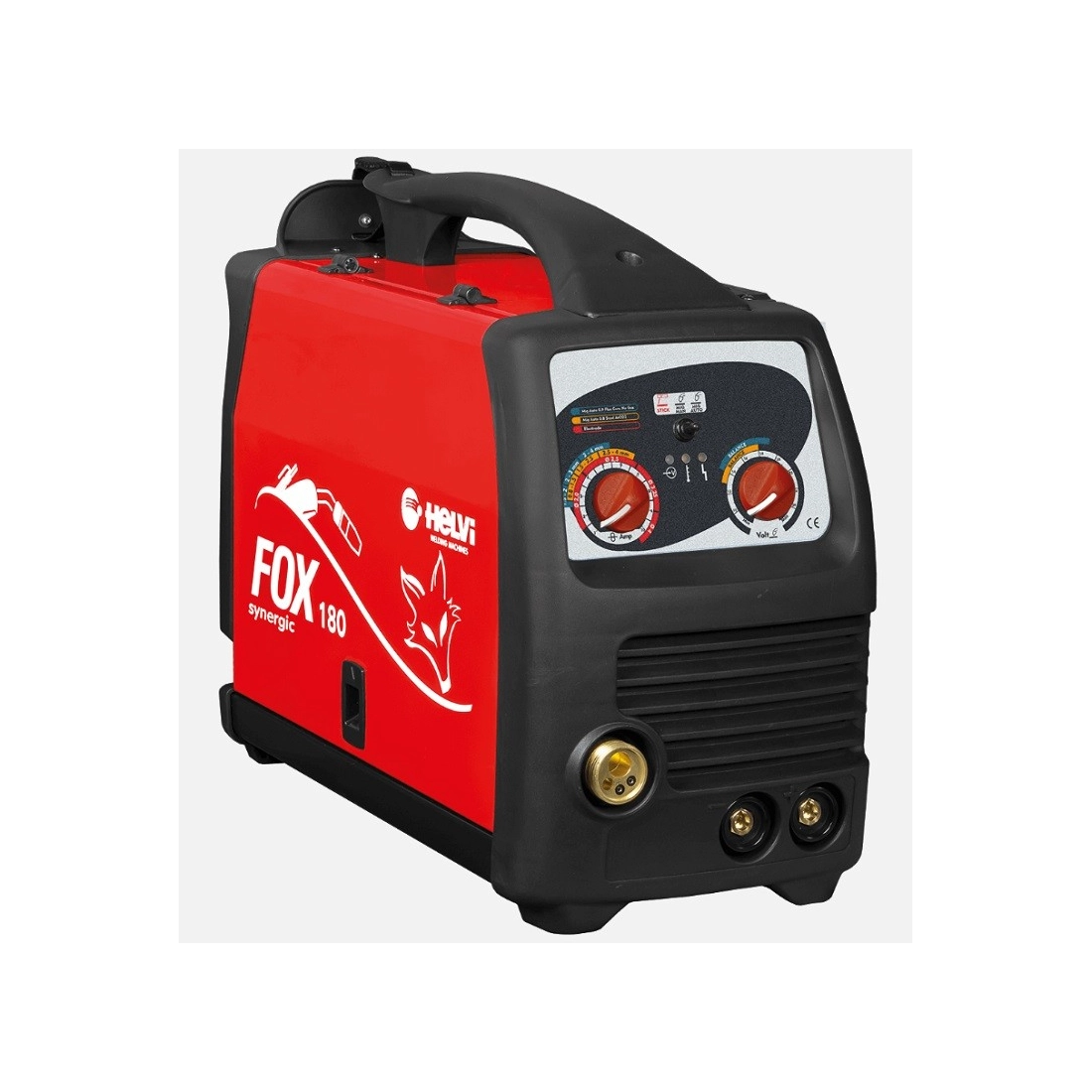

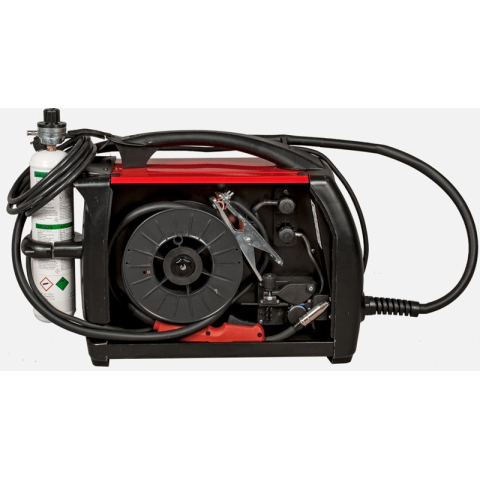

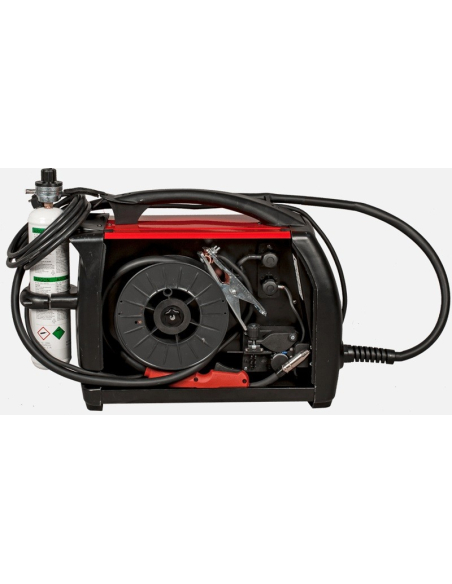

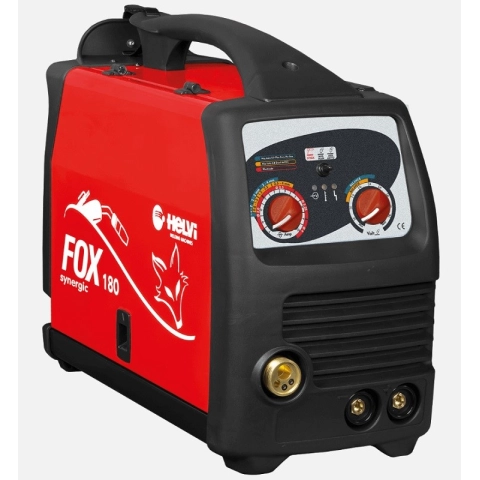

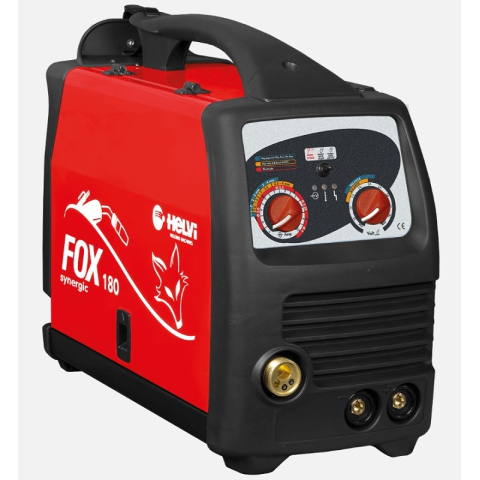

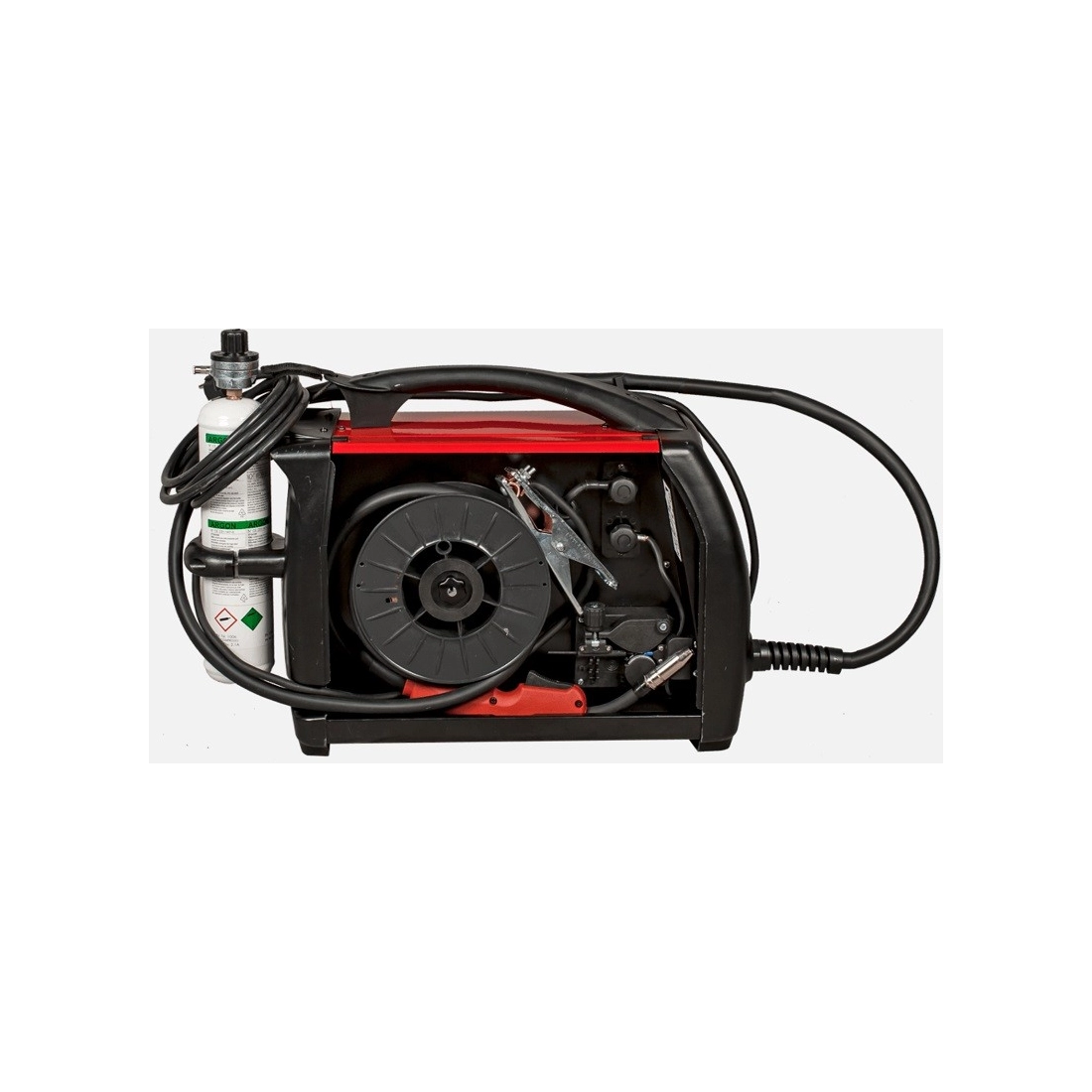

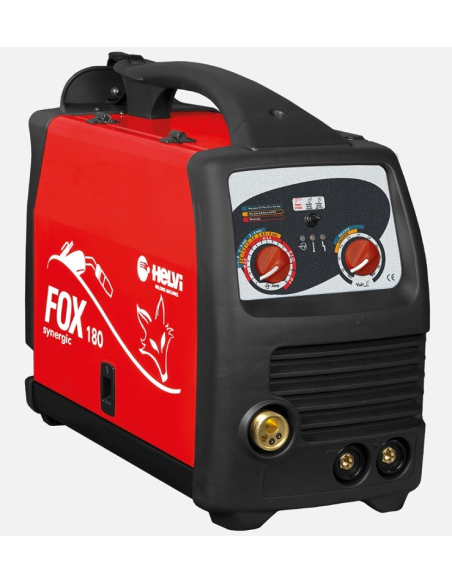

HELVI FOX 180S Inverter Multiprocess MMA-MIG Welder 3.5 kVA
99820009
OUT OF PRODUCTION
Phase type: Single-phase
Frequency: 50/60 Hz
Voltage: 230 V
Power: 3.5 kVA @ 60%
Welding Type: MMA-MIG
No-load voltage: 25 ÷ 39 V
Current regulation: 25 - 170 A
Maximum current: 170 A
Amp. 60974-1: 25% 170 A - 60 % 110 A - 100% 85 A
Electrode type: 6013 (rutile)
Electrode Diameter: 1.6 - 3.25 mm
Steel wire diameter: 0.6 - 1 mm
Stainless steel wire diameter: 0.8 - 1 mm
Aluminium wire diameter: 0.8 - 1 mm
Flux-core diameter: 0.8 - 1 mm
Brazing diameter: 0.8 - 1 mm
Insulation: H
Degree of protection: IP22S
Length: 480mm
Width: 220 mm
Height: 385 mm
Weight: 11.5 Kg
- Phase
- Single phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230
- Cooling
- Air
- Protection degree
- IP22S
- Motor insulation class
- H
- No-load voltage (V)
- 39
- Regulation current (A)
- 18 - 45
- Welding current (A)
- 290
- Amp. 60974-1 (40°)
- 85 A @ 100% 110 A @ 60% - 170 A @ 25%
- Diameter electrodes (mm)
- 1 - 3.5
- Maximum diameter electrodes (mm)
- 3.25
- Ø steel welding wire (mm)
- 0.6 - 1
- Ø inox welding wire (mm)
- 0.8 - 1
- Ø aluminium welding wire (mm)
- 0.8 - 1
- Ø flux cored welding wire (mm)
- 0.8 - 1
- Ø brazing wire (mm)
- 0.8 - 1
- Type of welding current
- DC
- Type of welding
- Multiprocess
- MIG-MAG welding
- MIG-MAG/FLUX/BRAZING
- Maximum wire diameter (mm)
- 1
- Current max (A)
- 170
- Power consumption (W)
- 2800
- Length (mm)
- 480
- Width (mm)
- 220
- Height (mm)
- 385
- Voltage regulator
- Inverter
- Weight (Kg)
- 11.5
- Video
- xiDObKywLgs
- Brand
-
MAIN FEATURES:
- Inverter technology
- Automatically compensates for grid imbalances
- Lightness and versatility
- Convenient patented torch holder and cable holder
- Easy adjustment thanks to reference scales
- Excellent results even for inexperienced welders
- Suitable for use with generator (10 kVA recommended)
Images and technical data are not binding.
