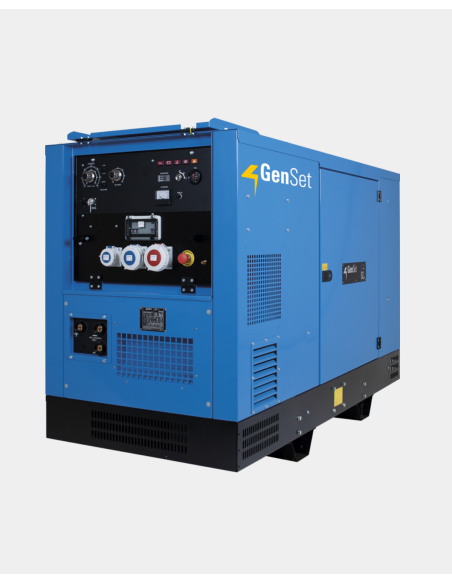

GENSET PMPM 20/600 SS-Y Motorized welder 20KVA

Name: GENSET PMPM 20/600 SS-Y Motorized welder 20KVA
Brand: Man.El Service
SKU: MPM 20/600 SS-Y
Price: 14300 EUR
Availability: OutOfStock

Reference MPM 20/600 SS-Y

Phase type: Single-phase / Three-phase
Maximum single-phase power (KVA): 6.6
Maximum three-phase power (KVA): 20
Fuel: Diesel
Voltage (V): 230 / 400
Socket configuration: 1 three-phase CEE socket 32 ??A, 400 V A - 50 Hz, 1 single-phase CEE socket 32 ??A, 230 V - 50 Hz, 1 single-phase CEE socket 16 A, 230 V - 50 Hz
Engine: Yanmar 4TNV98T
Engine speed (rpm): 1500
Starting: Electric
Displacement (cm³): 3319
Number of cylinders: 4
Cooling: Water
Alternator: Asynchronous
Voltage Starting current (V): 70
Fuel tank capacity (L): 70
Consumption (L/h): 8.1 at 75% load
Sound power: 90 Lwa
Product dimensions (cm): 2015 x 900 x 1300
Dry weight (Kg): 975
Silenced: Yes
Output socket: single-phase 48 V
Adjustment range: 30 A - 600 A
Intermittent duty at 60%: 600 A - 40 V

Download Scheda MPM20/600SS-Y

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KVA): 6.6
Maximum power three phase (KVA): 20
Fuel: Diesel
Voltage (V): 230 / 400
Sockets configuration: 1 three-phase CEE socket 32 ??A, 400 V A - 50 Hz, 1 single-phase CEE socket 32 ??A, 230 V - 50 Hz, 1 single-phase CEE socket 16 A, 230 V - 50 Hz
Engine: YANMAR 4TNV98T
Engine rpm (rpm): 1500
Starting system: Elettrico
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Water
Alternator: Asincrono
Open circuit voltage (V): 70
Fuel tank capacity (L): 70
Consumption (L/h): 8.1 at 75% load
Acoustic power: 90 Lwa
Dry weight (Kg): 975
Silenced: Yes
Output socket: single-phase 48 V
Intermittency at 60%: 600 A - 40 V
Product Dimensions (cm): 2015 x 900 x 1300
Adjustment range: 30 A - 600 A

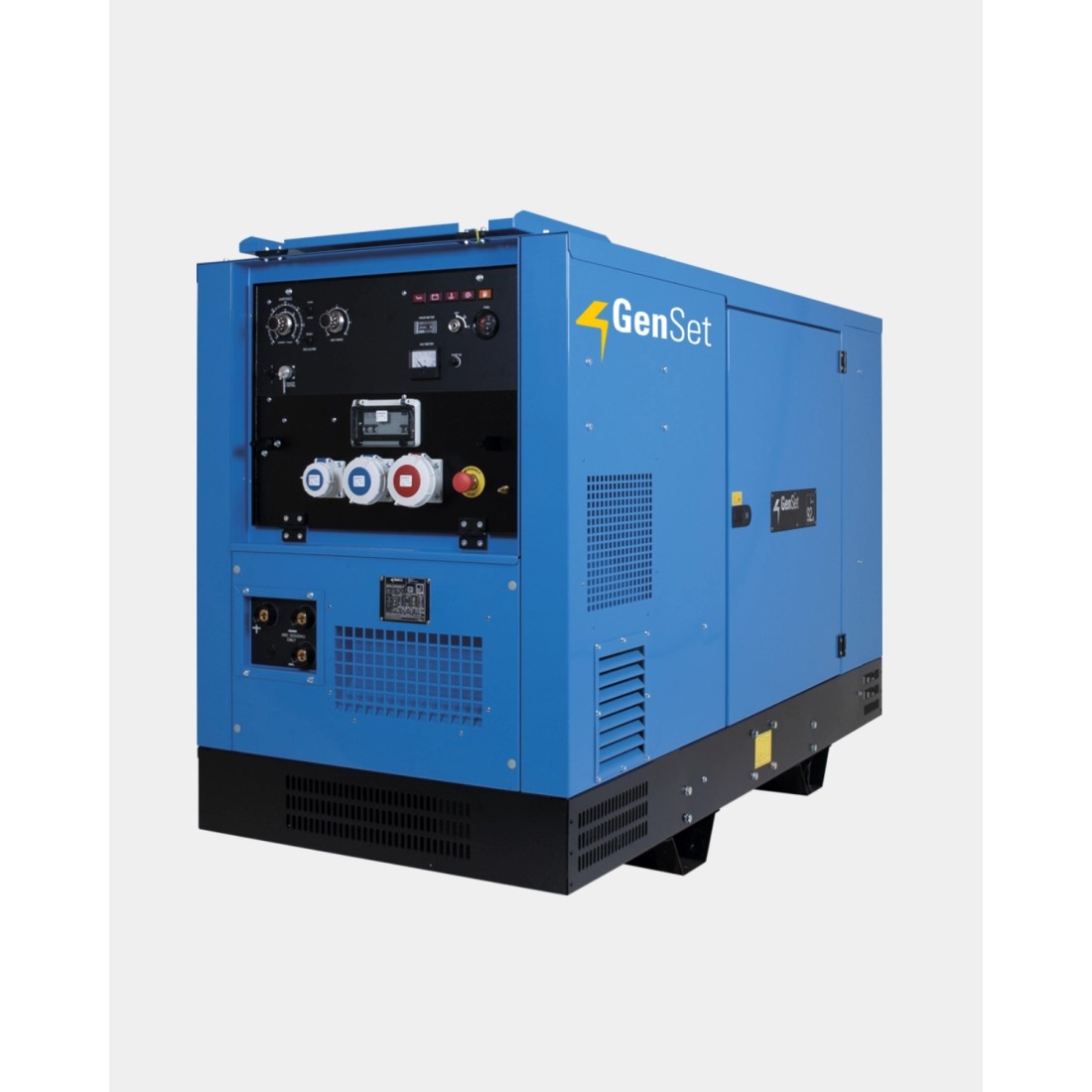

GENSET MPM 20/600 SS-Y 20KVA Welder

Single-phase/three-phase diesel generator set with Yanmar 4TNV98T water-cooled engine, 4 cylinders,
displacement 3319 cm³, 1500 rpm and electric start.

Maximum single-phase power 6.6 kVA, three-phase 20 kVA at 230/400V; 70 L tank, consumption 8.1 L/h at 75% (silent 90 Lwa),
dimensions 2015x900x1300 cm, dry weight 975 kg.

Welding output 48V (30-600A, intermittent 60% at 600A-40V) with automatic motor stop, double current regulation,
arc force, hour meter, voltmeter, differential switch, socket protections; Three-phase CEE sockets 32A 400V, single-phase 32A/16A 230V,
remote control ready, emergency stop, fuel level, lifting hook, fork pockets, battery included.

Technical Features:

Phase type: Single-phase / Three-phase
Maximum single-phase power (KVA): 6.6
Maximum three-phase power (KVA): 20
Fuel: Diesel
Voltage (V): 230 / 400
Socket configuration: 1 three-phase CEE socket 32 ??A, 400 V A - 50 Hz, 1 single-phase CEE socket 32 ??A, 230 V - 50 Hz,
1 single-phase CEE socket 16 A, 230 V - 50 Hz
Engine: Yanmar 4TNV98T
Engine speed (rpm): 1500
Starting: Electric
Displacement (cm³): 3319
Number of cylinders: 4
Cooling: Water
Alternator: Asynchronous
Starting voltage (V): 70
Fuel tank capacity (L): 70
Consumption (L/h): 8.1 at 75% load
Sound power: 90 Lwa
Product dimensions (cm): 2015 x 900 x 1300
Dry weight (Kg): 975
Silenced: Yes
Output socket: single-phase 48 V
Adjustment range: 30 A - 600 A
Intermittent duty at 60%: 600 A - 40 V
