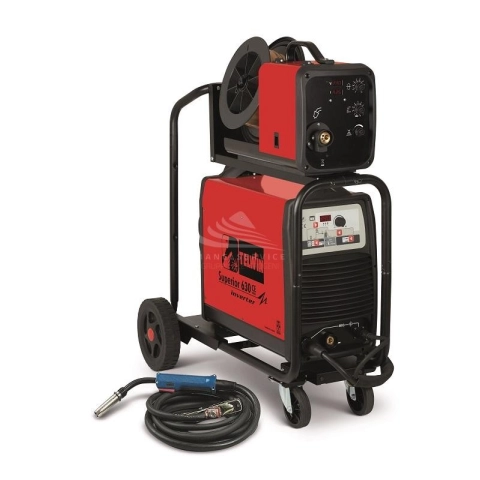

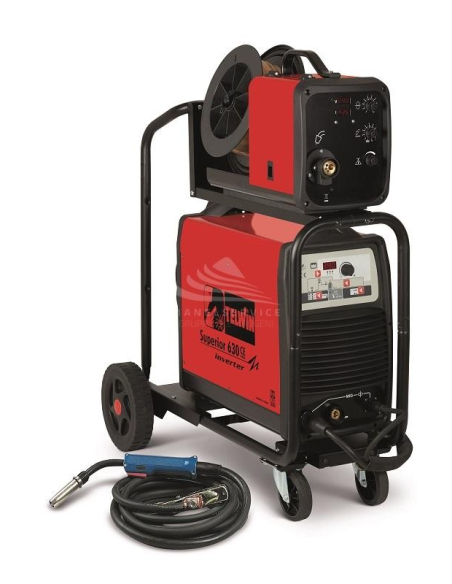

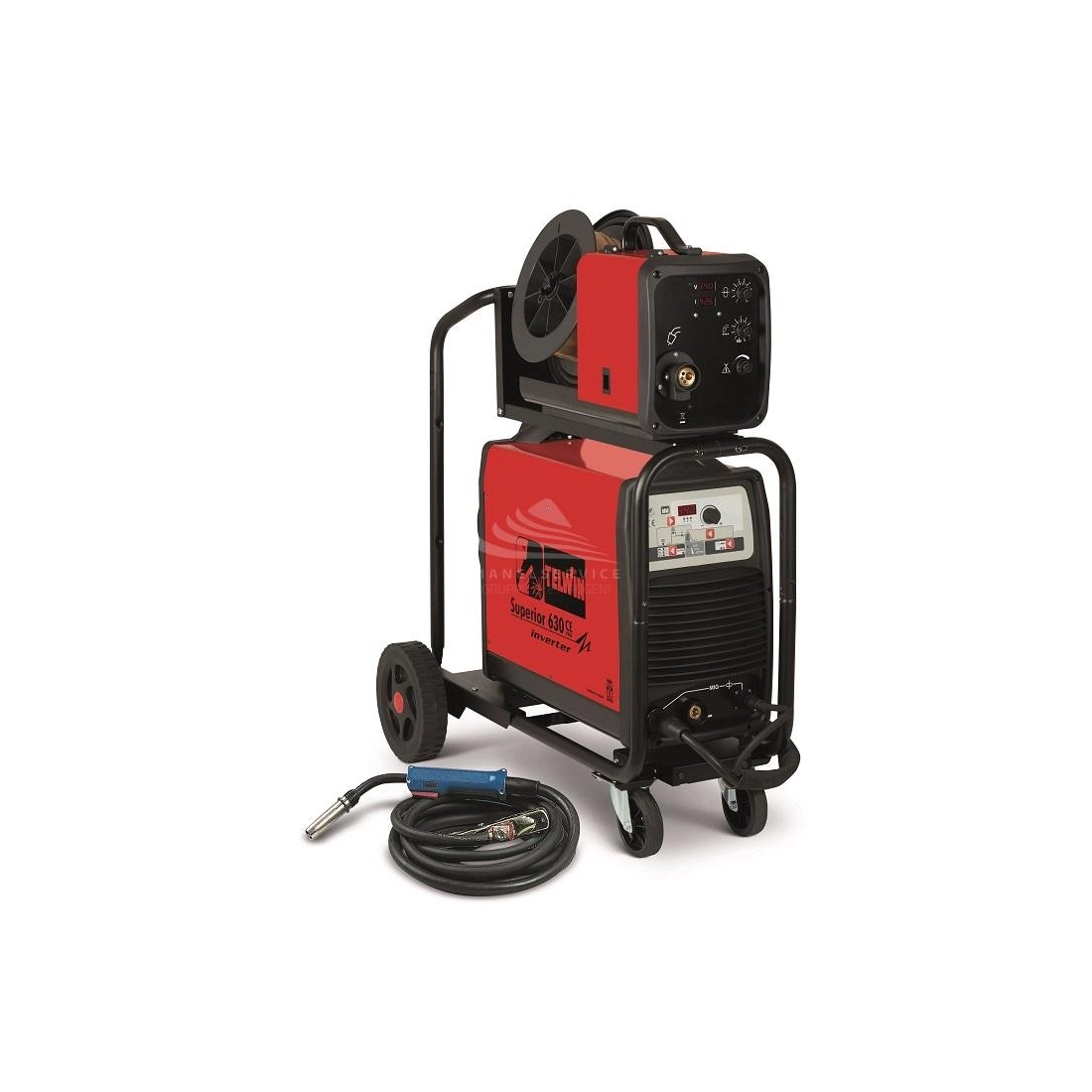

TELWIN SUPERIOR 630 CE VRD MIG PACK 230-400V
816043
OUT OF PRODUCTION
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/MMA/TIG DC-Lift
No-load voltage: 65 / 73 V
Regulation current: 10 - 450 / 10 - 600 A
Current max: 400 / 500 A
Diameter electrodes: 1.6 - 8 mm
Steel welding wire diameter: 0.6 - 2.4 mm
Inox welding wire diameter: 0.8 - 2.4 mm
Aluminium welding wire diameter: 0.8 - 1.6 mm
Flux cored welding wire diameter: 1 - 2.4 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 950 mm
Width: 450 mm
Height: 1450 mm
Weight: 86 Kg
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Efficiency (%)
- 86
- Protection degree
- IP23
- No-load voltage (V)
- 65 / 73
- Regulation current (A)
- 10 - 450 / 10 - 600
- Diameter electrodes (mm)
- 1.6 - 8
- Ø steel welding wire (mm)
- 0.6 - 2.4
- Ø inox welding wire (mm)
- 0.8 - 2.4
- Ø aluminium welding wire (mm)
- 0.8 - 1.6
- Ø flux cored welding wire (mm)
- 1 - 2.4
- Ø brazing wire (mm)
- 0.8 - 1.2
- Type of welding
- Multiprocess
- MIG-MAG welding
- MIG-MAG/FLUX
- Current max (A)
- 400 / 500
- Length (mm)
- 950
- Width (mm)
- 450
- Height (mm)
- 1450
- Voltage regulator
- Inverter
- Weight (Kg)
- 86
- EAN13
- 8004897948386
- Brand
-
High power MIG-MAG/FLUX/MMA/TIG multi-process inverter generator suitable for heavy duty use on worksites and industrial environments.
MIG-MAG/TIG welding of all types of steels and steel by-products and MMA welding of all types of electrodes up to 8 mm in diameter.
The optional removable wire feeder and connection cables make it possible to increase the field of intervention.
Compactness and easy transport features guarantee high levels of mobility and flexibility of use.
Complete with wirefeeder, MIG-MAG welding accessories and trolley.
Not binding images and technical data.
