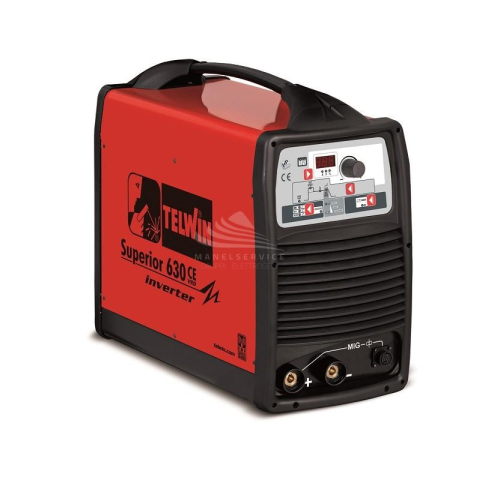

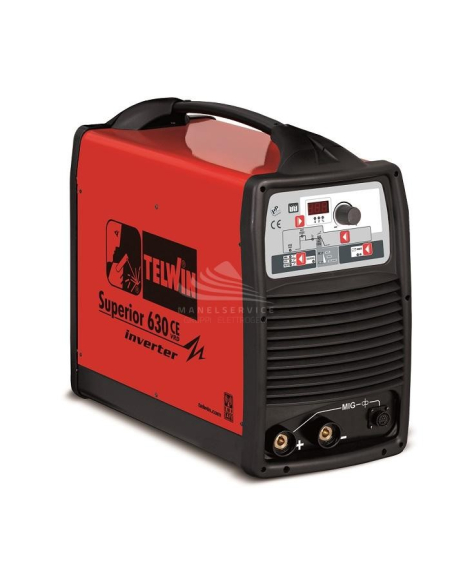

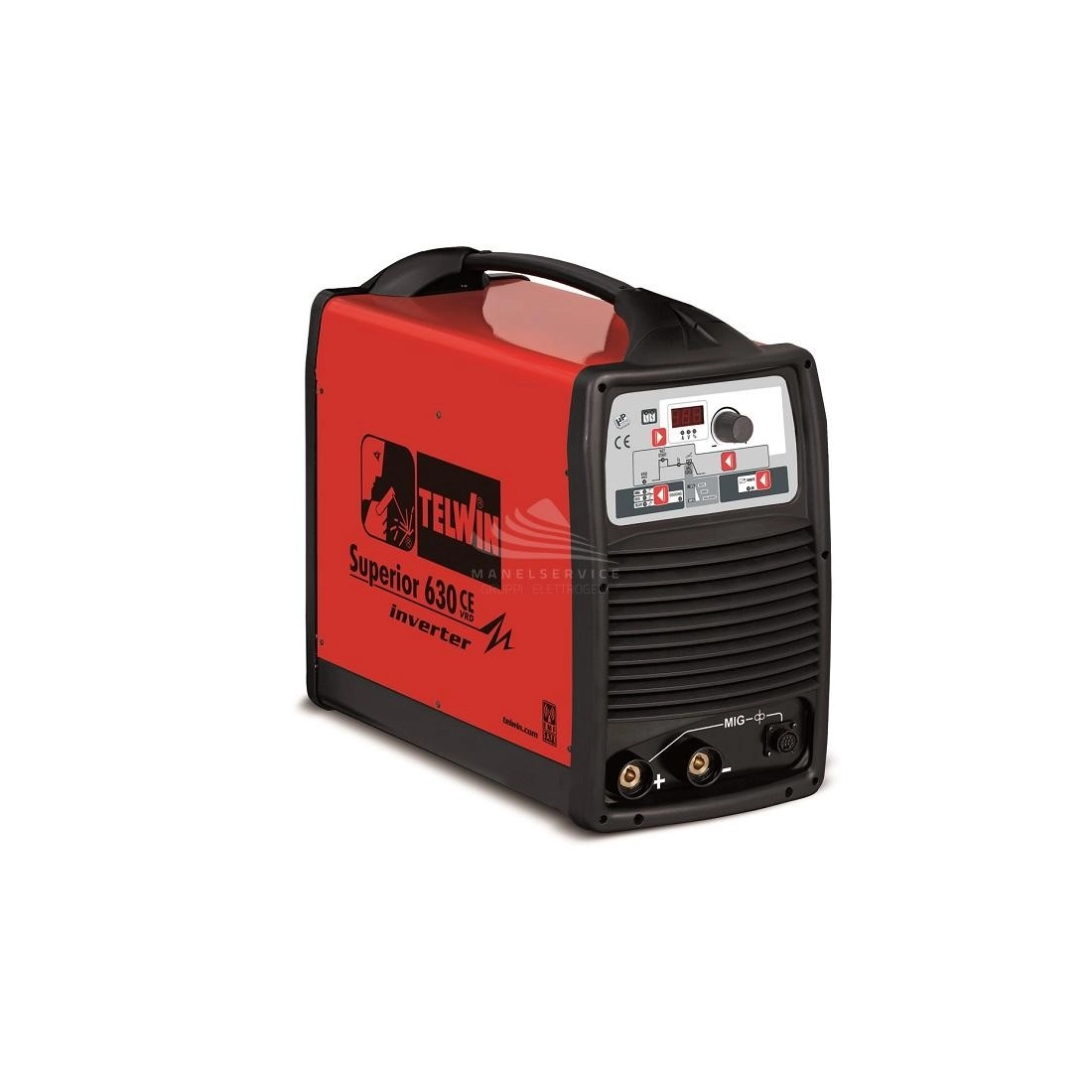

TELWIN SUPERIOR 630 CE VRD 230-400V

Name: TELWIN SUPERIOR 630 CE VRD 230-400V
Brand: TELWIN
SKU: 816032

Reference 816032

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230/400 V
Type of welding current: DC
Type of welding: MMA / TIG
No-load voltage: 65 / 73 V
Regulation current: 10-450 / 10-600 A
Current max: 400 / 500 A
Diameter electrodes: 1.6 - 8 mm
Length: 670 mm
Width: 310 mm
Height: 560 mm
Weight: 43 Kg

Download Manual SUPERIOR 400-630 Download Scheda tecnica SUPERIOR 630 Download Technical data SUPERIOR 630 Download Ficha técnica SUPERIOR 630 Download Fiche technique SUPERIOR 630

Product Details
Description

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Efficiency (%): 86
Protection degree: IP23
Maximum permissible current (A): 44 / 35
No-load voltage (V): 65 / 73
Regulation current (A): 10 - 450 / 10 - 600
Diameter electrodes (mm): 1.6 - 8
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 400 / 500
Length (mm): 670
Width (mm): 310
Height (mm): 560
Voltage regulator: Inverter
Weight (Kg): 43

EAN13: 8004897918648

Brand

MMA,TIG-LIFT in direct current (DC), multiprocess, inverter welding machine with microprocessor control, designed for welding cellulosic electrodes and coated electrodes such as aluminium, rutile, basic, stainless steel, cast iron with diameter up to 8 mm.
Superior 630 CE VRD has the ''gouging'' function and makes it possible MIG-MAG/FLUX welding with optional feeder.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Immediate control of the welding droplets transfer
- Regulation of arc force and hot start according to the type of electrode in use
- Anti-stick device
- VRD device
- Storage on on-board E2PROM of the last 9 alarms
- Remote control connector
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

Not binding images and technical data.
